ATE Originele 2-delige remschijf (24011901131) voor BMW
€ 116,16
(incl. btw)
€ 96,00 belastingexcl.
Onderdeelnummer:
ATE 24.0119-0113.1
(240119-01131)
- Buitendiameter [mm]: 294,0
- Binnendiameter [mm]: 184,0
- Remschijfdikte [mm]: 19,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 419113
Logistieke informatie:
- Ean Code: 4006633244336
- Gewicht: 12.44kg
Specification of ATE 24.0119-0113.1 / 240119-01131 / 24011901131:
| OE Number | Reference info |
| BMW 34 21 1 166 165 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211166165 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 6 855 159 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34216855159 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 6 864 044 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34216864044 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 3 (E46) Payload not for increased payload Fitting Position Rear Axle | 2000-09 - 2005-02 | 141 | 192 | 2494 | Saloon |
| BMW 3 Touring (E46) Fitting Position Rear Axle | 2000-09 - 2005-02 | 141 | 192 | 2494 | Estate |

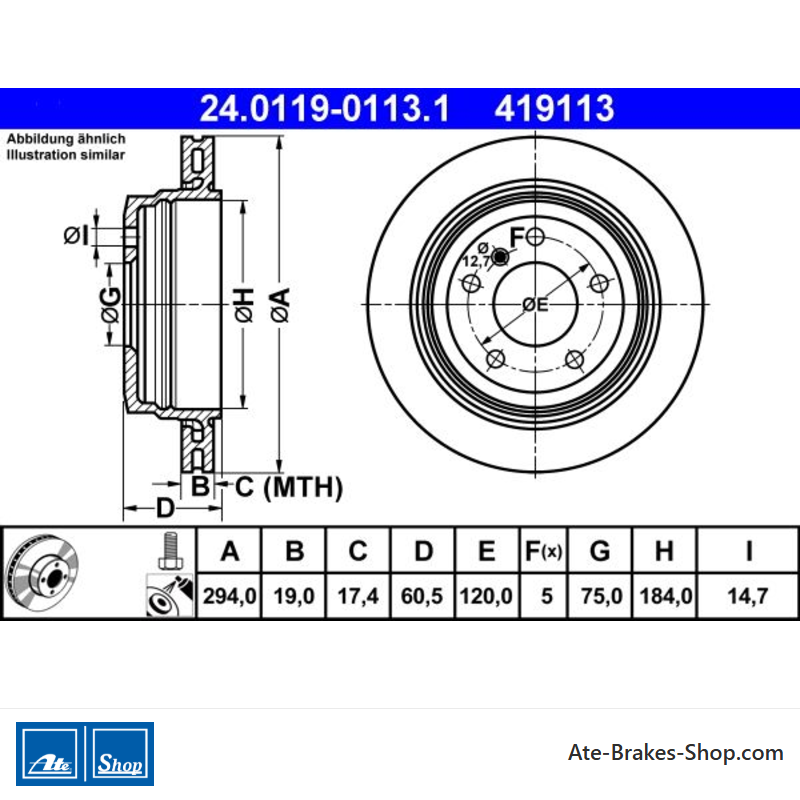

24.0119-0113.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 419113
- Land van Herkomst
- Duitsland
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 60,5
- Buitendiameter [mm]
- 294,0
- Remschijfdikte [mm]
- 19,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 75,0
- Binnendiameter [mm]
- 184,0
- Bordiameter [mm]
- 14,7
- Minimale dikte [mm]
- 17,4
Specifieke referenties
- ean13
- 4006633244336
- MPN
- 2401190113102
ATE 24.0119-0113.1
(240119-01131)
- Buitendiameter [mm]: 294,0
- Binnendiameter [mm]: 184,0
- Remschijfdikte [mm]: 19,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 419113
