ATE Originele 2-delige remschijf (24011901161) voor Hyundai
€ 98,01
(incl. btw)
€ 81,00 belastingexcl.
Onderdeelnummer:
ATE 24.0119-0116.1
(240119-01161)
- Buitendiameter [mm]: 256,0
- Binnendiameter [mm]: 125,0
- Remschijfdikte [mm]: 19,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 419116
Logistieke informatie:
- Ean Code: 4006633221436
- Gewicht: 10.18kg
Specification of ATE 24.0119-0116.1 / 240119-01161 / 24011901161:
| OE Number | Reference info |
| HYUNDAI 51712-1C050 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI GETZ (TB) Construction Year to 200507 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2002-09 - 2005-09 | 46 | 63 | 1086 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200902 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2005-09 - 2009-06 | 49 | 67 | 1086 | Hatchback |
| HYUNDAI GETZ (TB) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2002-09 - 2004-03 | 60 | 82 | 1341 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200504 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2003-09 - 2005-09 | 63 | 85 | 1341 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200902 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2005-08 - 2010-12 | 71 | 97 | 1399 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200507 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2002-09 - 2005-09 | 77 | 106 | 1599 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year from 200508 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2005-06 - 2009-06 | 78 | 106 | 1599 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200504 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2003-03 - 2005-09 | 60 | 82 | 1493 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200902 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2005-08 - 2009-06 | 65 | 88 | 1493 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200507 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2004-07 - 2005-08 | 75 | 102 | 1493 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200902 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2005-08 - 2009-06 | 81 | 110 | 1493 | Hatchback |

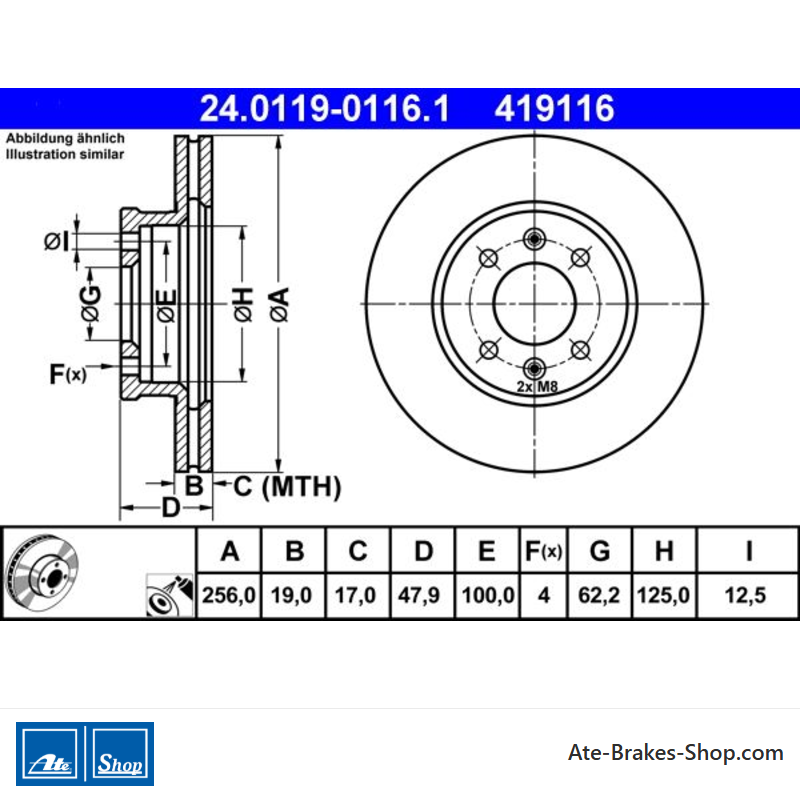

24.0119-0116.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
- Handelsnummer
- 419116
- Land van Herkomst
- China
- Hoogte
- 47,9
- Buitendiameter [mm]
- 256,0
- Remschijfdikte [mm]
- 19,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 62,2
- Binnendiameter [mm]
- 125,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 17,0
Specifieke referenties
- ean13
- 4006633221436
- MPN
- 2401190116102
ATE 24.0119-0116.1
(240119-01161)
- Buitendiameter [mm]: 256,0
- Binnendiameter [mm]: 125,0
- Remschijfdikte [mm]: 19,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 419116
