ATE Originele 2-delige remschijf (24012001811) voor BMW
€ 94,38
(incl. btw)
€ 78,00 belastingexcl.
Onderdeelnummer:
ATE 24.0120-0181.1
(240120-01811)
- Buitendiameter [mm]: 300,0
- Binnendiameter [mm]: 180,0
- Remschijfdikte [mm]: 20,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 420181
Logistieke informatie:
- Ean Code: 4006633240338
- Gewicht: 12.46kg

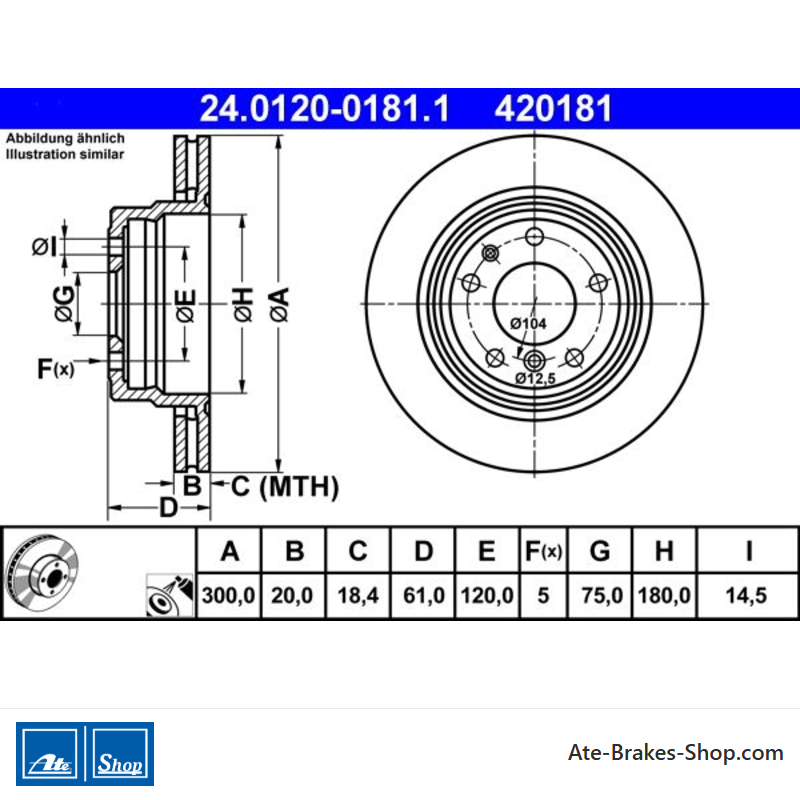

Specification of ATE 24.0120-0181.1 / 240120-01811 / 24012001811:
| OE Number | Reference info |
| BMW 34 21 1 159 659 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211159659 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 1 165 265 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211165265 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 2 226 730 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34212226730 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 5 (E34) Construction Year from 198910 Fitting Position Rear Axle | 1988-09 - 1992-03 | 232 | 315 | 3535 | Saloon |
| BMW 5 (E34) Construction Year to 199405 Fitting Position Rear Axle | 1992-01 - 1995-07 | 250 | 340 | 3795 | Saloon |
| BMW 5 (E34) Fitting Position Rear Axle | 1992-09 - 1995-12 | 210 | 286 | 3982 | Saloon |
| BMW 5 Touring (E34) Fitting Position Rear Axle | 1993-09 - 1996-07 | 210 | 286 | 3982 | Estate |
24.0120-0181.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 420181
- Land van Herkomst
- China
- Hoogte
- 61,0
- Buitendiameter [mm]
- 300,0
- Remschijfdikte [mm]
- 20,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 75,0
- Binnendiameter [mm]
- 180,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 18,4
Specifieke referenties
- ean13
- 4006633240338
- MPN
- 2401200181102
ATE 24.0120-0181.1
(240120-01811)
- Buitendiameter [mm]: 300,0
- Binnendiameter [mm]: 180,0
- Remschijfdikte [mm]: 20,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 420181
