ATE Originele 2-delige remschijf (24012101131) voor Honda
€ 87,12
(incl. btw)
€ 72,00 belastingexcl.
Onderdeelnummer:
ATE 24.0121-0113.1
(240121-01131)
- Buitendiameter [mm]: 240,0
- Binnendiameter [mm]: 126,5
- Remschijfdikte [mm]: 21,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 421113
Logistieke informatie:
- Ean Code: 4006633221450
- Gewicht: 7.87kg

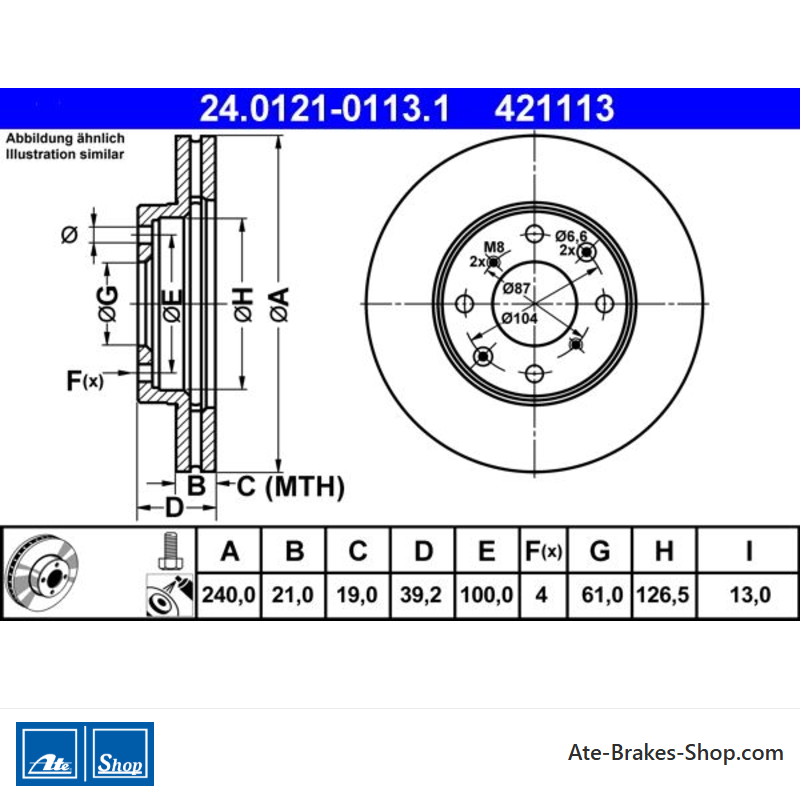

Specification of ATE 24.0121-0113.1 / 240121-01131 / 24012101131:
| OE Number | Reference info |
| HONDA 45251-SAA-G00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-SAA-G10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-SAA-G11 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-S50-G00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA JAZZ II (GD_, GE3, GE2) Construction Year to 200312 Fitting Position Front Axle | 2002-03 - 2008-07 | 57 | 78 | 1243 | Hatchback |
| HONDA JAZZ II (GD_, GE3, GE2) Fitting Position Front Axle Construction Year to 200312 | 2002-03 - 2008-07 | 61 | 83 | 1339 | Hatchback |
| HONDA JAZZ II (GD_, GE3, GE2) Construction Year to 200312 Fitting Position Front Axle | 2002-04 - 2008-07 | 81 | 110 | 1497 | Hatchback |
| HONDA LOGO (GA) Fitting Position Front Axle | 1999-03 - 2002-03 | 48 | 65 | 1343 | Hatchback |
24.0121-0113.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 421113
- Land van Herkomst
- Italië
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 39,2
- Buitendiameter [mm]
- 240,0
- Remschijfdikte [mm]
- 21,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 61,0
- Binnendiameter [mm]
- 126,5
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 19,0
Specifieke referenties
- ean13
- 4006633221450
- MPN
- 2401210113102
ATE 24.0121-0113.1
(240121-01131)
- Buitendiameter [mm]: 240,0
- Binnendiameter [mm]: 126,5
- Remschijfdikte [mm]: 21,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 421113
