ATE Originele 2-delige remschijf (24012101151) voor Honda
€ 98,01
(incl. btw)
€ 81,00 belastingexcl.
Onderdeelnummer:
ATE 24.0121-0115.1
(240121-01151)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 141,3
- Remschijfdikte [mm]: 21,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 421115
Logistieke informatie:
- Ean Code: 4006633319973
- Gewicht: 9.99kg

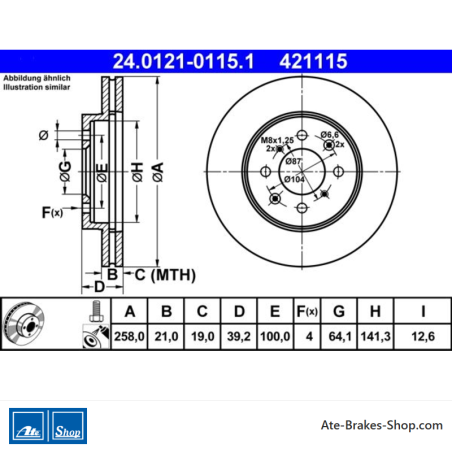

Specification of ATE 24.0121-0115.1 / 240121-01151 / 24012101151:
| OE Number | Reference info |
| HONDA 45251-SAA-G50 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CITY IV Saloon (GD_) Construction Year from 200510 Fitting Position Front Axle | 2002-12 - 2008-07 | 66 | 90 | 1497 | Saloon |
| HONDA CITY IV Saloon (GD_) Fitting Position Front Axle | 2004-10 - 2008-07 | 81 | 110 | 1497 | Saloon |
| HONDA CITY V Saloon (GM2, GM3) Construction Year to 201311 Fitting Position Front Axle | 2008-09 - 2013-12 | 73 | 99 | 1339 | Saloon |
| HONDA CITY V Saloon (GM2, GM3) Construction Year to 201311 Fitting Position Front Axle | 2009-02 - 2014-08 | 88 | 120 | 1497 | Saloon |
| HONDA JAZZ II (GD_, GE3, GE2) Construction Year from 200401 Fitting Position Front Axle | 2002-03 - 2008-07 | 57 | 78 | 1243 | Hatchback |
| HONDA JAZZ II (GD_, GE3, GE2) Construction Year from 200401 Fitting Position Front Axle | 2002-03 - 2008-07 | 61 | 83 | 1339 | Hatchback |
| HONDA JAZZ II (GD_, GE3, GE2) Fitting Position Front Axle | 2006-12 - 2008-10 | 61 | 83 | 1339 | Hatchback |
| HONDA JAZZ II (GD_, GE3, GE2) Construction Year from 200401 Fitting Position Front Axle | 2002-04 - 2008-07 | 81 | 110 | 1497 | Hatchback |
| HONDA JAZZ II (GD_, GE3, GE2) Construction Year from 200510 Fitting Position Front Axle | 2002-03 - 2007-09 | 63 | 86 | 1339 | Hatchback |
| HONDA JAZZ III (GE_, GG_, GP_, ZA_) Construction Year to 200812 Fitting Position Front Axle | 2008-07 - 2015-12 | 66 | 90 | 1198 | Hatchback |
24.0121-0115.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 421115
- Land van Herkomst
- Italië
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 39,2
- Buitendiameter [mm]
- 258,0
- Remschijfdikte [mm]
- 21,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 64,1
- Binnendiameter [mm]
- 141,3
- Bordiameter [mm]
- 12,6
- Minimale dikte [mm]
- 19,0
Specifieke referenties
- ean13
- 4006633319973
- MPN
- 2401210115102
ATE 24.0121-0115.1
(240121-01151)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 141,3
- Remschijfdikte [mm]: 21,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 421115
