ATE Originele 2-delige remschijf (24012201181) voor Audi
€ 90,75
(incl. btw)
€ 75,00 belastingexcl.
Onderdeelnummer:
ATE 24.0122-0118.1
(240122-01181)
- Buitendiameter [mm]: 256,0
- Binnendiameter [mm]: 132,7
- Remschijfdikte [mm]: 22,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 422118
Logistieke informatie:
- Ean Code: 4006633056991
- Gewicht: 10.35kg
Specification of ATE 24.0122-0118.1 / 240122-01181 / 24012201181:
| OE Number | Reference info |
| VAG 443 615 301 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 443615301B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 431 615 301 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 431615301A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 443 615 301 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 443615301A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year from 198908 Construction Year to 199107 Transmission Type Automatic Transmission Fitting Position Front Axle | 1987-08 - 1991-09 | 51 | 70 | 1595 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year from 198908 Construction Year to 199107 Transmission Type Automatic Transmission Fitting Position Front Axle | 1986-09 - 1991-08 | 55 | 75 | 1595 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Transmission Type Automatic Transmission Fitting Position Front Axle | 1990-08 - 1991-10 | 75 | 102 | 1595 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Transmission Type Automatic Transmission Fitting Position Front Axle | 1986-10 - 1990-01 | 55 | 75 | 1781 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year to 199107 Transmission Type Automatic Transmission Fitting Position Front Axle | 1986-09 - 1991-10 | 66 | 90 | 1781 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year from 198609 Construction Year to 199107 Fitting Position Front Axle | 1986-06 - 1991-08 | 82 | 112 | 1781 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Fitting Position Front Axle | 1986-09 - 1991-08 | 82 | 112 | 1781 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Fitting Position Front Axle | 1986-09 - | 83 | 113 | 1847 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Fitting Position Front Axle | 1988-08 - 1990-10 | 82 | 112 | 1984 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Fitting Position Front Axle | 1988-08 - 1990-10 | 83 | 113 | 1984 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Fitting Position Front Axle | 1988-08 - 1990-09 | 83 | 113 | 1984 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Fitting Position Front Axle | 1990-10 - 1991-08 | 85 | 115 | 1984 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year to 199107 Fitting Position Front Axle | 1990-03 - 1991-09 | 101 | 137 | 1984 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Fitting Position Front Axle | 1990-03 - 1991-08 | 101 | 137 | 1984 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year from 198804 Construction Year to 199107 Special Purpose Vehicle for taxis Fitting Position Front Axle | 1986-09 - 1991-08 | 59 | 80 | 1588 | Saloon |
| AUDI 80 B3 Saloon (893, 894, 8A2) Construction Year from 198908 Construction Year to 199107 Transmission Type Automatic Transmission Fitting Position Front Axle | 1986-09 - 1991-08 | 59 | 80 | 1588 | Saloon |
| AUDI 90 B3 (893, 894, 8A2) Construction Year to 199107 Fitting Position Front Axle | 1988-07 - 1991-09 | 85 | 115 | 1994 | Saloon |
| AUDI 90 B3 (893, 894, 8A2) Fitting Position Front Axle | 1988-08 - 1991-09 | 118 | 160 | 1994 | Saloon |
| AUDI 90 B3 (893, 894, 8A2) Fitting Position Front Axle | 1987-04 - 1991-07 | 100 | 136 | 2226 | Saloon |
| AUDI 90 B3 (893, 894, 8A2) Fitting Position Front Axle | 1987-04 - 1991-09 | 100 | 136 | 2226 | Saloon |
| AUDI 90 B3 (893, 894, 8A2) Fitting Position Front Axle | 1987-04 - 1991-07 | 100 | 136 | 2309 | Saloon |
| AUDI 90 B3 (893, 894, 8A2) Fitting Position Front Axle | 1987-04 - 1991-07 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Fitting Position Front Axle | 1980-08 - 1984-08 | 74 | 100 | 1921 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 198108 Fitting Position Front Axle | 1977-10 - 1982-07 | 85 | 115 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 197808 Construction Year to 197907 Fitting Position Front Axle | 1977-10 - 1982-07 | 85 | 115 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year to 197907 Fitting Position Front Axle | 1977-03 - 1982-07 | 100 | 136 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 198108 Fitting Position Front Axle | 1977-03 - 1982-07 | 100 | 136 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 197908 Construction Year to 198107 Fitting Position Front Axle | 1977-03 - 1982-07 | 100 | 136 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 197808 Construction Year to 197907 Fitting Position Front Axle | 1977-03 - 1982-07 | 100 | 136 | 2144 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 198108 Fitting Position Front Axle | 1978-08 - 1982-07 | 51 | 70 | 1986 | Saloon |
| AUDI 100 C2 Saloon (431, 433, 434) Construction Year from 197810 Construction Year to 197907 Fitting Position Front Axle | 1978-08 - 1982-07 | 51 | 70 | 1986 | Saloon |
| AUDI 100 C2 Avant (435, 436) Construction Year from 198108 Fitting Position Front Axle | 1980-08 - 1982-07 | 74 | 100 | 1921 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 197808 Construction Year to 197907 Fitting Position Front Axle | 1977-07 - 1983-02 | 85 | 115 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 198108 Construction Year to 198207 Fitting Position Front Axle | 1977-07 - 1983-02 | 85 | 115 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 198108 Construction Year to 198207 Fitting Position Front Axle | 1977-07 - 1983-02 | 100 | 136 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 197808 Construction Year to 197907 Fitting Position Front Axle | 1977-07 - 1983-02 | 100 | 136 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 197908 Construction Year to 198107 Fitting Position Front Axle | 1977-07 - 1983-02 | 100 | 136 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year to 197907 Fitting Position Front Axle | 1977-07 - 1983-02 | 100 | 136 | 2144 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 198108 Construction Year to 198207 Fitting Position Front Axle | 1978-08 - 1983-02 | 51 | 70 | 1986 | Estate |
| AUDI 100 C2 Avant (435, 436) Construction Year from 197810 Construction Year to 197907 Fitting Position Front Axle | 1978-08 - 1983-02 | 51 | 70 | 1986 | Estate |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1986-08 - 1990-07 | 65 | 88 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 198712 Fitting Position Front Axle | 1986-08 - 1990-07 | 65 | 88 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1984-10 - 1988-07 | 66 | 90 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 198712 Fitting Position Front Axle | 1984-10 - 1988-07 | 66 | 90 | 1781 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Front Axle | 1986-08 - 1987-11 | 83 | 113 | 1994 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Front Axle | 1984-08 - 1987-12 | 85 | 115 | 1994 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Front Axle | 1988-01 - 1990-11 | 85 | 115 | 1994 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1982-08 - 1984-07 | 100 | 136 | 2144 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1982-08 - 1984-07 | 79 | 107 | 2144 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Front Axle | 1984-10 - 1986-09 | 85 | 115 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1984-10 - 1987-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1984-10 - 1987-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1990-01 - 1990-11 | 98 | 133 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1990-01 - 1990-11 | 98 | 133 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1986-10 - 1990-11 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198801 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1986-08 - 1990-11 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198408 Fitting Position Front Axle | 1982-08 - 1988-07 | 51 | 70 | 1986 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Front Axle | 1988-03 - 1990-11 | 74 | 100 | 1986 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year to 199012 Fitting Position Front Axle | 1989-08 - 1991-07 | 60 | 82 | 2370 | Saloon |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1982-08 - 1987-12 | 55 | 75 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1986-02 - 1990-07 | 65 | 88 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1986-08 - 1990-07 | 65 | 88 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year to 198712 Fitting Position Front Axle | 1986-08 - 1990-07 | 65 | 88 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1983-08 - 1989-07 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1985-03 - 1990-11 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1984-10 - 1988-07 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year to 198712 Fitting Position Front Axle | 1984-10 - 1988-07 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1983-02 - 1984-07 | 74 | 100 | 1921 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1986-09 - 1987-11 | 83 | 113 | 1994 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1985-01 - 1987-12 | 85 | 115 | 1994 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1988-01 - 1990-11 | 85 | 115 | 1994 | Estate |
| AUDI 100 C3 Avant (445, 446) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1982-08 - 1984-07 | 100 | 136 | 2144 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1984-10 - 1986-09 | 85 | 115 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1989-06 - 1990-11 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1989-06 - 1990-11 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1990-03 - 1990-11 | 98 | 133 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1990-01 - 1990-11 | 98 | 133 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Rim Hole Number 4 -Hole Fitting Position Front Axle | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198801 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198408 Construction Year to 198907 Fitting Position Front Axle | 1983-03 - 1990-11 | 51 | 70 | 1986 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year to 198407 Fitting Position Front Axle | 1983-03 - 1990-11 | 51 | 70 | 1986 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year to 198407 Fitting Position Front Axle | 1983-03 - 1987-10 | 64 | 87 | 1986 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1988-03 - 1990-11 | 74 | 100 | 1986 | Estate |
| AUDI 100 C3 Avant (445, 446) Fitting Position Front Axle | 1989-08 - 1990-11 | 60 | 82 | 2370 | Estate |

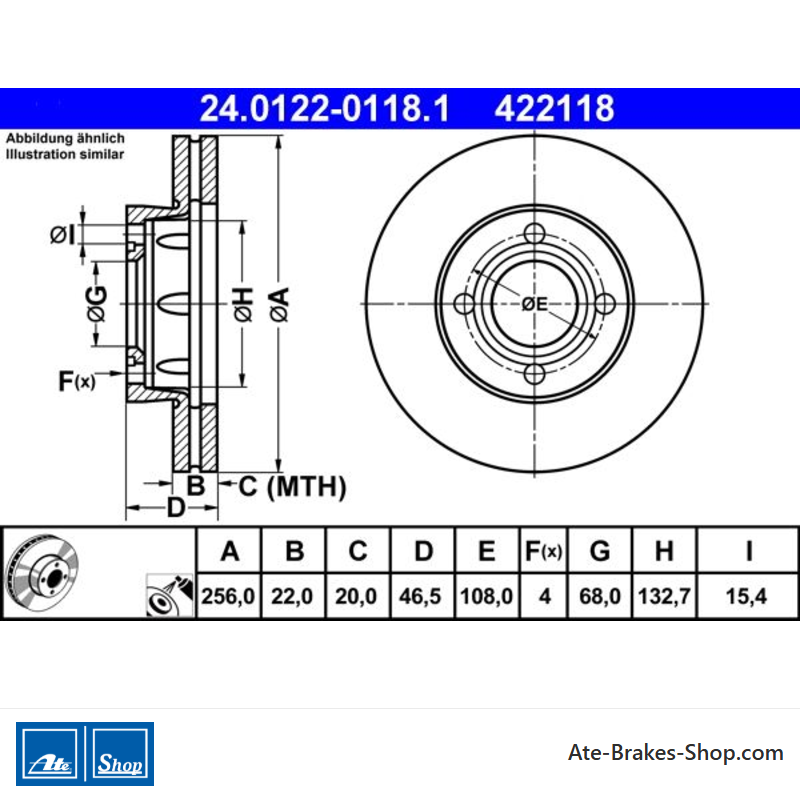

24.0122-0118.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Audi
- Handelsnummer
- 422118
- Land van Herkomst
- EU
- Hoogte
- 46,5
- Buitendiameter [mm]
- 256,0
- Remschijfdikte [mm]
- 22,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 68,0
- Binnendiameter [mm]
- 132,7
- Bordiameter [mm]
- 15,4
- Minimale dikte [mm]
- 20,0
Specifieke referenties
- ean13
- 4006633056991
- MPN
- 2401220118101
ATE 24.0122-0118.1
(240122-01181)
- Buitendiameter [mm]: 256,0
- Binnendiameter [mm]: 132,7
- Remschijfdikte [mm]: 22,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 422118
