ATE Originele 2-delige remschijf (24012201192) voor Alfa Romeo
€ 116,16
(incl. btw)
€ 96,00 belastingexcl.
Onderdeelnummer:
ATE 24.0122-0119.2
(240122-01192)
- Buitendiameter [mm]: 269,0
- Binnendiameter [mm]: 120,0
- Remschijfdikte [mm]: 22,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 422119
Logistieke informatie:
- Ean Code: 4006633108225
- Gewicht: 12.66kg
Specification of ATE 24.0122-0119.2 / 240122-01192 / 24012201192:
| OE Number | Reference info |
| ALFA ROMEO 11646.22014.02.00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ALFA ROMEO 60522092 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60522092 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 11646.22014.02.00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO 75 (162_) Fitting Position Front Axle | 1986-09 - 1992-02 | 110 | 150 | 1779 | Saloon |
| ALFA ROMEO 75 (162_) Construction Year from 198603 Fitting Position Front Axle | 1986-02 - 1990-01 | 114 | 155 | 1779 | Saloon |
| ALFA ROMEO 75 (162_) Construction Year from 198709 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1987-01 - 1992-02 | 107 | 146 | 1962 | Saloon |
| ALFA ROMEO 75 (162_) Construction Year from 198709 Special Purpose Vehicle not for armoured vehicles Fitting Position Front Axle | 1985-05 - 1992-02 | 109 | 148 | 1962 | Saloon |
| ALFA ROMEO 75 (162_) Construction Year from 198509 Fitting Position Front Axle | 1985-05 - 1986-08 | 110 | 150 | 2492 | Saloon |
| ALFA ROMEO 75 (162_) Construction Year from 198704 Fitting Position Front Axle | 1987-01 - 1992-02 | 136 | 185 | 2959 | Saloon |
| ALFA ROMEO 75 (162_) Fitting Position Front Axle | 1990-02 - 1992-02 | 141 | 192 | 2959 | Saloon |
| ALFA ROMEO 90 (162_) Fitting Position Front Axle | 1984-10 - 1987-07 | 110 | 150 | 2492 | Saloon |
| ALFA ROMEO GIULIETTA (116_) Fitting Position Front Axle | 1983-04 - 1985-06 | 125 | 170 | 1962 | Saloon |
| ALFA ROMEO GTV (116_) Fitting Position Front Axle | 1980-11 - 1987-02 | 116 | 158 | 2492 | Coupe |
24.0122-0119.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Alfa Romeo
- Handelsnummer
- 422119
- Land van Herkomst
- Italië
- Aanvullende informatie
- met bouten/schroeven

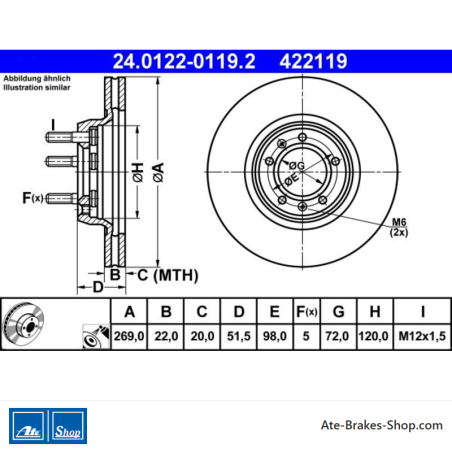

- Hoogte
- 51,5
- Buitendiameter [mm]
- 269,0
- Remschijfdikte [mm]
- 22,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 98,0
- Centreringsdiameter [mm]
- 72,0
- Binnendiameter [mm]
- 120,0
- Draadmaat
- M12x1,5
- Minimale dikte [mm]
- 20,0
Specifieke referenties
- ean13
- 4006633108225
- MPN
- 2401220119201
