ATE Originele 2-delige remschijf (24012202871) voor Mercedes-Benz
€ 192,39
(incl. btw)
€ 159,00 belastingexcl.
Onderdeelnummer:
ATE 24.0122-0287.1
(240122-02871)
- Buitendiameter [mm]: 330,0
- Binnendiameter [mm]: 184,0
- Remschijfdikte [mm]: 22,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 422287
Logistieke informatie:
- Ean Code: 4006633405744
- Gewicht: 15.54kg
Specification of ATE 24.0122-0287.1 / 240122-02871 / 24012202871:
| OE Number | Reference info |
| MERCEDES-BENZ 166 423 04 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 1664230412 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 166 423 04 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 1664230412 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MERCEDES-BENZ M-CLASS (W166) Fitting Position Rear Axle Vehicle Equipment for vehicles with AMG Sports Package Special Purpose Vehicle not for armoured vehicles Construction Year to 201212 | 2011-06 - 2015-12 | 150 | 204 | 2143 | SUV |
| MERCEDES-BENZ M-CLASS (W166) Fitting Position Rear Axle Vehicle Equipment for vehicles with AMG Sports Package Special Purpose Vehicle not for armoured vehicles Construction Year to 201212 | 2011-06 - 2015-02 | 190 | 258 | 2987 | SUV |

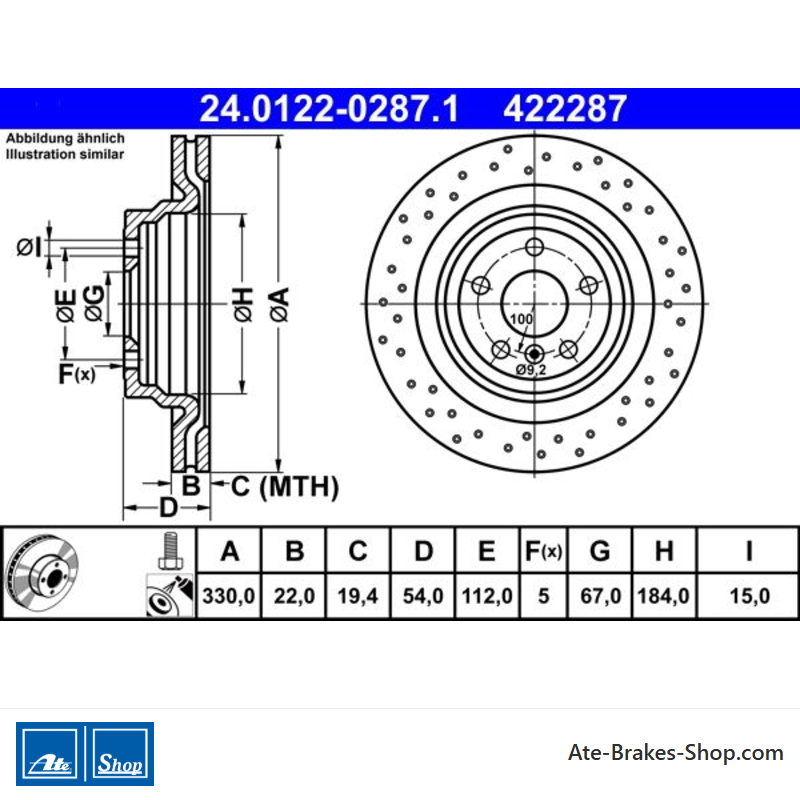

24.0122-0287.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mercedes-Benz
- Handelsnummer
- 422287
- Land van Herkomst
- China
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 54,0
- Buitendiameter [mm]
- 330,0
- Remschijfdikte [mm]
- 22,0
- Type remschijf
- geperforeerd/geventileerd
- Verwerking
- Gelegeerd/Hoog-koolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 67,0
- Binnendiameter [mm]
- 184,0
- Bordiameter [mm]
- 15,0
- Minimale dikte [mm]
- 19,4
Specifieke referenties
- ean13
- 4006633405744
- MPN
- 2401220287102
ATE 24.0122-0287.1
(240122-02871)
- Buitendiameter [mm]: 330,0
- Binnendiameter [mm]: 184,0
- Remschijfdikte [mm]: 22,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 422287
