ATE Originele 2-delige remschijf (24012203191) voor Volkswagen (VW)
€ 90,75
(incl. btw)
€ 75,00 belastingexcl.
Onderdeelnummer:
ATE 24.0122-0319.1
(240122-03191)
- Buitendiameter [mm]: 254,0
- Binnendiameter [mm]: 134,5
- Remschijfdikte [mm]: 22,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 422319
Logistieke informatie:
- Ean Code: 4006633469029
- Gewicht: 9.02kg
Specification of ATE 24.0122-0319.1 / 240122-03191 / 24012203191:
| OE Number | Reference info |
| VAG 6R0 615 601 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6R0615601A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW POLO V Saloon (602, 604, 612, 614) for PR number 1KD Fitting Position Rear Axle | 2015-05 - 2020-03 | 66 | 90 | 1598 | Saloon |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-01 - 2017-10 | 44 | 60 | 999 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-01 - 2017-10 | 55 | 75 | 999 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-11 - 2017-10 | 70 | 95 | 999 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-11 - 2017-10 | 81 | 110 | 999 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-02 - 2017-10 | 66 | 90 | 1197 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-01 - 2017-10 | 81 | 110 | 1197 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-05 - 2017-10 | 110 | 150 | 1395 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-07 - 2017-10 | 66 | 90 | 1598 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-07 - 2017-10 | 81 | 110 | 1598 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-11 - 2017-10 | 141 | 192 | 1798 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2013-08 - 2014-05 | 162 | 220 | 1984 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-03 - 2017-10 | 55 | 75 | 1422 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-02 - 2017-10 | 66 | 90 | 1422 | Hatchback |
| VW POLO V (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-05 - 2017-10 | 77 | 105 | 1422 | Hatchback |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-01 - 2017-10 | 44 | 60 | 999 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-01 - 2017-10 | 55 | 75 | 999 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-11 - 2017-10 | 70 | 95 | 999 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-11 - 2017-10 | 81 | 110 | 999 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-02 - 2017-10 | 66 | 90 | 1197 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2011-05 - 2014-05 | 66 | 90 | 1197 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-01 - 2017-10 | 81 | 110 | 1197 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-05 - 2017-10 | 110 | 150 | 1395 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-03 - 2017-10 | 55 | 75 | 1422 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-02 - 2017-10 | 66 | 90 | 1422 | Hatchback Van |
| VW POLO V Hatchback Van (6R1, 6C1) for PR number 1KD Fitting Position Rear Axle | 2014-03 - 2017-10 | 77 | 105 | 1422 | Hatchback Van |

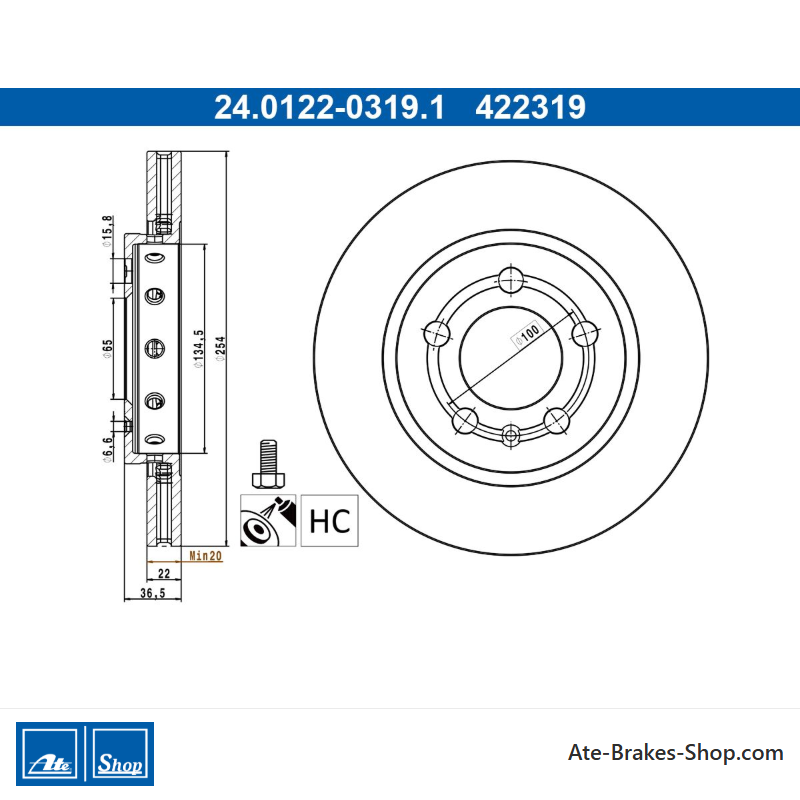

24.0122-0319.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 422319
- Land van Herkomst
- China
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 36,5
- Buitendiameter [mm]
- 254,0
- Remschijfdikte [mm]
- 22,0
- Type remschijf
- Geventileerd
- Verwerking
- Gelegeerd/Hoog-koolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 65,0
- Binnendiameter [mm]
- 134,5
- Bordiameter [mm]
- 15,8
- Minimale dikte [mm]
- 20,0
Specifieke referenties
- ean13
- 4006633469029
- MPN
- 2401220319102
ATE 24.0122-0319.1
(240122-03191)
- Buitendiameter [mm]: 254,0
- Binnendiameter [mm]: 134,5
- Remschijfdikte [mm]: 22,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 422319
