ATE Originele 2-delige remschijf (24012301101) voor Honda
€ 108,90
(incl. btw)
€ 90,00 belastingexcl.
Onderdeelnummer:
ATE 24.0123-0110.1
(240123-01101)
- Buitendiameter [mm]: 282,0
- Binnendiameter [mm]: 141,0
- Remschijfdikte [mm]: 23,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 423110
Logistieke informatie:
- Ean Code: 4006633293310
- Gewicht: 13.16kg
Specification of ATE 24.0123-0110.1 / 240123-01101 / 24012301101:
| OE Number | Reference info |
| HONDA 45251-SMG-G10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-S7A-E10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-SMG-E31 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-SNL-T60 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-TEA-T00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-SMG-G11 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CIVIC VIII Saloon (FD, FA) Fitting Position Front Axle | 2005-09 - 2012-12 | 92 | 125 | 1595 | Saloon |
| HONDA CIVIC VIII Saloon (FD, FA) Fitting Position Front Axle | 2005-09 - 2012-02 | 103 | 140 | 1799 | Saloon |
| HONDA CIVIC VIII Hatchback (FN, FK) Fitting Position Front Axle | 2005-09 - 2008-09 | 61 | 83 | 1339 | Hatchback |
| HONDA CIVIC VIII Hatchback (FN, FK) Fitting Position Front Axle | 2008-10 - 2011-12 | 73 | 100 | 1339 | Hatchback |
| HONDA CIVIC VIII Hatchback (FN, FK) Fitting Position Front Axle | 2005-09 - 2011-12 | 103 | 140 | 1799 | Hatchback |
| HONDA CIVIC VIII Hatchback (FN, FK) Fitting Position Front Axle | 2005-09 - 2011-12 | 103 | 140 | 2204 | Hatchback |
| HONDA CIVIC IX Saloon (FB) Fitting Position Front Axle | 2011-09 - 2016-12 | 92 | 125 | 1597 | Saloon |
| HONDA CIVIC IX Saloon (FB) Fitting Position Front Axle | 2012-02 - 2016-12 | 104 | 141 | 1799 | Saloon |
| HONDA CIVIC XI Saloon (FE) Fitting Position Front Axle | 2021-11 - | 95 | 129 | 1498 | Saloon |
| HONDA FR-V (BE) Fitting Position Front Axle | 2004-08 - 2006-09 | 92 | 125 | 1668 | MPV |
| HONDA FR-V (BE) Fitting Position Front Axle | 2007-01 - 2009-12 | 103 | 140 | 1799 | MPV |
| HONDA FR-V (BE) Fitting Position Front Axle | 2005-02 - 2006-12 | 110 | 150 | 1998 | MPV |
| HONDA STREAM (RN) Fitting Position Front Axle | 2001-05 - 2006-09 | 115 | 156 | 1998 | MPV |

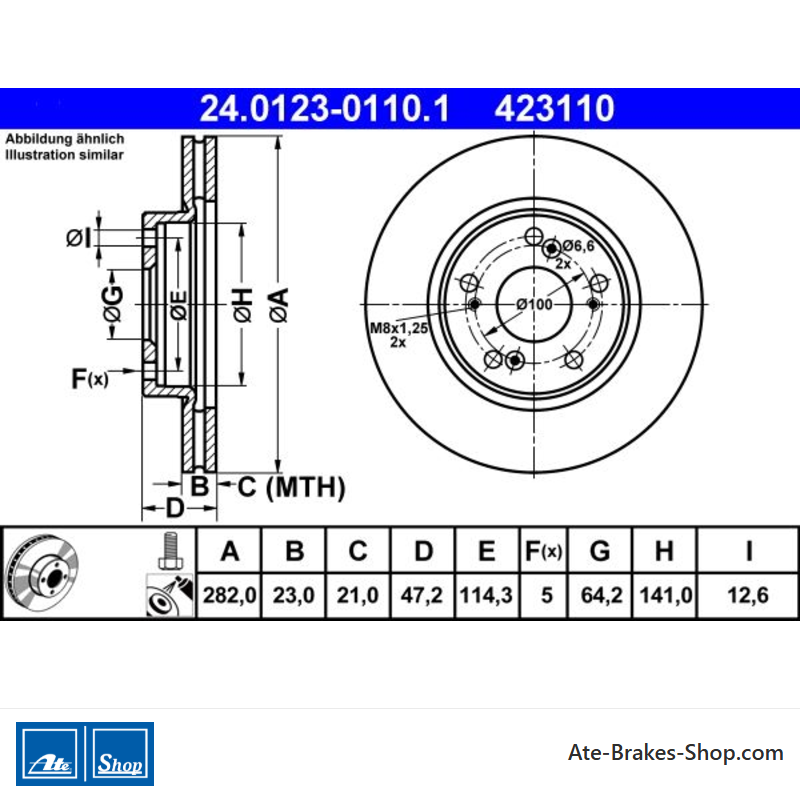

24.0123-0110.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 423110
- Land van Herkomst
- Duitsland
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 47,2
- Buitendiameter [mm]
- 282,0
- Remschijfdikte [mm]
- 23,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 64,2
- Binnendiameter [mm]
- 141,0
- Bordiameter [mm]
- 12,6
- Minimale dikte [mm]
- 21,0
Specifieke referenties
- ean13
- 4006633293310
- MPN
- 2401230110102
ATE 24.0123-0110.1
(240123-01101)
- Buitendiameter [mm]: 282,0
- Binnendiameter [mm]: 141,0
- Remschijfdikte [mm]: 23,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 423110
