ATE Originele 2-delige remschijf (24012401281) voor Volkswagen (VW)
search
  • ATE Originele 2-delige remschijf (24012401281) voor Volkswagen (VW)
  • ATE Originele 2-delige remschijf (24012401281) voor Volkswagen (VW)
  • ATE Originele 2-delige remschijf (24012401281) voor Volkswagen (VW)

ATE Originele 2-delige remschijf (24012401281) voor Volkswagen (VW)

€ 119,79 (incl. btw)

€ 99,00 belastingexcl.

Onderdeelnummer:

ATE 24.0124-0128.1
(240124-01281)

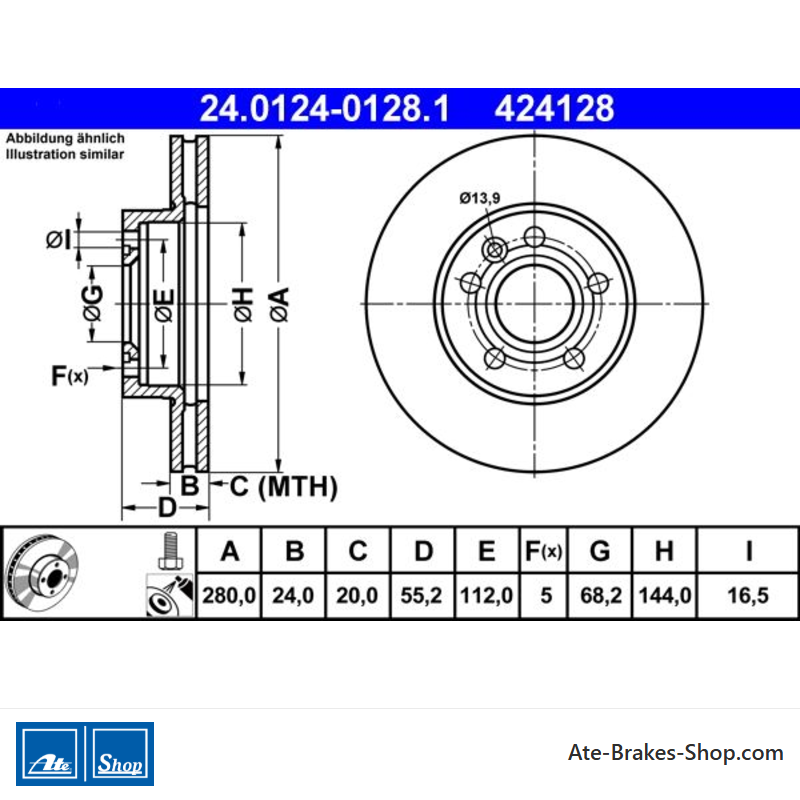

  • Buitendiameter [mm]: 280,0
  • Binnendiameter [mm]: 144,0
  • Remschijfdikte [mm]: 24,0
  • Aantal bolt holes: 5
  • 2 stukken remschijf
  • Handelsnummer: 424128
Logistieke informatie:
68,2Klik hier voor gedetailleerde informatie.
  • Ean Code: 4006633297783
  • Gewicht: 13.81kg
Aantal

Specification of ATE 24.0124-0128.1 / 240124-01281 / 24012401281:

OE NumberReference info
VAG 701 615 301 FPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 701615301FPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7D0 615 301 APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7D0615301APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7D0 615 301 CPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7D0615301CPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-07 - 2003-0462841968Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-11 - 2003-04811102461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-11 - 2001-11811102461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1996-08 - 2003-04851152461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1996-08 - 2003-04851152461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1996-05 - 2000-051031402792Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		2000-06 - 2003-041502042792Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 2003-0450681896Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1997-08 - 2003-0455752370Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-07 - 1998-0457782370Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199507

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 1998-0957782370Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1998-12 - 2003-0465882461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1995-09 - 2003-04751022461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1995-09 - 2003-04751022461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		2000-09 - 2003-041111512461Van
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 2003-0462841968Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 2003-06811102461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199507

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-08 - 2003-04811102461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1996-08 - 2003-04851152461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1996-07 - 2003-04851152461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1995-11 - 2000-041031402792Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		2000-04 - 2003-041502042792Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 2003-0450681896Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1997-08 - 2003-0455752370Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 1998-0457782370Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199507

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 1998-0957782370Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1998-05 - 2003-0465882461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1995-09 - 2003-04751022461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1996-01 - 2003-04751022461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1998-05 - 2003-041111512461Bus
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-07 - 2003-0462841968Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-11 - 2003-04811102461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199507

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-11 - 2001-11811102461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1996-08 - 2003-04851152461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1996-08 - 2003-04851152461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 2003-0450681896Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1997-08 - 2003-0455752370Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 1998-0457782370Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199507

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 1998-0957782370Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1998-05 - 2003-0465882461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199605

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1995-09 - 2003-04751022461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1998-05 - 2003-04751022461Platform/Chassis
24.0124-0128.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Volkswagen (VW)
Handelsnummer
424128
Land van Herkomst
EU
Aanvullende informatie
met bouten/schroeven
Hoogte
55,2
Buitendiameter [mm]
280,0
Remschijfdikte [mm]
24,0
Type remschijf
Geventileerd
Verwerking
Hoogkoolstof
Oppervlakte
Gecoate
Aantal boltgaten
5
Diameter van het schroefgat [mm]
112,0
Centreringsdiameter [mm]
68,2
Binnendiameter [mm]
144,0
Bordiameter [mm]
16,5
Minimale dikte [mm]
20,0

Specifieke referenties

ean13
4006633297783
MPN
2401240128102
