ATE Originele 2-delige remschijf (24012401481) voor Ford
€ 123,42
(incl. btw)
€ 102,00 belastingexcl.
Onderdeelnummer:
ATE 24.0124-0148.1
(240124-01481)
- Buitendiameter [mm]: 278,0
- Binnendiameter [mm]: 137,0
- Remschijfdikte [mm]: 24,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 424148
Logistieke informatie:
- Ean Code: 4006633025140
- Gewicht: 12.67kg
Specification of ATE 24.0124-0148.1 / 240124-01481 / 24012401481:
| OE Number | Reference info |
| FORD 1661467 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 5024174 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 5026674 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD ESCORT V (AAL, ABL) Fitting Position Front Axle | 1991-10 - 1995-01 | 162 | 220 | 1994 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year to 199512 Fitting Position Front Axle | 1995-02 - 1998-02 | 110 | 150 | 1998 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year to 199512 Fitting Position Front Axle | 1995-02 - 1998-10 | 162 | 220 | 1994 | Hatchback |
| FORD SIERRA II (GBG, GB4) Fitting Position Front Axle | 1990-01 - 1993-02 | 162 | 220 | 1993 | Saloon |
| FORD SIERRA II Hatchback (GBC, GBG) Fitting Position Front Axle | 1990-01 - 1993-02 | 162 | 220 | 1993 | Hatchback |
| FORD SIERRA II Hatchback (GBC, GBG) Fitting Position Front Axle | 1990-01 - 1993-02 | 162 | 220 | 1993 | Hatchback |

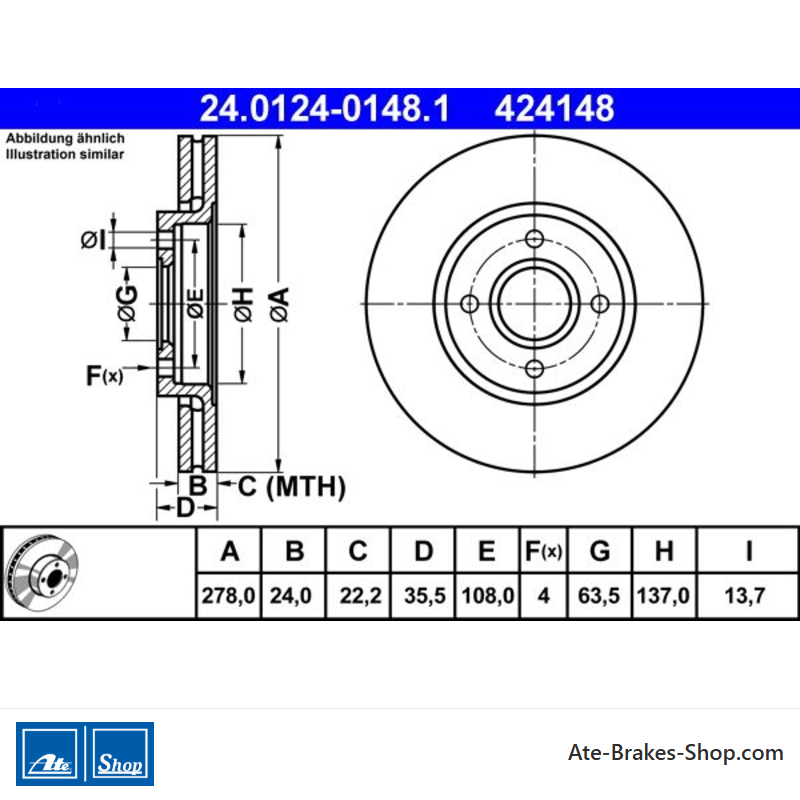

24.0124-0148.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Ford
- Handelsnummer
- 424148
- Land van Herkomst
- China
- Hoogte
- 35,5
- Buitendiameter [mm]
- 278,0
- Remschijfdikte [mm]
- 24,0
- Type remschijf
- Geventileerd
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 63,5
- Binnendiameter [mm]
- 137,0
- Bordiameter [mm]
- 13,7
- Minimale dikte [mm]
- 22,2
Specifieke referenties
- ean13
- 4006633025140
- MPN
- 2401240148102
ATE 24.0124-0148.1
(240124-01481)
- Buitendiameter [mm]: 278,0
- Binnendiameter [mm]: 137,0
- Remschijfdikte [mm]: 24,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 424148
