ATE Originele 2-delige remschijf (24012401631) voor Daewoo
€ 90,75
(incl. btw)
€ 75,00 belastingexcl.
Onderdeelnummer:
ATE 24.0124-0163.1
(240124-01631)
- Buitendiameter [mm]: 256,0
- Binnendiameter [mm]: 134,0
- Remschijfdikte [mm]: 24,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 424163
Logistieke informatie:
- Ean Code: 4006633091978
- Gewicht: 11.40kg
Specification of ATE 24.0124-0163.1 / 240124-01631 / 24012401631:
| OE Number | Reference info |
| CHEVROLET 96312559 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHEVROLET 96286933 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHEVROLET 96300035 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96312559 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96286933 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96300035 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAEWOO NUBIRA (J100) Construction Year to 200212 Fitting Position Front Axle | 2002-08 - 2003-07 | 76 | 103 | 1598 | Hatchback |
| DAEWOO NUBIRA (J100) Construction Year from 199706 Fitting Position Front Axle | 1997-05 - 1999-05 | 78 | 106 | 1598 | Hatchback |
| DAEWOO NUBIRA (J100) Construction Year to 200212 Fitting Position Front Axle | 2002-08 - 2003-07 | 93 | 126 | 1998 | Hatchback |
| DAEWOO NUBIRA (J100) Construction Year from 199706 Construction Year to 199905 Fitting Position Front Axle | 1997-05 - | 98 | 133 | 1998 | Hatchback |
| DAEWOO NUBIRA Wagon (J100) Construction Year to 199905 Fitting Position Front Axle | 1997-06 - | 66 | 90 | 1598 | Estate |
| DAEWOO NUBIRA Wagon (J100) Construction Year to 200502 Fitting Position Front Axle | 2000-12 - | 76 | 103 | 1598 | Estate |
| DAEWOO NUBIRA Wagon (J100) Construction Year from 199706 Fitting Position Front Axle | 1997-05 - 1999-05 | 78 | 106 | 1598 | Estate |
| DAEWOO NUBIRA Wagon (J100) Construction Year to 200502 Fitting Position Front Axle | 2000-12 - | 93 | 126 | 1998 | Estate |
| DAEWOO NUBIRA Wagon (J100) Construction Year from 199706 Construction Year to 199905 Fitting Position Front Axle | 1997-05 - | 98 | 133 | 1998 | Estate |
| DAEWOO NUBIRA Saloon (J100) Construction Year to 200502 Fitting Position Front Axle | 2000-07 - | 76 | 103 | 1598 | Saloon |
| DAEWOO NUBIRA Saloon (J100) Construction Year from 199706 Fitting Position Front Axle | 1997-05 - 1999-05 | 78 | 106 | 1598 | Saloon |
| DAEWOO NUBIRA Saloon (J100) Construction Year to 200502 Fitting Position Front Axle | 2000-12 - | 93 | 126 | 1998 | Saloon |
| DAEWOO NUBIRA Saloon (J100) Construction Year from 199706 Construction Year to 199905 Fitting Position Front Axle | 1997-05 - | 98 | 133 | 1998 | Saloon |

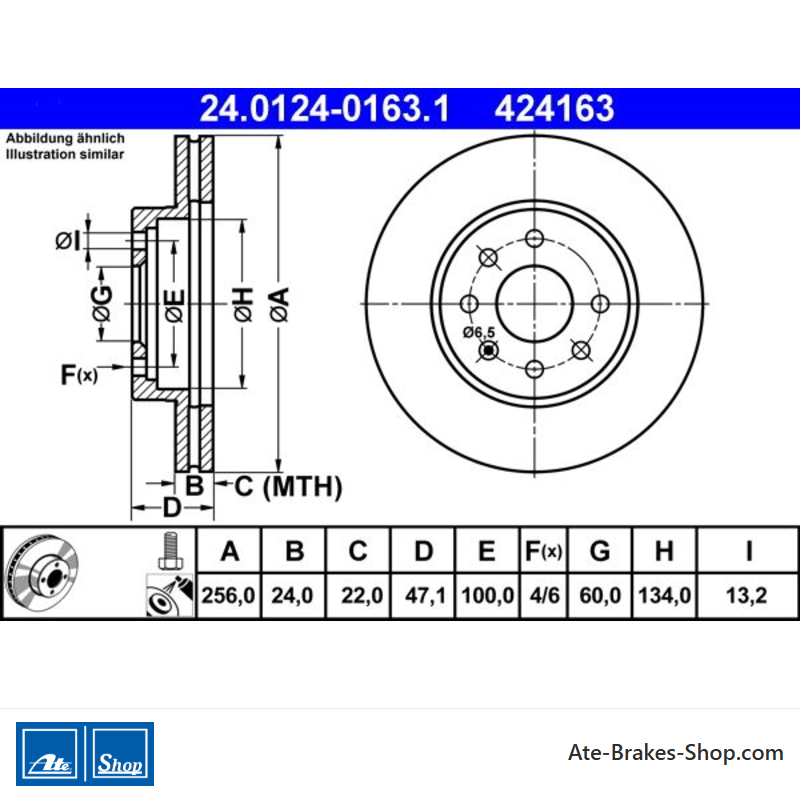

24.0124-0163.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Daewoo
- Handelsnummer
- 424163
- Land van Herkomst
- Duitsland
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 47,1
- Buitendiameter [mm]
- 256,0
- Remschijfdikte [mm]
- 24,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 60,0
- Binnendiameter [mm]
- 134,0
- Bordiameter [mm]
- 13,2
- Minimale dikte [mm]
- 22,0
Specifieke referenties
- ean13
- 4006633091978
- MPN
- 2401240163102
ATE 24.0124-0163.1
(240124-01631)
- Buitendiameter [mm]: 256,0
- Binnendiameter [mm]: 134,0
- Remschijfdikte [mm]: 24,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 424163
