ATE Originele 2-delige remschijf (24012401701) voor Mitsubishi
€ 108,90
(incl. btw)
€ 90,00 belastingexcl.
Onderdeelnummer:
ATE 24.0124-0170.1
(240124-01701)
- Buitendiameter [mm]: 276,0
- Binnendiameter [mm]: 145,0
- Remschijfdikte [mm]: 24,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 424170
Logistieke informatie:
- Ean Code: 4006633105903
- Gewicht: 12.26kg
Specification of ATE 24.0124-0170.1 / 240124-01701 / 24012401701:
| OE Number | Reference info |
| MITSUBISHI MR475331 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MITSUBISHI MR389725 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MITSUBISHI GALANT VIII (EA_) Construction Year from 199712 Construction Year to 200003 Fitting Position Front Axle | 1996-09 - 2000-09 | 100 | 136 | 1997 | Saloon |
| MITSUBISHI GALANT VIII (EA_) Construction Year from 199903 Construction Year to 200003 Fitting Position Front Axle | 1999-02 - 2000-09 | 110 | 150 | 2351 | Saloon |
| MITSUBISHI GALANT VIII (EA_) Construction Year from 199712 Construction Year to 200003 Fitting Position Front Axle | 1996-09 - 2000-09 | 120 | 163 | 2498 | Saloon |
| MITSUBISHI GALANT VIII (EA_) Construction Year to 200003 Fitting Position Front Axle | 1999-01 - 2003-12 | 152 | 207 | 2972 | Saloon |
| MITSUBISHI GALANT VIII Estate (EA_, EC_) Construction Year from 199712 Construction Year to 200003 Fitting Position Front Axle | 1996-09 - 2000-09 | 100 | 136 | 1997 | Estate |
| MITSUBISHI GALANT VIII Estate (EA_, EC_) Construction Year from 199903 Construction Year to 200003 Fitting Position Front Axle | 1999-02 - 2003-10 | 110 | 150 | 2351 | Estate |
| MITSUBISHI GALANT VIII Estate (EA_, EC_) Construction Year from 199712 Construction Year to 200003 Fitting Position Front Axle | 1996-09 - 2000-09 | 120 | 163 | 2498 | Estate |

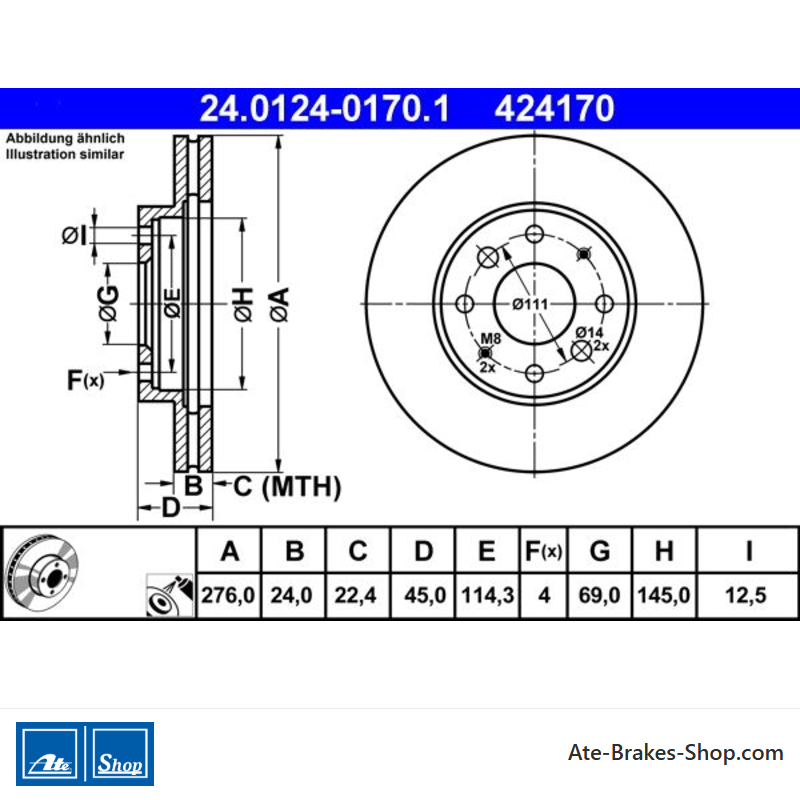

24.0124-0170.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mitsubishi
- Handelsnummer
- 424170
- Land van Herkomst
- QU
- Hoogte
- 45,0
- Buitendiameter [mm]
- 276,0
- Remschijfdikte [mm]
- 24,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 69,0
- Binnendiameter [mm]
- 145,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 22,4
Specifieke referenties
- ean13
- 4006633105903
- MPN
- 2401240170102
