ATE Originele remschijf (24012402281) voor Iveco
€ 188,76
(incl. btw)
€ 156,00 belastingexcl.
Onderdeelnummer:
ATE 24.0124-0228.1
(240124-02281)
- Buitendiameter [mm]: 294,0
- Binnendiameter [mm]: 142,0
- Remschijfdikte [mm]: 24,0
- Aantal bolt holes: 8
- Handelsnummer: 424228
Logistieke informatie:
- Ean Code: 4006633346177
- Gewicht: 9.05kg
Specification of ATE 24.0124-0228.1 / 240124-02281 / 24012402281:
| OE Number | Reference info |
| IVECO 2996043 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| IVECO 7186485 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| IVECO 46393182 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2006-05 - 2011-08 | 70 | 95 | 2287 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2006-05 - 2011-08 | 85 | 116 | 2287 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2006-05 - 2011-08 | 100 | 136 | 2287 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2006-05 - 2011-08 | 70 | 95 | 2287 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2007-07 - 2011-08 | 78 | 106 | 2287 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2006-05 - 2011-08 | 85 | 116 | 2287 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2007-07 - 2011-08 | 93 | 126 | 2287 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2009-09 - 2011-08 | 103 | 140 | 2998 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2007-07 - 2011-08 | 100 | 136 | 2998 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2006-05 - 2011-08 | 107 | 146 | 2998 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2007-07 - 2011-08 | 125 | 170 | 2998 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2006-05 - 2011-08 | 130 | 176 | 2998 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2006-05 - 2011-08 | 100 | 136 | 2287 | Platform/Chassis |
| IVECO DAILY IV Platform/Chassis Fitting Position Rear Axle | 2007-07 - 2011-08 | 125 | 170 | 2998 | Platform/Chassis |
| IVECO DAILY IV Bus Fitting Position Rear Axle | 2006-05 - 2011-08 | 100 | 136 | 2287 | Bus |
| IVECO DAILY V Van Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 93 | 126 | 2287 | Van |
| IVECO DAILY V Van Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 100 | 136 | 2998 | Van |
| IVECO DAILY V Van Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 107 | 146 | 2287 | Van |
| IVECO DAILY V Van Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 107 | 146 | 2998 | Van |
| IVECO DAILY V Van Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 125 | 170 | 2998 | Van |
| IVECO DAILY V Van Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 150 | 204 | 2998 | Van |
| IVECO DAILY V Platform/Chassis Fitting Position Rear Axle Vehicle type 35S Vehicle type 35C | 2011-09 - 2014-02 | 78 | 106 | 2287 | Platform/Chassis |
| IVECO DAILY V Platform/Chassis Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 93 | 126 | 2287 | Platform/Chassis |
| IVECO DAILY V Platform/Chassis Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 100 | 136 | 2998 | Platform/Chassis |
| IVECO DAILY V Platform/Chassis Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 107 | 146 | 2287 | Platform/Chassis |
| IVECO DAILY V Platform/Chassis Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 107 | 146 | 2998 | Platform/Chassis |
| IVECO DAILY V Platform/Chassis Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 125 | 170 | 2998 | Platform/Chassis |
| IVECO DAILY V Platform/Chassis Fitting Position Rear Axle Vehicle type 35C | 2011-09 - 2014-02 | 150 | 205 | 2998 | Platform/Chassis |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2006-05 - 2011-08 | 70 | 95 | 2287 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2006-05 - 2011-08 | 85 | 116 | 2287 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2006-05 - 2011-08 | 100 | 136 | 2287 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2006-05 - 2011-08 | 70 | 95 | 2287 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2007-07 - 2011-08 | 78 | 106 | 2287 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2006-05 - 2011-08 | 85 | 116 | 2287 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2007-07 - 2011-08 | 93 | 126 | 2287 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2009-09 - 2011-08 | 103 | 140 | 2998 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2007-07 - 2011-08 | 100 | 136 | 2998 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2006-05 - 2011-08 | 107 | 146 | 2998 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2007-07 - 2011-08 | 125 | 170 | 2998 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2006-05 - 2011-08 | 130 | 176 | 2998 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle | 2006-05 - 2011-08 | 100 | 136 | 2287 | Van |
| IVECO DAILY IV Van Fitting Position Rear Axle Vehicle type 40C | 2007-07 - 2011-08 | 78 | 106 | 2287 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 72C | 2022-12 - | 140 | 190 | CC | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C11 | 2014-03 - 2021-07 | 78 | 106 | 2287 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C12 | 2016-04 - | 85 | 116 | 2287 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C13 | 2014-03 - | 93 | 126 | 2287 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C14 | 2016-04 - | 100 | 136 | 2287 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C15 | 2014-03 - | 107 | 146 | 2287 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C16 | 2016-04 - | 115 | 156 | 2287 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C14 | 2014-03 - | 100 | 136 | 2998 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C15 | 2014-03 - | 107 | 146 | 2998 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C15 | 2016-04 - | 110 | 150 | 2998 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C17 | 2014-03 - | 125 | 170 | 2998 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C Vehicle type 60C Vehicle type 65C Vehicle type 70C | 2021-07 - | 129 | 175 | 2998 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C18 | 2016-04 - | 132 | 180 | 2998 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C21 | 2014-03 - | 150 | 204 | 2998 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C Vehicle type 60C Vehicle type 65C Vehicle type 70C | 2021-07 - | 152 | 207 | 2998 | Van |
| IVECO DAILY VI Van Fitting Position Rear Axle Vehicle type 35C Vehicle type 60C Vehicle type 65C Vehicle type 70C | 2019-04 - | 155 | 211 | 2998 | Van |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 72C | 2022-12 - | 140 | 190 | CC | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C11 | 2014-03 - 2021-07 | 78 | 106 | 2287 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C12 | 2016-04 - | 85 | 116 | 2287 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C13 | 2014-03 - | 93 | 126 | 2287 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C14 | 2016-04 - | 100 | 136 | 2287 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C15 | 2014-03 - | 107 | 146 | 2287 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C16 | 2016-04 - | 115 | 156 | 2287 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C14 | 2014-03 - | 100 | 136 | 2998 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C15 | 2014-03 - | 107 | 146 | 2998 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C15 | 2016-04 - | 110 | 150 | 2998 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C Vehicle type 60C Vehicle type 65C Vehicle type 70C | 2019-04 - | 118 | 160 | 2998 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C17 | 2014-03 - | 125 | 170 | 2998 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C Vehicle type 60C Vehicle type 65C Vehicle type 70C | 2021-07 - | 129 | 175 | 2998 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C18 | 2016-04 - | 132 | 180 | 2998 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C21 | 2014-03 - | 150 | 204 | 2998 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 60C Vehicle type 65C Vehicle type 70C | 2021-07 - | 152 | 207 | 2998 | Platform/Chassis |
| IVECO DAILY VI Platform/Chassis Fitting Position Rear Axle Vehicle type 35C Vehicle type 60C Vehicle type 65C Vehicle type 70C | 2019-04 - | 155 | 211 | 2998 | Platform/Chassis |
| IVECO DAILY VI Bus Fitting Position Rear Axle Vehicle type 60C | 2021-07 - | 129 | 175 | 2998 | Bus |
| IVECO DAILY VI Bus Fitting Position Rear Axle Vehicle type 60C | 2019-04 - | 155 | 211 | 2998 | Bus |
| IVECO DAILY VI Bus Fitting Position Rear Axle Vehicle type 60C | 2021-07 - | 152 | 207 | 2998 | Bus |

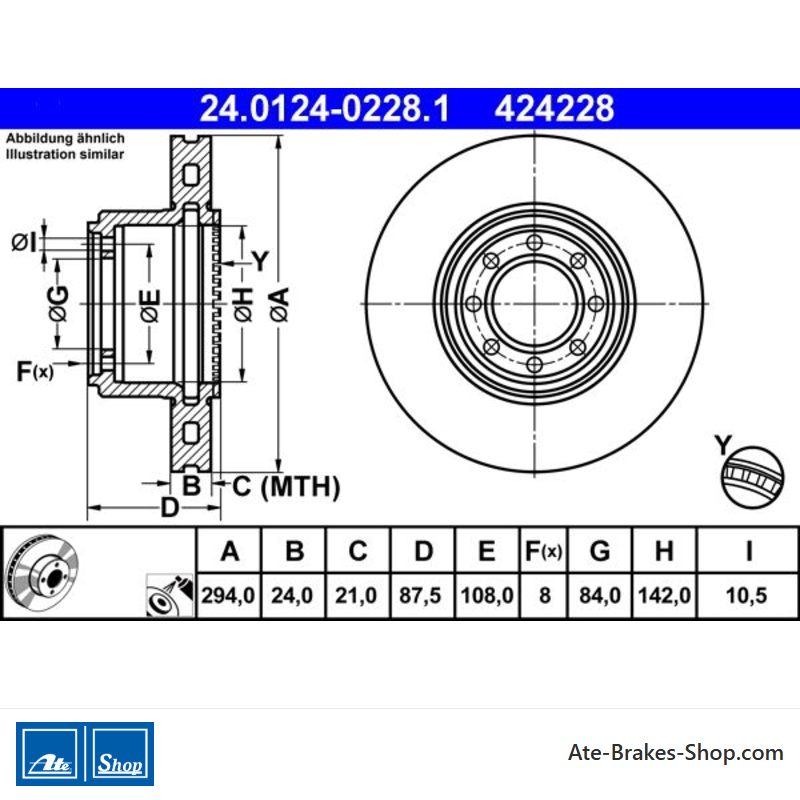

24.0124-0228.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Iveco
- Handelsnummer
- 424228
- Land van Herkomst
- Italië
- Hoogte
- 87,5
- Buitendiameter [mm]
- 294,0
- Remschijfdikte [mm]
- 24,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 8
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 84,0
- Binnendiameter [mm]
- 142,0
- Bordiameter [mm]
- 10,5
- Minimale dikte [mm]
- 21,0
Specifieke referenties
- ean13
- 4006633346177
- MPN
- 2401240228102
ATE 24.0124-0228.1
(240124-02281)
- Buitendiameter [mm]: 294,0
- Binnendiameter [mm]: 142,0
- Remschijfdikte [mm]: 24,0
- Aantal bolt holes: 8
- Handelsnummer: 424228
