ATE Originele 2-delige remschijf (24012501551) voor Toyota
€ 116,16
(incl. btw)
€ 96,00 belastingexcl.
Onderdeelnummer:
ATE 24.0125-0155.1
(240125-01551)
- Buitendiameter [mm]: 255,0
- Binnendiameter [mm]: 131,0
- Remschijfdikte [mm]: 25,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 425155
Logistieke informatie:
- Ean Code: 4006633206044
- Gewicht: 10.74kg
Specification of ATE 24.0125-0155.1 / 240125-01551 / 24012501551:
| OE Number | Reference info |
| TOYOTA 43512-02070 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-13030 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-47020 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA COROLLA Saloon (_E12_) Construction Year to 200405 Fitting Position Front Axle | 2001-10 - 2006-10 | 71 | 97 | 1398 | Saloon |
| TOYOTA COROLLA Saloon (_E12_) Construction Year from 200406 Fitting Position Front Axle | 2001-10 - 2006-10 | 71 | 97 | 1398 | Saloon |
| TOYOTA COROLLA Saloon (_E12_) Construction Year from 200201 Construction Year to 200405 Fitting Position Front Axle | 2001-10 - 2008-03 | 81 | 110 | 1598 | Saloon |
| TOYOTA COROLLA Saloon (_E12_) Construction Year from 200406 Construction Year to 200610 Fitting Position Front Axle | 2001-10 - 2008-03 | 81 | 110 | 1598 | Saloon |
| TOYOTA COROLLA (_E12_) Construction Year to 200405 Fitting Position Front Axle | 2001-11 - 2007-02 | 71 | 97 | 1398 | Hatchback |
| TOYOTA COROLLA (_E12_) Construction Year from 200406 Construction Year to 200610 Fitting Position Front Axle | 2001-11 - 2007-02 | 71 | 97 | 1398 | Hatchback |
| TOYOTA COROLLA (_E12_) Construction Year from 200406 Construction Year to 200610 Fitting Position Front Axle | 2002-01 - 2006-12 | 81 | 110 | 1598 | Hatchback |
| TOYOTA COROLLA (_E12_) Construction Year to 200405 Fitting Position Front Axle | 2002-01 - 2006-12 | 81 | 110 | 1598 | Hatchback |
| TOYOTA COROLLA Estate (_E12_) Construction Year to 200405 Fitting Position Front Axle | 2002-01 - 2007-02 | 71 | 97 | 1398 | Estate |
| TOYOTA COROLLA Estate (_E12_) Construction Year from 200406 Fitting Position Front Axle | 2002-01 - 2007-02 | 71 | 97 | 1398 | Estate |
| TOYOTA COROLLA Estate (_E12_) Construction Year to 200405 Fitting Position Front Axle | 2002-01 - 2007-08 | 81 | 110 | 1598 | Estate |
| TOYOTA COROLLA Estate (_E12_) Construction Year from 200406 Construction Year to 200610 Fitting Position Front Axle | 2002-01 - 2007-08 | 81 | 110 | 1598 | Estate |
| TOYOTA COROLLA Verso (_E12_) Fitting Position Front Axle | 2001-08 - 2004-05 | 81 | 110 | 1598 | MPV |
| TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) Fitting Position Front Axle | 2004-04 - 2009-03 | 81 | 110 | 1598 | MPV |
| TOYOTA PRIUS Saloon (_W1_) Fitting Position Front Axle | 2000-09 - 2003-12 | 85 | 116 | 1497 | Saloon |

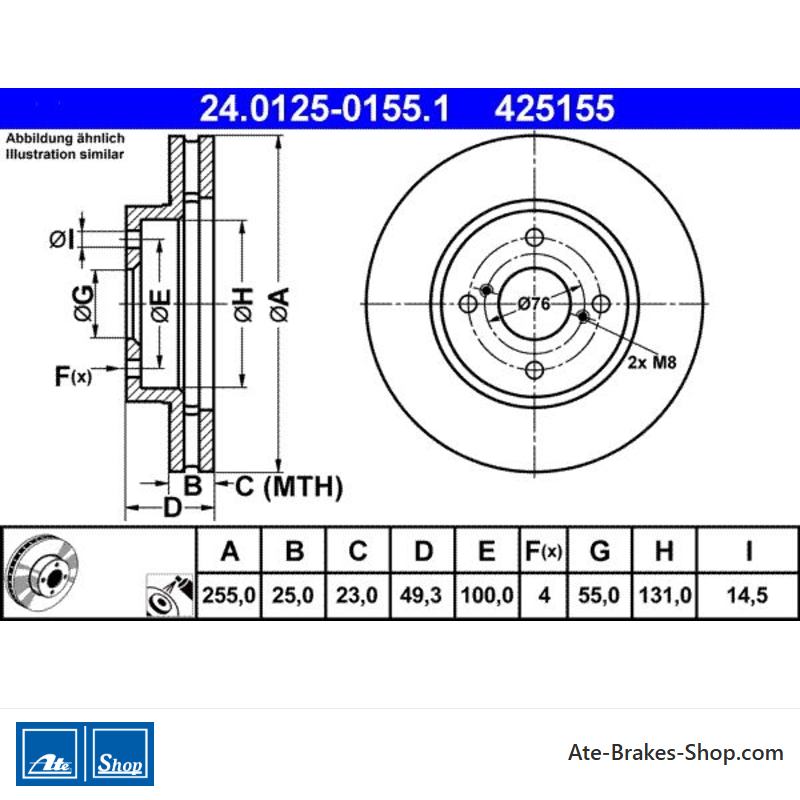

24.0125-0155.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
- Handelsnummer
- 425155
- Land van Herkomst
- Tsjechië
- Hoogte
- 49,3
- Buitendiameter [mm]
- 255,0
- Remschijfdikte [mm]
- 25,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 55,0
- Binnendiameter [mm]
- 131,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 23,0
Specifieke referenties
- ean13
- 4006633206044
- MPN
- 2401250155102
ATE 24.0125-0155.1
(240125-01551)
- Buitendiameter [mm]: 255,0
- Binnendiameter [mm]: 131,0
- Remschijfdikte [mm]: 25,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 425155
