ATE Originele remschijf (24012502241) voor Ford
€ 141,57
(incl. btw)
€ 117,00 belastingexcl.
Onderdeelnummer:
ATE 24.0125-0224.1
(240125-02241)
- Buitendiameter [mm]: 320,0
- Binnendiameter [mm]: 147,5
- Remschijfdikte [mm]: 25,0
- Aantal bolt holes: 5
- Handelsnummer: 425224
Logistieke informatie:
- Ean Code: 4006633470445
- Gewicht: 9.13kg
Specification of ATE 24.0125-0224.1 / 240125-02241 / 24012502241:
| OE Number | Reference info |
| FORD 2279490 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD KV6C-1125-GC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2279489 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD KV6C-1125-FC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-11 - 2022-12 | 74 | 100 | 998 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-11 - 2022-12 | 110 | 150 | 1596 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2015-05 - 2022-12 | 55 | 75 | 1499 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Fitting Position Front Axle Payload for increased payload | 2018-05 - 2022-12 | 55 | 75 | 1499 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2016-08 - 2022-12 | 70 | 95 | 1499 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2015-05 - 2022-12 | 74 | 101 | 1499 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Fitting Position Front Axle Payload for increased payload | 2018-05 - 2022-12 | 74 | 101 | 1499 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2015-05 - 2022-12 | 88 | 120 | 1499 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Fitting Position Front Axle Payload for increased payload | 2018-05 - 2022-12 | 88 | 120 | 1499 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-09 - 2022-12 | 55 | 75 | 1560 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-09 - 2022-12 | 70 | 95 | 1560 | MPV |
| FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-09 - 2022-12 | 85 | 115 | 1560 | MPV |
| FORD TRANSIT CONNECT MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2015-08 - | 55 | 75 | 1499 | MPV |
| FORD TRANSIT CONNECT MPV Fitting Position Front Axle Payload for increased payload | 2018-05 - | 55 | 75 | 1499 | MPV |
| FORD TRANSIT CONNECT MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2015-05 - | 74 | 101 | 1499 | MPV |
| FORD TRANSIT CONNECT MPV Fitting Position Front Axle Payload for increased payload | 2018-05 - | 74 | 101 | 1499 | MPV |
| FORD TRANSIT CONNECT MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2015-05 - | 88 | 120 | 1499 | MPV |
| FORD TRANSIT CONNECT MPV Fitting Position Front Axle Payload for increased payload | 2018-05 - | 88 | 120 | 1499 | MPV |
| FORD TRANSIT CONNECT MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-09 - | 55 | 75 | 1560 | MPV |
| FORD TRANSIT CONNECT MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-09 - | 70 | 95 | 1560 | MPV |
| FORD TRANSIT CONNECT MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-09 - | 85 | 115 | 1560 | MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-09 - | 74 | 100 | 998 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Fitting Position Front Axle Payload for increased payload | 2021-05 - | 74 | 100 | 999 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-11 - | 110 | 150 | 1596 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2015-08 - | 55 | 75 | 1499 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Fitting Position Front Axle Payload for increased payload | 2018-05 - | 55 | 75 | 1499 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2016-03 - | 70 | 95 | 1499 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2015-05 - | 74 | 101 | 1499 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Fitting Position Front Axle Payload for increased payload | 2018-05 - | 74 | 101 | 1499 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2015-05 - | 88 | 120 | 1499 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Fitting Position Front Axle Payload for increased payload | 2018-05 - | 88 | 120 | 1499 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-09 - | 55 | 75 | 1560 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-09 - | 70 | 95 | 1560 | Box Body/MPV |
| FORD TRANSIT CONNECT V408 Box Body/MPV Construction Year from 201805 Fitting Position Front Axle Payload for increased payload | 2013-09 - | 85 | 115 | 1560 | Box Body/MPV |

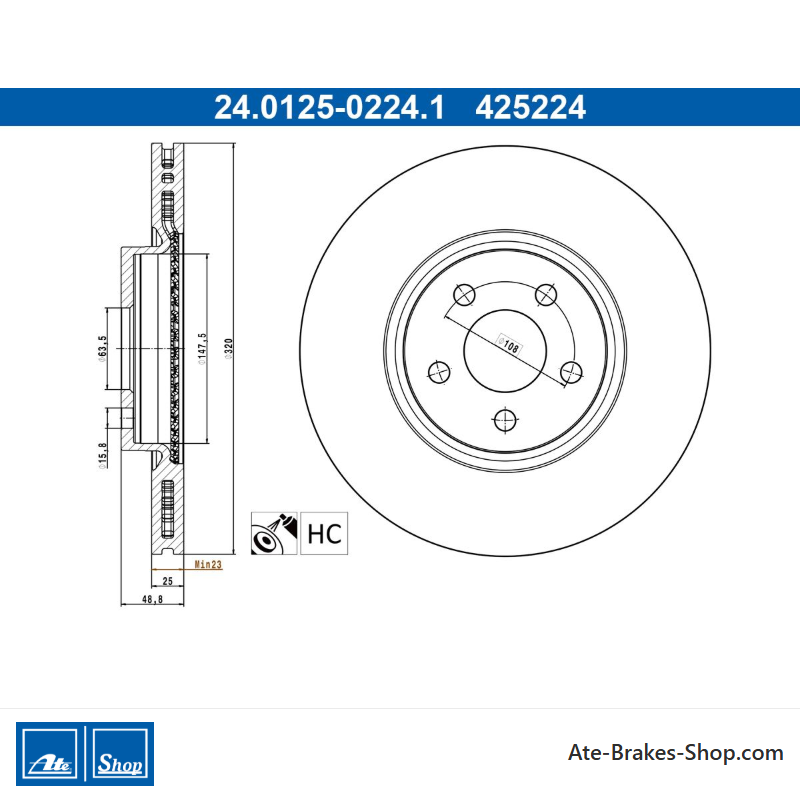

24.0125-0224.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Ford
- Handelsnummer
- 425224
- Land van Herkomst
- Italië
- Hoogte
- 48,8
- Buitendiameter [mm]
- 320,0
- Remschijfdikte [mm]
- 25,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 63,5
- Binnendiameter [mm]
- 147,5
- Bordiameter [mm]
- 15,8
- Minimale dikte [mm]
- 23,0
Specifieke referenties
- ean13
- 4006633470445
- MPN
- 2401250224102
ATE 24.0125-0224.1
(240125-02241)
- Buitendiameter [mm]: 320,0
- Binnendiameter [mm]: 147,5
- Remschijfdikte [mm]: 25,0
- Aantal bolt holes: 5
- Handelsnummer: 425224
