ATE Originele 2-delige remschijf (24012801191) voor Alfa Romeo
€ 130,68
(incl. btw)
€ 108,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0119.1
(240128-01191)
- Buitendiameter [mm]: 305,0
- Binnendiameter [mm]: 151,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 428119
Logistieke informatie:
- Ean Code: 4006633029643
- Gewicht: 16.77kg
Specification of ATE 24.0128-0119.1 / 240128-01191 / 24012801191:
| OE Number | Reference info |
| FIAT 60652186 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60670801 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO 147 (937_) Construction Year to 200309 Fitting Position Front Axle | 2003-02 - 2010-03 | 184 | 250 | 3179 | Hatchback |
| ALFA ROMEO 156 (932_) Construction Year to 200309 Fitting Position Front Axle | 2002-03 - 2005-09 | 184 | 250 | 3179 | Saloon |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200309 Fitting Position Front Axle | 2002-03 - 2006-05 | 184 | 250 | 3179 | Estate |
| ALFA ROMEO GTV (916_) Fitting Position Front Axle | 2000-10 - 2005-10 | 160 | 218 | 2959 | Coupe |
| ALFA ROMEO GTV (916_) Fitting Position Front Axle | 1996-10 - 2000-10 | 162 | 220 | 2959 | Coupe |
| ALFA ROMEO GTV (916_) Fitting Position Front Axle | 2003-04 - 2005-10 | 176 | 240 | 3179 | Coupe |
| ALFA ROMEO SPIDER (916_) Fitting Position Front Axle | 1995-06 - 2005-04 | 141 | 192 | 2959 | Convertible |
| ALFA ROMEO SPIDER (916_) Construction Year from 200010 Fitting Position Front Axle | 1994-09 - 2005-04 | 160 | 218 | 2959 | Convertible |
| ALFA ROMEO SPIDER (916_) Fitting Position Front Axle | 1999-01 - 2003-10 | 162 | 220 | 2959 | Convertible |
| ALFA ROMEO SPIDER (916_) Fitting Position Front Axle | 2003-04 - 2005-04 | 176 | 240 | 3179 | Convertible |

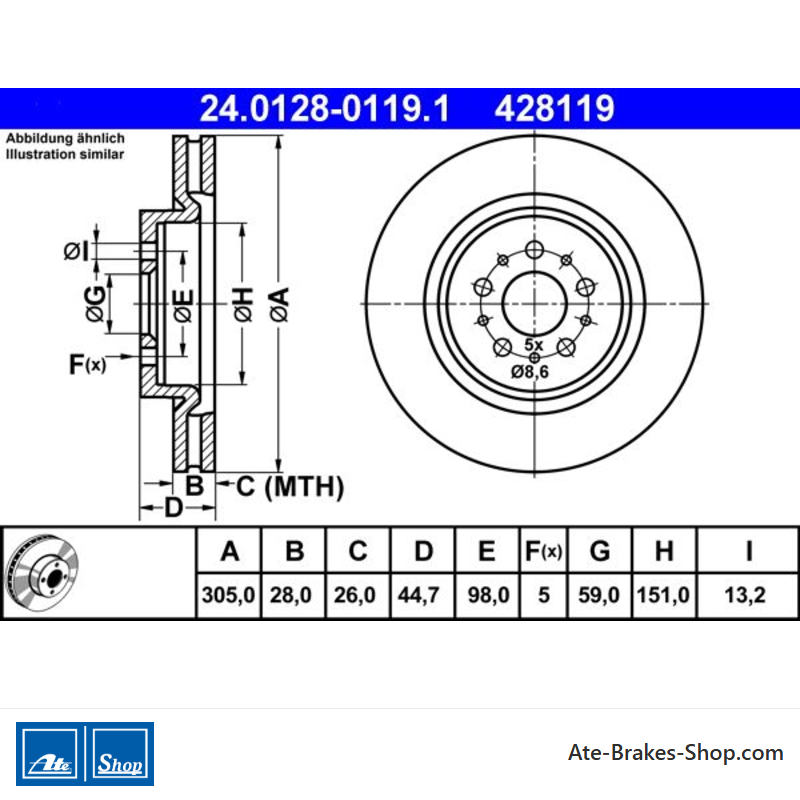

24.0128-0119.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Alfa Romeo
- Handelsnummer
- 428119
- Land van Herkomst
- Italië
- Hoogte
- 44,7
- Buitendiameter [mm]
- 305,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 98,0
- Centreringsdiameter [mm]
- 59,0
- Binnendiameter [mm]
- 151,0
- Bordiameter [mm]
- 13,2
- Minimale dikte [mm]
- 26,0
Specifieke referenties
- ean13
- 4006633029643
- MPN
- 2401280119102
ATE 24.0128-0119.1
(240128-01191)
- Buitendiameter [mm]: 305,0
- Binnendiameter [mm]: 151,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 428119
