ATE Originele remschijf (24012801631) voor Mercedes-Benz
€ 177,87
(incl. btw)
€ 147,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0163.1
(240128-01631)
- Buitendiameter [mm]: 312,0
- Binnendiameter [mm]: 155,2
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428163
Logistieke informatie:
- Ean Code: 4006633209502
- Gewicht: 8.99kg
Specification of ATE 24.0128-0163.1 / 240128-01631 / 24012801631:
| OE Number | Reference info |
| MERCEDES-BENZ 230 421 04 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 2304210412 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 230 421 04 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 2304210412 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MERCEDES-BENZ SL (R230) Construction Year to 201111 Fitting Position Front Axle | 2003-03 - 2012-01 | 180 | 245 | 3724 | Convertible |

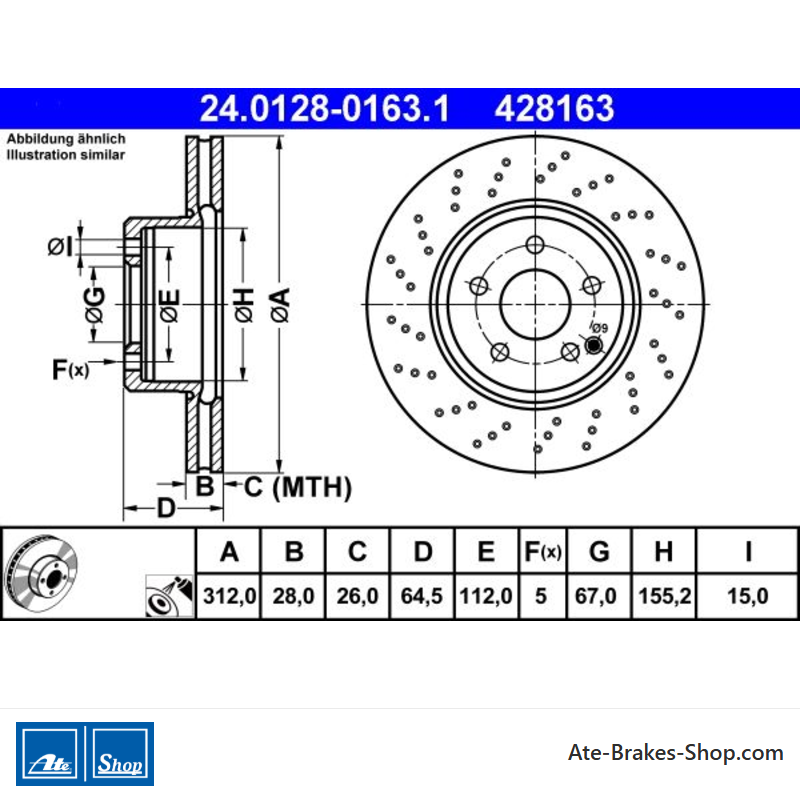

24.0128-0163.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mercedes-Benz
- Handelsnummer
- 428163
- Land van Herkomst
- China
- Hoogte
- 64,5
- Buitendiameter [mm]
- 312,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- geperforeerd/geventileerd
- Verwerking
- Gelegeerd/Hoog-koolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 67,0
- Binnendiameter [mm]
- 155,2
- Bordiameter [mm]
- 15,0
- Minimale dikte [mm]
- 26,0
Specifieke referenties
- ean13
- 4006633209502
- MPN
- 2401280163102
ATE 24.0128-0163.1
(240128-01631)
- Buitendiameter [mm]: 312,0
- Binnendiameter [mm]: 155,2
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428163
