ATE Originele remschijf (24012801981) voor BMW
€ 188,76
(incl. btw)
€ 156,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0198.1
(240128-01981)
- Buitendiameter [mm]: 315,0
- Binnendiameter [mm]: 152,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428198
Logistieke informatie:
- Ean Code: 4006633308670
- Gewicht: 8.06kg
Specification of ATE 24.0128-0198.1 / 240128-01981 / 24012801981:
| OE Number | Reference info |
| BMW 34 11 2 227 171 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34112227171 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 3 (E36) Fitting Position Front Axle Left | 1994-10 - 1995-07 | 210 | 286 | 2990 | Saloon |
| BMW 3 Coupe (E36) Fitting Position Front Axle Left | 1992-11 - 1995-07 | 210 | 286 | 2990 | Coupe |
| BMW 3 Coupe (E36) Fitting Position Front Axle Left | 1993-09 - 1995-05 | 217 | 295 | 2990 | Coupe |
| BMW 3 Convertible (E36) Fitting Position Front Axle Left | 1994-04 - 1995-07 | 210 | 286 | 2990 | Convertible |

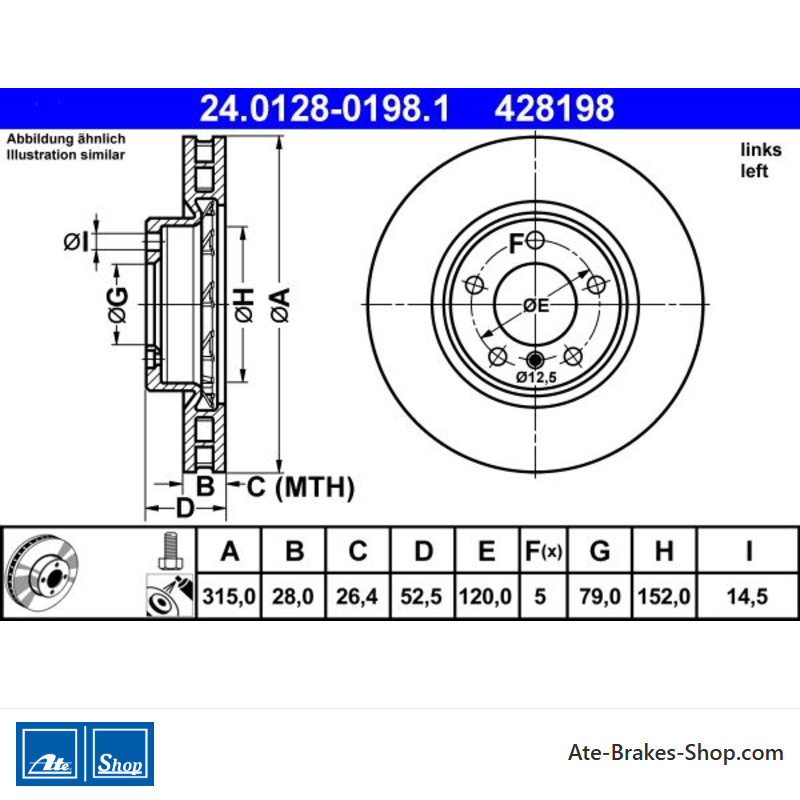

24.0128-0198.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 428198
- Land van Herkomst
- QU
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 52,5
- Buitendiameter [mm]
- 315,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 79,0
- Binnendiameter [mm]
- 152,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 26,4
Specifieke referenties
- ean13
- 4006633308670
- MPN
- 2401280198102
ATE 24.0128-0198.1
(240128-01981)
- Buitendiameter [mm]: 315,0
- Binnendiameter [mm]: 152,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428198
