ATE Originele remschijf (24012802042) voor BMW
€ 569,91
(incl. btw)
€ 471,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0204.2
(240128-02042)
- Buitendiameter [mm]: 315,0
- Binnendiameter [mm]: 155,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428204
Logistieke informatie:
- Ean Code: 4006633309042
- Gewicht: 7.57kg
Specification of ATE 24.0128-0204.2 / 240128-02042 / 24012802042:
| OE Number | Reference info |
| BMW 34 11 2 227 737 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34112227737 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 3 (E36) Fitting Position Front Axle Left | 1995-10 - 1998-01 | 236 | 321 | 3201 | Saloon |
| BMW 3 Coupe (E36) Fitting Position Front Axle Left | 1995-10 - 1998-11 | 236 | 321 | 3201 | Coupe |
| BMW 3 Convertible (E36) Fitting Position Front Axle Left | 1996-03 - 1999-09 | 236 | 321 | 3201 | Convertible |
| BMW Z3 Roadster (E36) Fitting Position Front Axle Left | 1998-02 - 2000-06 | 179 | 243 | 3152 | Convertible |
| BMW Z3 Roadster (E36) Fitting Position Front Axle Left | 1997-01 - 2000-06 | 236 | 321 | 3201 | Convertible |
| BMW Z3 Roadster (E36) Construction Year to 200212 Fitting Position Front Axle Left | 2001-06 - 2003-01 | 239 | 325 | 3246 | Convertible |
| BMW Z3 Coupe (E36) Fitting Position Front Axle Left | 1998-02 - 2000-06 | 176 | 239 | 3152 | Coupe |
| BMW Z3 Coupe (E36) Fitting Position Front Axle Left | 1998-02 - 2001-06 | 236 | 321 | 3201 | Coupe |
| BMW Z3 Coupe (E36) Construction Year to 200212 Fitting Position Front Axle Left | 2001-06 - 2003-06 | 239 | 325 | 3246 | Coupe |

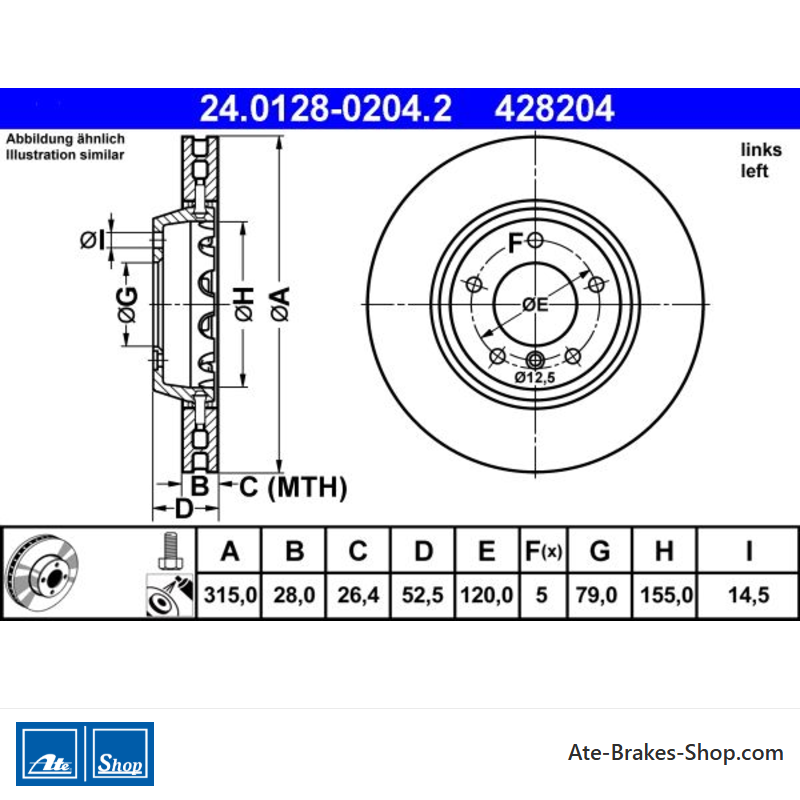

24.0128-0204.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 428204
- Land van Herkomst
- QU
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 52,5
- Buitendiameter [mm]
- 315,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
Tweedelige remschijf - Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 79,0
- Binnendiameter [mm]
- 155,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 26,4
Specifieke referenties
- ean13
- 4006633309042
- MPN
- 2401280204202
ATE 24.0128-0204.2
(240128-02042)
- Buitendiameter [mm]: 315,0
- Binnendiameter [mm]: 155,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428204
