ATE Originele 2-delige remschijf (24012802531) voor Fiat, Opel
€ 145,20
(incl. btw)
€ 120,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0253.1
(240128-02531)
- Buitendiameter [mm]: 305,0
- Binnendiameter [mm]: 127,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 428253
Logistieke informatie:
- Ean Code: 4006633381468
- Gewicht: 15.91kg
Specification of ATE 24.0128-0253.1 / 240128-02531 / 24012802531:
| OE Number | Reference info |
| FIAT 51854567 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51897455 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51914663 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52199580 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 69 087 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 569087 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95511283 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 69 087 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 569087 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 95511283 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2013-10 - | 88 | 120 | 1368 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2014-02 - | 88 | 120 | 1368 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2013-09 - | 88 | 120 | 1598 | Hatchback |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2010-04 - 2023-12 | 70 | 95 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2010-06 - 2023-12 | 88 | 120 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2013-11 - 2023-12 | 55 | 75 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2016-03 - 2023-12 | 59 | 80 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2011-02 - 2023-12 | 74 | 101 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 77 | 105 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2016-02 - 2023-12 | 88 | 120 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 99 | 135 | 1956 | Platform/Chassis |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 70 | 95 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 88 | 120 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2015-03 - 2023-12 | 70 | 95 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2016-03 - 2023-12 | 74 | 100 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2010-01 - 2023-12 | 77 | 105 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2015-03 - 2023-12 | 88 | 120 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2010-01 - 2023-12 | 99 | 135 | 1956 | Bus |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 70 | 95 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2010-06 - 2023-12 | 88 | 120 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2013-11 - 2023-12 | 55 | 75 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2016-03 - 2023-12 | 59 | 80 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2015-03 - 2023-12 | 70 | 95 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 74 | 100 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2010-02 - | 77 | 105 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2016-02 - 2023-12 | 88 | 120 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 99 | 135 | 1956 | Box Body/MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2012-02 - | 70 | 95 | 1368 | MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2015-03 - | 59 | 80 | 1248 | MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1248 | MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2016-03 - | 70 | 95 | 1248 | MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1598 | MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2015-03 - | 70 | 95 | 1598 | MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2012-02 - | 77 | 105 | 1598 | MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2015-03 - | 88 | 120 | 1598 | MPV |
| OPEL COMBO Tour (X12) Fitting Position Front Axle | 2012-02 - | 99 | 135 | 1956 | MPV |
| OPEL COMBO Box Body/MPV (X12) Fitting Position Front Axle | 2012-02 - | 70 | 95 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Construction Year from 201503 Fitting Position Front Axle | 2012-02 - | 59 | 80 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Fitting Position Front Axle | 2016-03 - | 70 | 95 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Fitting Position Front Axle | 2012-02 - | 74 | 101 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Fitting Position Front Axle | 2012-02 - | 77 | 105 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Fitting Position Front Axle | 2015-04 - | 88 | 120 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Fitting Position Front Axle | 2012-02 - | 99 | 135 | 1956 | Box Body/MPV |

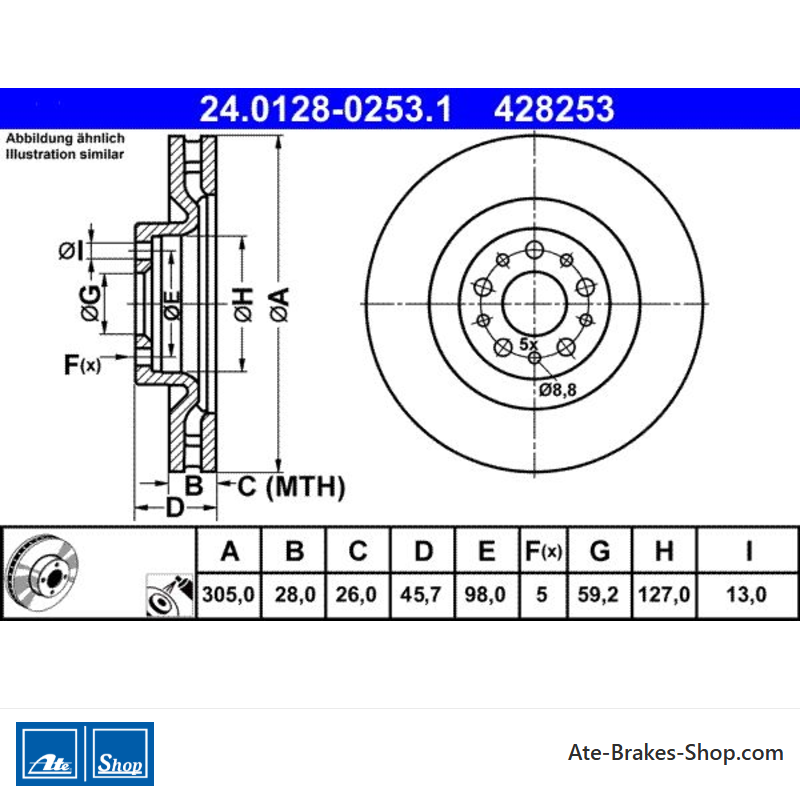

24.0128-0253.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Fiat
Opel - Handelsnummer
- 428253
- Land van Herkomst
- Italië
- Hoogte
- 45,7
- Buitendiameter [mm]
- 305,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Verwerking
- Gelegeerd/Hoog-koolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 98,0
- Centreringsdiameter [mm]
- 59,2
- Binnendiameter [mm]
- 127,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 26,0
Specifieke referenties
- ean13
- 4006633381468
- MPN
- 2401280253102
ATE 24.0128-0253.1
(240128-02531)
- Buitendiameter [mm]: 305,0
- Binnendiameter [mm]: 127,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 428253
