ATE Originele 2-delige remschijf (24012802701) voor Jeep
€ 141,57
(incl. btw)
€ 117,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0270.1
(240128-02701)
- Buitendiameter [mm]: 302,0
- Binnendiameter [mm]: 165,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 428270
Logistieke informatie:
- Ean Code: 4006633407472
- Gewicht: 15.82kg
Specification of ATE 24.0128-0270.1 / 240128-02701 / 24012802701:
| OE Number | Reference info |
| JEEP 0 5210 9938AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| JEEP 052109938AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| JEEP 5210 9938AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| JEEP 52109938AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| JEEP CHEROKEE (KK) Construction Year to 201212 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 2008-01 - | 151 | 205 | 3700 | Closed Off-Road Vehicle |
| JEEP CHEROKEE (KK) Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 2008-01 - 2012-08 | 157 | 213 | 3700 | Closed Off-Road Vehicle |
| JEEP CHEROKEE (KK) Construction Year to 201212 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 2008-05 - | 130 | 177 | 2777 | Closed Off-Road Vehicle |
| JEEP CHEROKEE (KK) Construction Year to 201212 Suspension for vehicles without heavy duty suspension Fitting Position Front Axle | 2010-01 - | 147 | 200 | 2777 | Closed Off-Road Vehicle |

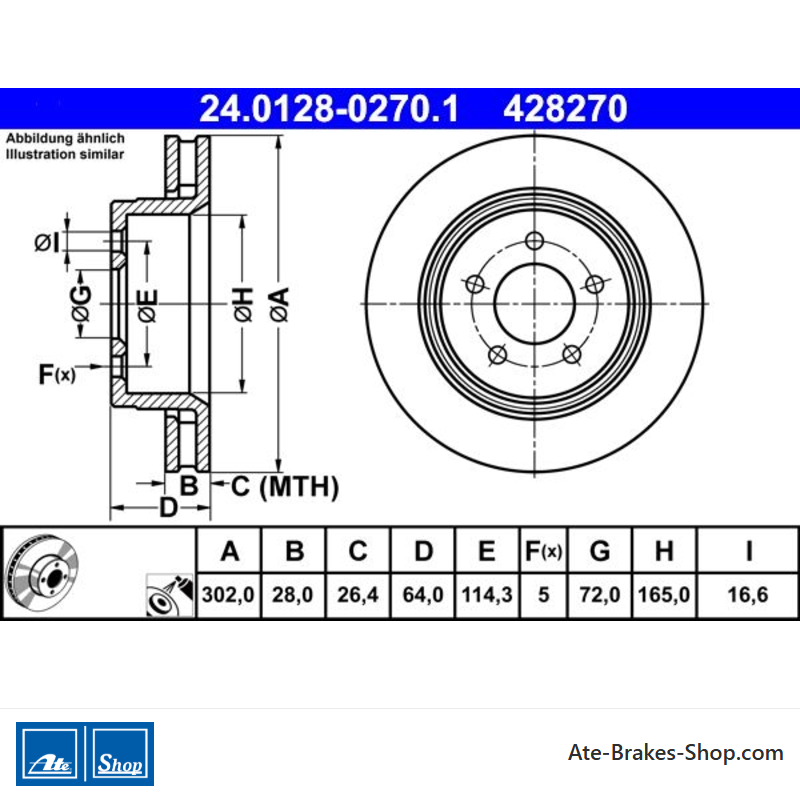

24.0128-0270.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Jeep
- Handelsnummer
- 428270
- Land van Herkomst
- China
- Hoogte
- 64,0
- Buitendiameter [mm]
- 302,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 72,0
- Binnendiameter [mm]
- 165,0
- Bordiameter [mm]
- 16,6
- Minimale dikte [mm]
- 26,4
Specifieke referenties
- ean13
- 4006633407472
- MPN
- 2401280270102
ATE 24.0128-0270.1
(240128-02701)
- Buitendiameter [mm]: 302,0
- Binnendiameter [mm]: 165,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 428270
