ATE Originele remschijf (24012802901) voor Chrysler, Fiat
€ 137,94
(incl. btw)
€ 114,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0290.1
(240128-02901)
- Buitendiameter [mm]: 302,0
- Binnendiameter [mm]: 165,5
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428290
Logistieke informatie:
- Ean Code: 4006633422451
- Gewicht: 8.64kg
Specification of ATE 24.0128-0290.1 / 240128-02901 / 24012802901:
| OE Number | Reference info |
| CHRYSLER 4721 933AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4721933AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4721 933AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04721933AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT K04721995AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT K04721995AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT K04779783AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT K04779783AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHRYSLER GRAND VOYAGER V (RT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2008-01 - | 125 | 170 | 3301 | MPV |
| CHRYSLER GRAND VOYAGER V (RT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2007-10 - | 142 | 193 | 3778 | MPV |
| CHRYSLER GRAND VOYAGER V (RT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2007-10 - | 120 | 163 | 2777 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 125 | 170 | 2360 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2016-12 | 206 | 280 | 3604 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 206 | 280 | 3604 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 100 | 136 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 103 | 140 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 120 | 163 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 120 | 163 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 125 | 170 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 125 | 170 | 1956 | MPV |

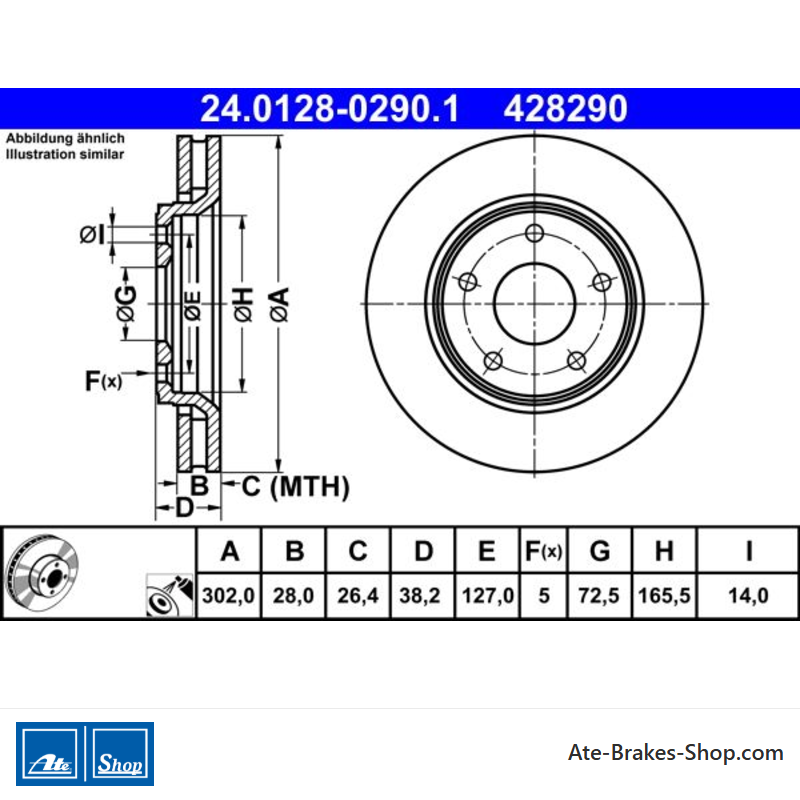

24.0128-0290.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Chrysler
Fiat - Handelsnummer
- 428290
- Land van Herkomst
- Duitsland
- Hoogte
- 38,2
- Buitendiameter [mm]
- 302,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 127,0
- Centreringsdiameter [mm]
- 72,5
- Binnendiameter [mm]
- 165,5
- Bordiameter [mm]
- 14,0
- Minimale dikte [mm]
- 26,4
Specifieke referenties
- ean13
- 4006633422451
- MPN
- 2401280290102
ATE 24.0128-0290.1
(240128-02901)
- Buitendiameter [mm]: 302,0
- Binnendiameter [mm]: 165,5
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428290
