ATE Originele remschijf (24012803021) voor Nissan, Renault
€ 137,94
(incl. btw)
€ 114,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0302.1
(240128-03021)
- Buitendiameter [mm]: 296,0
- Binnendiameter [mm]: 154,5
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 6
- Handelsnummer: 428302
Logistieke informatie:
- Ean Code: 4006633442961
- Gewicht: 9.02kg
Specification of ATE 24.0128-0302.1 / 240128-03021 / 24012803021:
| OE Number | Reference info |
| NISSAN 40206-4KJ1B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 40 20 64K J1B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 402064KJ1B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| NISSAN NAVARA Pickup (D23, D23T) Fitting Position Front Axle Construction Year to 201904 | 2015-01 - | 120 | 163 | 2298 | Pickup |
| NISSAN NAVARA Pickup (D23, D23T) Fitting Position Front Axle Construction Year to 201904 | 2015-01 - | 120 | 163 | 2298 | Pickup |
| NISSAN NAVARA Pickup (D23, D23T) Fitting Position Front Axle Construction Year to 201904 | 2015-01 - | 140 | 190 | 2298 | Pickup |
| NISSAN NAVARA Pickup (D23, D23T) Fitting Position Front Axle Construction Year to 201904 | 2015-10 - | 140 | 190 | 2298 | Pickup |
| NISSAN NAVARA Pickup (D23, D23T) Fitting Position Front Axle | 2014-07 - | 120 | 163 | 2488 | Pickup |
| NISSAN NAVARA NP300 Platform/Chassis (D23) Fitting Position Front Axle Construction Year to 201904 | 2015-01 - | 120 | 163 | 2298 | Platform/Chassis |
| RENAULT ALASKAN Fitting Position Front Axle | 2017-09 - | 120 | 163 | 2298 | Pickup |
| RENAULT ALASKAN Fitting Position Front Axle | 2017-09 - | 140 | 190 | 2298 | Pickup |

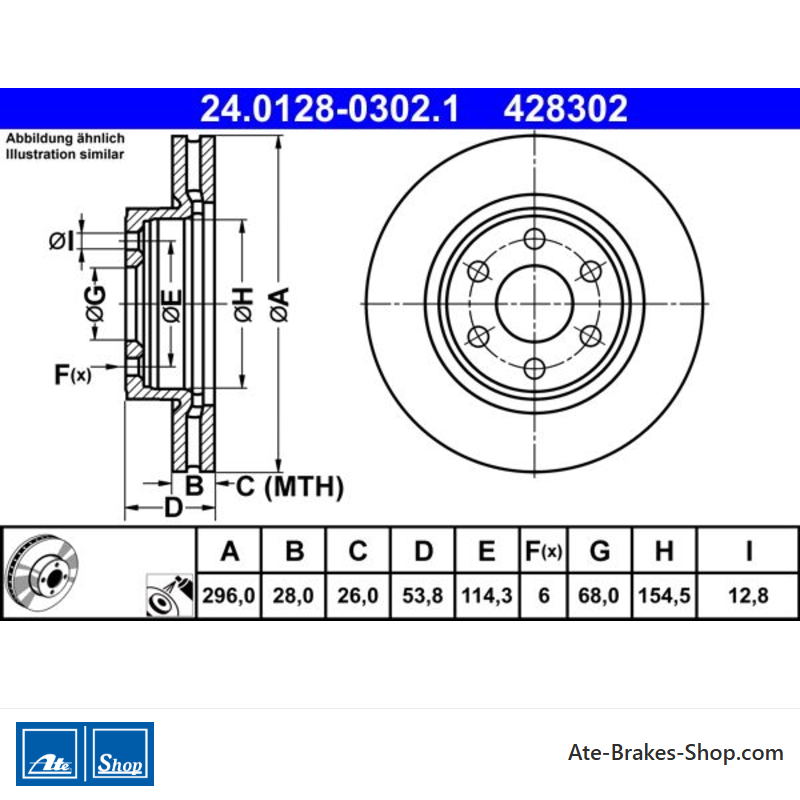

24.0128-0302.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Nissan
Renault - Handelsnummer
- 428302
- Land van Herkomst
- Italië
- Hoogte
- 53,8
- Buitendiameter [mm]
- 296,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Verwerking
- Gelegeerd/Hoog-koolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 68,0
- Binnendiameter [mm]
- 154,5
- Bordiameter [mm]
- 12,8
- Minimale dikte [mm]
- 26,0
Specifieke referenties
- ean13
- 4006633442961
- MPN
- 2401280302102
ATE 24.0128-0302.1
(240128-03021)
- Buitendiameter [mm]: 296,0
- Binnendiameter [mm]: 154,5
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 6
- Handelsnummer: 428302
