ATE Originele remschijf (24012803281) voor Jaguar
€ 188,76
(incl. btw)
€ 156,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0328.1
(240128-03281)
- Buitendiameter [mm]: 316,0
- Binnendiameter [mm]: 150,5
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428328
Logistieke informatie:
- Ean Code: 4006633486811
- Gewicht: 9.84kg
Specification of ATE 24.0128-0328.1 / 240128-03281 / 24012803281:
| OE Number | Reference info |
| JAGUAR T4N 1799 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| JAGUAR T4N1799 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| JAGUAR XE (X760) Fitting Position Front Axle Brake Size 16.5" | 2015-03 - | 147 | 200 | 1999 | Saloon |
| JAGUAR XE (X760) Fitting Position Front Axle Brake Size 16.5" | 2017-02 - | 147 | 200 | 1997 | Saloon |
| JAGUAR XE (X760) Fitting Position Front Axle Brake Size 16.5" | 2017-02 - | 184 | 250 | 1997 | Saloon |
| JAGUAR XE (X760) Fitting Position Front Axle Brake Size 16.5" | 2017-02 - | 184 | 250 | 1997 | Saloon |
| JAGUAR XE (X760) Fitting Position Front Axle Brake Size 16.5" | 2015-03 - | 177 | 241 | 1999 | Saloon |
| JAGUAR XE (X760) Fitting Position Front Axle Brake Size 16.5" | 2015-03 - | 120 | 163 | 1999 | Saloon |
| JAGUAR XE (X760) Fitting Position Front Axle Brake Size 16.5" | 2015-03 - | 132 | 180 | 1999 | Saloon |
| JAGUAR XE (X760) Fitting Position Front Axle Brake Size 16.5" | 2015-10 - | 132 | 180 | 1999 | Saloon |
| JAGUAR XE (X760) Fitting Position Front Axle Brake Size 16.5" | 2017-02 - | 177 | 241 | 1999 | Saloon |

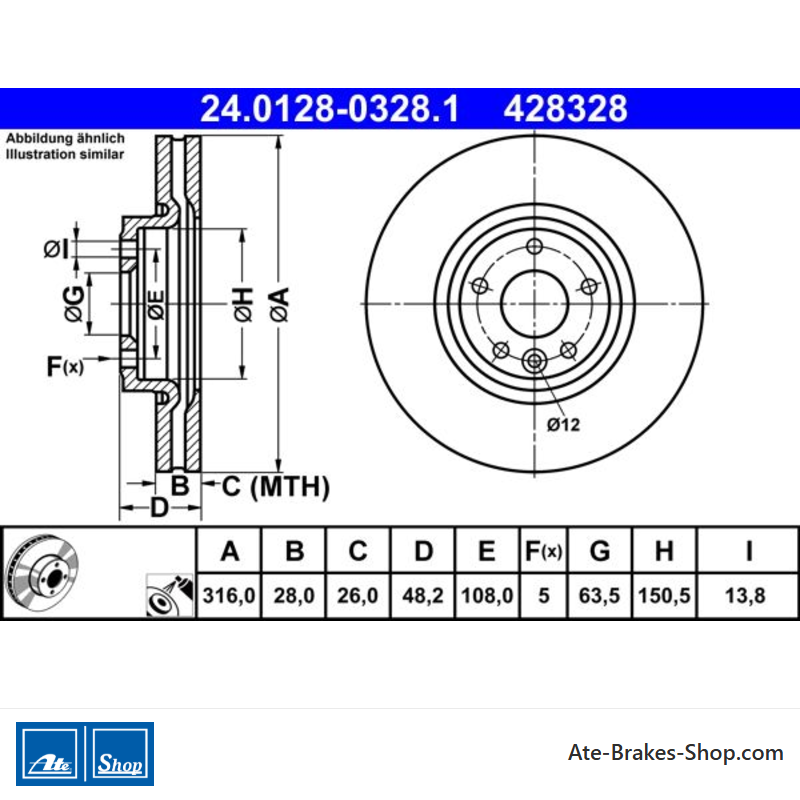

24.0128-0328.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Jaguar
- Handelsnummer
- 428328
- Land van Herkomst
- Italië
- Hoogte
- 48,2
- Buitendiameter [mm]
- 316,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 63,5
- Binnendiameter [mm]
- 150,5
- Bordiameter [mm]
- 13,8
- Minimale dikte [mm]
- 26,0
Specifieke referenties
- ean13
- 4006633486811
- MPN
- 2401280328102
ATE 24.0128-0328.1
(240128-03281)
- Buitendiameter [mm]: 316,0
- Binnendiameter [mm]: 150,5
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428328
