ATE Originele remschijf (24013001051) voor Ford
Onderdeelnummer:
ATE 24.0130-0105.1
(240130-01051)
- Buitendiameter [mm]: 322,0
- Binnendiameter [mm]: 178,0
- Remschijfdikte [mm]: 30,0
- Aantal bolt holes: 6
- Handelsnummer: 430105
Logistieke informatie:
- Ean Code: 4006633025201
- Gewicht: 16.16kg
Specification of ATE 24.0130-0105.1 / 240130-01051 / 24013001051:
| OE Number | Reference info |
| FORD 6172906 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD Cargo Construction Year from 198709 Fitting Position Front Axle | 1982-01 - 1996-01 | 63 | 86 | 4162 | Platform/Chassis |
| FORD Cargo Construction Year from 198709 Fitting Position Front Axle | 1982-01 - 1996-01 | 81 | 110 | 5851 | Platform/Chassis |
| FORD Cargo Construction Year from 198709 Fitting Position Front Axle | 1982-01 - 1996-01 | 63 | 86 | 4162 | Platform/Chassis |
| FORD Cargo Construction Year from 198709 Fitting Position Front Axle | 1982-01 - 1996-01 | 63 | 86 | 4162 | Dump Truck |
| FORD Cargo Construction Year from 198709 Fitting Position Front Axle | 1982-01 - 1996-01 | 81 | 110 | 5851 | Platform/Chassis |

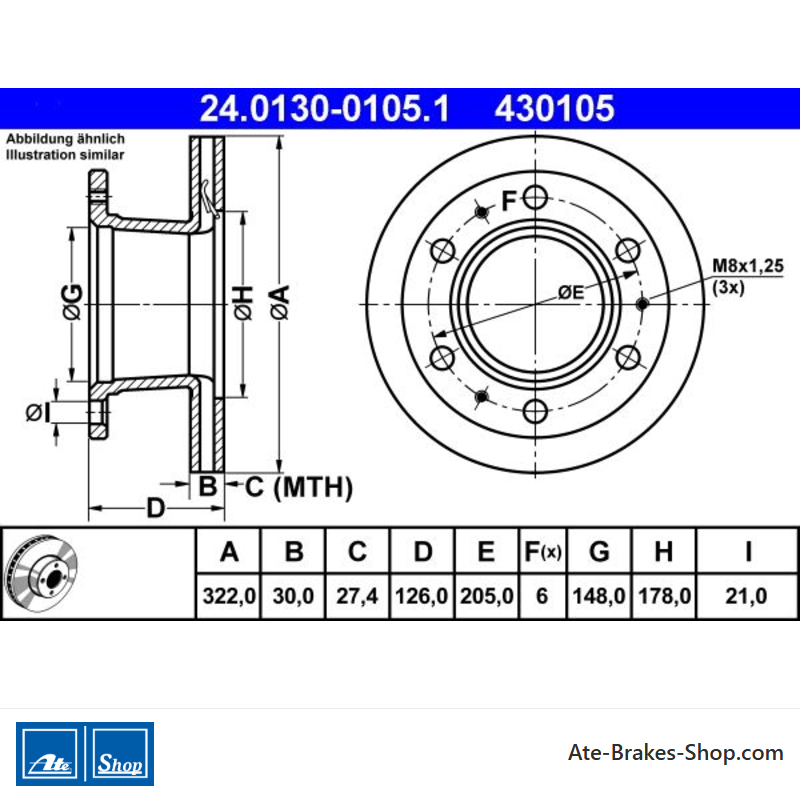

24.0130-0105.1
Datasheet
- Artikelstatus
- Stopgezet
- Automerk
- Ford
- Handelsnummer
- 430105
- Land van Herkomst
- Italië
- Hoogte
- 126,0
- Buitendiameter [mm]
- 322,0
- Remschijfdikte [mm]
- 30,0
- Type remschijf
- Geventileerd
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 205,0
- Centreringsdiameter [mm]
- 148,0
- Binnendiameter [mm]
- 178,0
- Bordiameter [mm]
- 21,0
- Minimale dikte [mm]
- 27,4
Specifieke referenties
- ean13
- 4006633025201
- MPN
- 2401300105102
ATE 24.0130-0105.1
(240130-01051)
- Buitendiameter [mm]: 322,0
- Binnendiameter [mm]: 178,0
- Remschijfdikte [mm]: 30,0
- Aantal bolt holes: 6
- Handelsnummer: 430105
