ATE Originele remschijf (24013001721) voor Mercedes-Benz
€ 206,91
(incl. btw)
€ 171,00 belastingexcl.
Onderdeelnummer:
ATE 24.0130-0172.1
(240130-01721)
- Buitendiameter [mm]: 304,0
- Binnendiameter [mm]: 154,0
- Remschijfdikte [mm]: 30,0
- Aantal bolt holes: 5
- Handelsnummer: 430172
Logistieke informatie:
- Ean Code: 4006633209588
- Gewicht: 9.59kg
Specification of ATE 24.0130-0172.1 / 240130-01721 / 24013001721:
| OE Number | Reference info |
| MERCEDES-BENZ 220 421 17 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 2204211712 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 220 421 17 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 2204211712 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MERCEDES-BENZ S-CLASS (W220, V220) Fitting Position Front Axle | 2003-06 - 2005-08 | 180 | 245 | 3724 | Saloon |
24.0130-0172.1

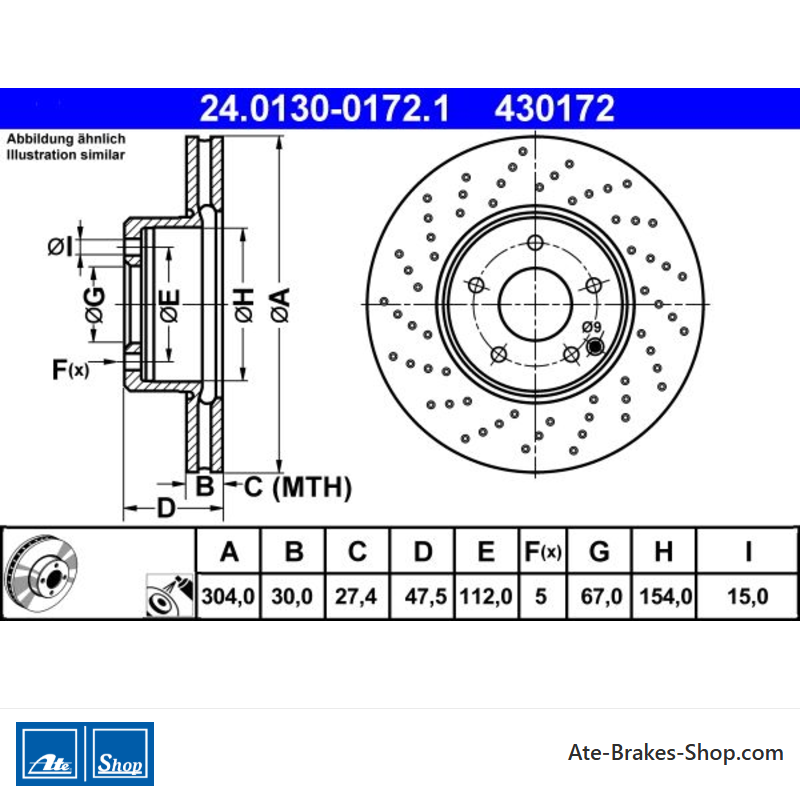

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mercedes-Benz
- Handelsnummer
- 430172
- Land van Herkomst
- QU
- Hoogte
- 47,5
- Buitendiameter [mm]
- 304,0
- Remschijfdikte [mm]
- 30,0
- Type remschijf
- geperforeerd/geventileerd
- Verwerking
- Gelegeerd/Hoog-koolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 67,0
- Binnendiameter [mm]
- 154,0
- Bordiameter [mm]
- 15,0
- Minimale dikte [mm]
- 27,4
Specifieke referenties
- ean13
- 4006633209588
- MPN
- 2401300172102
ATE 24.0130-0172.1
(240130-01721)
- Buitendiameter [mm]: 304,0
- Binnendiameter [mm]: 154,0
- Remschijfdikte [mm]: 30,0
- Aantal bolt holes: 5
- Handelsnummer: 430172
