ATE Originele remschijf (24013002241) voor Opel, Vauxhall
€ 174,24
(incl. btw)
€ 144,00 belastingexcl.
Onderdeelnummer:
ATE 24.0130-0224.1
(240130-02241)
- Buitendiameter [mm]: 321,0
- Binnendiameter [mm]: 160,0
- Remschijfdikte [mm]: 30,0
- Aantal bolt holes: 5
- Handelsnummer: 430224
Logistieke informatie:
- Ean Code: 4006633386609
- Gewicht: 10.22kg
Specification of ATE 24.0130-0224.1 / 240130-02241 / 24013002241:
| OE Number | Reference info |
| OPEL 13502826 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 69 077 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 569077 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 13586854 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 69 092 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 569092 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95527034 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 69 077 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 569077 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 69 092 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 569092 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 13502826 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 13586854 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 95527034 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2009-12 - 2015-10 | 64 | 87 | 1398 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2009-12 - 2015-10 | 74 | 100 | 1398 | Hatchback |
| OPEL ASTRA J (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 88 | 120 | 1364 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2009-12 - 2015-10 | 103 | 140 | 1364 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2012-01 - 2015-10 | 103 | 140 | 1364 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2009-12 - 2015-10 | 85 | 115 | 1598 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2012-12 - 2015-10 | 125 | 170 | 1598 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2009-12 - 2015-10 | 132 | 180 | 1598 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2009-12 - 2015-10 | 132 | 180 | 1598 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2009-12 - 2015-10 | 70 | 95 | 1248 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2014-02 - 2015-10 | 81 | 110 | 1598 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2013-11 - 2015-10 | 100 | 136 | 1598 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2009-09 - 2015-10 | 81 | 110 | 1686 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2009-12 - 2015-10 | 92 | 125 | 1686 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2011-07 - 2015-10 | 96 | 131 | 1686 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2009-09 - 2015-10 | 118 | 160 | 1956 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2011-06 - 2015-10 | 121 | 165 | 1956 | Hatchback |
| OPEL ASTRA J (P10) Fitting Position Front Axle | 2012-09 - 2015-10 | 143 | 194 | 1956 | Hatchback |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 64 | 87 | 1398 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 74 | 101 | 1398 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 88 | 120 | 1364 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Fitting Position Front Axle | 2011-12 - 2015-10 | 103 | 140 | 1364 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 103 | 140 | 1364 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 85 | 116 | 1598 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Fitting Position Front Axle | 2012-12 - 2015-10 | 125 | 170 | 1598 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 132 | 180 | 1598 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2014-10 | 70 | 95 | 1248 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Fitting Position Front Axle | 2014-02 - 2015-10 | 81 | 110 | 1598 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Fitting Position Front Axle | 2013-11 - 2015-10 | 100 | 136 | 1598 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 74 | 101 | 1686 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 81 | 110 | 1686 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 92 | 125 | 1686 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 96 | 131 | 1686 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Fitting Position Front Axle | 2014-01 - 2015-10 | 96 | 131 | 1956 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Construction Year from 201011 Fitting Position Front Axle | 2010-10 - 2015-10 | 118 | 160 | 1956 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Fitting Position Front Axle | 2011-08 - 2015-10 | 121 | 165 | 1956 | Estate |
| OPEL ASTRA J Sports Tourer (P10) Fitting Position Front Axle | 2012-09 - 2015-10 | 143 | 194 | 1956 | Estate |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2011-10 - 2013-11 | 74 | 101 | 1398 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2011-10 - 2018-04 | 88 | 120 | 1364 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2011-10 - 2018-04 | 103 | 140 | 1364 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2012-12 - 2018-04 | 125 | 170 | 1598 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2013-07 - 2018-04 | 147 | 200 | 1598 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2011-10 - 2013-06 | 132 | 180 | 1598 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2011-10 - 2013-10 | 103 | 140 | 1796 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2014-07 - 2018-04 | 81 | 110 | 1598 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2014-07 - 2018-04 | 100 | 136 | 1598 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2012-03 - 2013-10 | 81 | 110 | 1686 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2012-03 - 2014-06 | 96 | 131 | 1686 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2012-01 - 2015-10 | 96 | 131 | 1956 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2012-01 - 2015-06 | 121 | 165 | 1956 | Hatchback |
| OPEL ASTRA J GTC Fitting Position Front Axle | 2013-10 - 2015-06 | 143 | 194 | 1956 | Hatchback |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2012-06 - 2015-10 | 74 | 101 | 1398 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2012-06 - 2015-10 | 88 | 120 | 1364 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2012-06 - 2018-06 | 103 | 140 | 1364 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2014-07 - 2018-06 | 103 | 140 | 1364 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2012-06 - 2018-06 | 85 | 116 | 1598 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2012-06 - 2015-10 | 125 | 170 | 1598 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2012-06 - 2013-10 | 132 | 180 | 1598 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2012-06 - 2015-10 | 70 | 95 | 1248 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2014-04 - 2018-06 | 81 | 110 | 1598 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2014-01 - 2018-06 | 100 | 136 | 1598 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2012-06 - 2015-10 | 74 | 101 | 1686 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2012-06 - 2015-10 | 81 | 110 | 1686 | Saloon |
| OPEL ASTRA J Saloon Fitting Position Front Axle | 2012-06 - 2015-10 | 96 | 131 | 1686 | Saloon |
| OPEL CASCADA (W13) Fitting Position Front Axle | 2013-04 - 2018-04 | 88 | 120 | 1364 | Convertible |
| OPEL CASCADA (W13) Fitting Position Front Axle | 2013-03 - 2018-04 | 103 | 140 | 1364 | Convertible |
| OPEL CASCADA (W13) Fitting Position Front Axle | 2013-04 - 2019-04 | 125 | 170 | 1598 | Convertible |
| OPEL CASCADA (W13) Fitting Position Front Axle | 2018-05 - 2019-04 | 100 | 136 | 1598 | Convertible |
| OPEL CASCADA (W13) Fitting Position Front Axle | 2013-11 - 2018-04 | 147 | 200 | 1598 | Convertible |
| OPEL CASCADA (W13) Fitting Position Front Axle | 2013-04 - 2015-06 | 121 | 165 | 1956 | Convertible |
| OPEL CASCADA (W13) Fitting Position Front Axle | 2015-07 - 2018-04 | 125 | 170 | 1956 | Convertible |
| OPEL CASCADA (W13) Fitting Position Front Axle | 2013-04 - 2015-06 | 143 | 194 | 1956 | Convertible |
| OPEL ZAFIRA TOURER C (P12) Construction Year from 201111 Fitting Position Front Axle | 2011-10 - 2018-05 | 88 | 120 | 1364 | MPV |
| OPEL ZAFIRA TOURER C (P12) Construction Year from 201111 Fitting Position Front Axle | 2011-10 - 2018-05 | 103 | 140 | 1364 | MPV |
| OPEL ZAFIRA TOURER C (P12) Construction Year from 201111 Fitting Position Front Axle | 2011-10 - 2018-05 | 103 | 140 | 1364 | MPV |
| OPEL ZAFIRA TOURER C (P12) Construction Year from 201111 Fitting Position Front Axle | 2011-10 - 2018-05 | 110 | 150 | 1598 | MPV |
| OPEL ZAFIRA TOURER C (P12) Fitting Position Front Axle | 2018-09 - 2019-07 | 100 | 136 | 1598 | MPV |
| OPEL ZAFIRA TOURER C (P12) Fitting Position Front Axle | 2012-12 - 2019-03 | 125 | 170 | 1598 | MPV |
| OPEL ZAFIRA TOURER C (P12) Fitting Position Front Axle | 2013-07 - 2018-05 | 147 | 200 | 1598 | MPV |
| OPEL ZAFIRA TOURER C (P12) Construction Year from 201111 Fitting Position Front Axle | 2011-10 - 2015-06 | 85 | 115 | 1796 | MPV |
| OPEL ZAFIRA TOURER C (P12) Construction Year from 201111 Fitting Position Front Axle | 2011-10 - 2018-05 | 103 | 140 | 1796 | MPV |
| OPEL ZAFIRA TOURER C (P12) Fitting Position Front Axle | 2014-07 - 2018-11 | 88 | 120 | 1598 | MPV |
| OPEL ZAFIRA TOURER C (P12) Fitting Position Front Axle | 2013-07 - 2019-03 | 99 | 134 | 1598 | MPV |
| OPEL ZAFIRA TOURER C (P12) Construction Year from 201303 Fitting Position Front Axle | 2013-02 - 2016-05 | 100 | 136 | 1598 | MPV |
| OPEL ZAFIRA TOURER C (P12) Construction Year from 201111 Fitting Position Front Axle | 2011-10 - 2014-10 | 81 | 110 | 1956 | MPV |
| OPEL ZAFIRA TOURER C (P12) Fitting Position Front Axle | 2011-10 - 2018-11 | 96 | 130 | 1956 | MPV |
| OPEL ZAFIRA TOURER C (P12) Fitting Position Front Axle | 2011-10 - 2014-10 | 121 | 165 | 1956 | MPV |
| OPEL ZAFIRA TOURER C (P12) Fitting Position Front Axle | 2014-11 - 2019-03 | 125 | 170 | 1956 | MPV |
| OPEL ZAFIRA TOURER C (P12) Fitting Position Front Axle | 2013-01 - 2014-10 | 143 | 194 | 1956 | MPV |
| OPEL ASTRA J Hatchback Van (P10) Fitting Position Front Axle | 2014-01 - 2015-10 | 81 | 110 | 1598 | Hatchback Van |
| OPEL ASTRA J Hatchback Van (P10) Fitting Position Front Axle | 2013-05 - 2015-10 | 100 | 136 | 1598 | Hatchback Van |
| OPEL ASTRA J Hatchback Van (P10) Fitting Position Front Axle | 2013-05 - 2015-10 | 81 | 110 | 1686 | Hatchback Van |
| OPEL ASTRA J Estate Van (P10) Fitting Position Front Axle | 2012-10 - 2015-10 | 70 | 95 | 1248 | Estate Van |
| OPEL ASTRA J Estate Van (P10) Fitting Position Front Axle | 2014-01 - 2015-10 | 81 | 110 | 1598 | Estate Van |
| OPEL ASTRA J Estate Van (P10) Fitting Position Front Axle | 2012-10 - 2015-10 | 96 | 131 | 1686 | Estate Van |
| OPEL ASTRA J Estate Van (P10) Fitting Position Front Axle | 2012-10 - 2015-10 | 121 | 165 | 1956 | Estate Van |
| OPEL ZAFIRA TOURER C VAN (P12) Fitting Position Front Axle | 2013-01 - 2014-10 | 81 | 110 | 1956 | Box Body/MPV |
| OPEL ZAFIRA TOURER C VAN (P12) Fitting Position Front Axle | 2012-01 - 2014-10 | 96 | 131 | 1956 | Box Body/MPV |
| OPEL ZAFIRA TOURER C VAN (P12) Fitting Position Front Axle | 2013-01 - 2014-10 | 121 | 165 | 1956 | Box Body/MPV |
| VAUXHALL ZAFIRA TOURER Mk III (P12) Fitting Position Front Axle | 2013-02 - 2016-05 | 100 | 136 | 1598 | MPV |

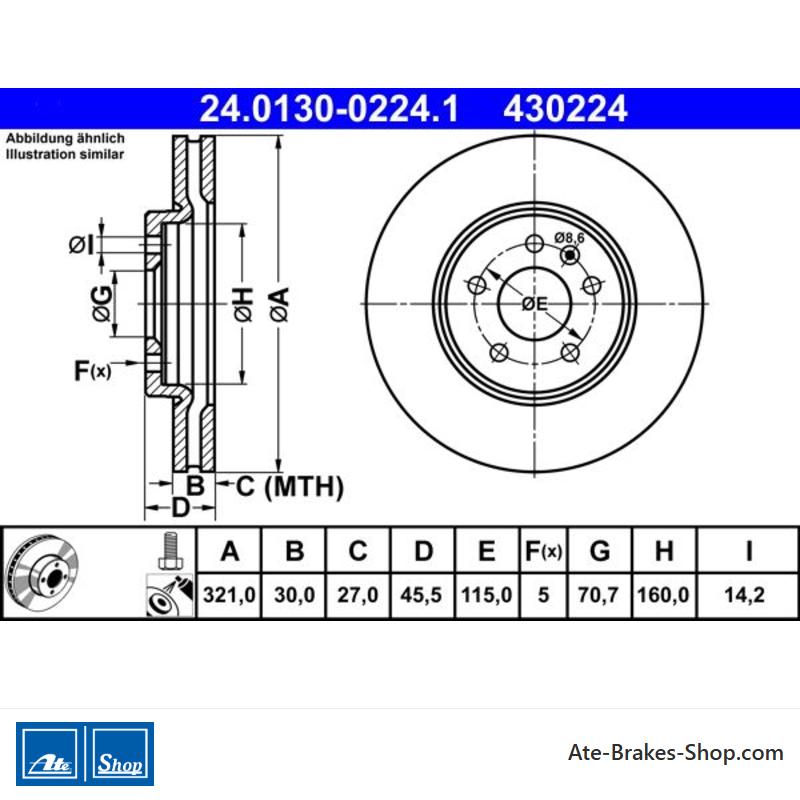

24.0130-0224.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Opel
Vauxhall - Handelsnummer
- 430224
- Land van Herkomst
- Duitsland
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 45,5
- Buitendiameter [mm]
- 321,0
- Remschijfdikte [mm]
- 30,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 115,0
- Centreringsdiameter [mm]
- 70,7
- Binnendiameter [mm]
- 160,0
- Bordiameter [mm]
- 14,2
- Minimale dikte [mm]
- 27,0
Specifieke referenties
- ean13
- 4006633386609
- MPN
- 2401300224102
ATE 24.0130-0224.1
(240130-02241)
- Buitendiameter [mm]: 321,0
- Binnendiameter [mm]: 160,0
- Remschijfdikte [mm]: 30,0
- Aantal bolt holes: 5
- Handelsnummer: 430224
