ATE Originele remschijf (24013201401) voor Porsche
€ 348,48
(incl. btw)
€ 288,00 belastingexcl.
Onderdeelnummer:
ATE 24.0132-0140.1
(240132-01401)
- Buitendiameter [mm]: 304,0
- Binnendiameter [mm]: 172,0
- Remschijfdikte [mm]: 32,0
- Aantal bolt holes: 5
- Handelsnummer: 432140
Logistieke informatie:
- Ean Code: 4006633221528
- Gewicht: 7.27kg
Specification of ATE 24.0132-0140.1 / 240132-01401 / 24013201401:
| OE Number | Reference info |
| PORSCHE 930 351 047 02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PORSCHE 93035104702 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| PORSCHE 911 Fitting Position Front Axle Left | 1986-06 - 1989-08 | 221 | 300 | 3299 | Coupe |
| PORSCHE 911 Construction Year from 198101 Fitting Position Front Axle Left | 1977-09 - 1987-06 | 221 | 301 | 3299 | Coupe |
| PORSCHE 911 Fitting Position Front Axle Left | 1986-09 - 1990-11 | 243 | 330 | 3299 | Coupe |

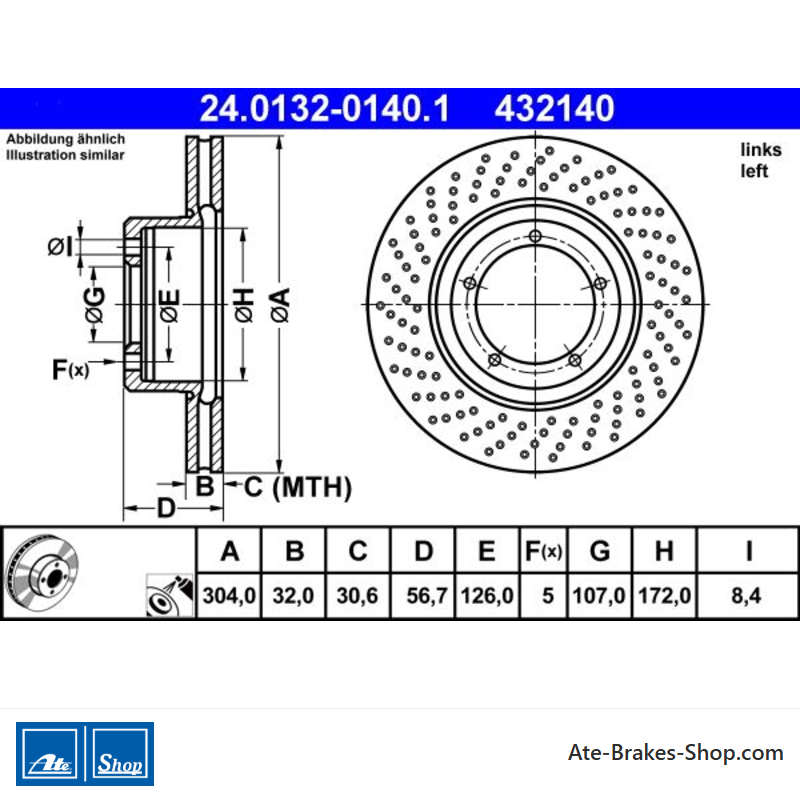

24.0132-0140.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Porsche
- Handelsnummer
- 432140
- Land van Herkomst
- Duitsland
- Hoogte
- 56,7
- Buitendiameter [mm]
- 304,0
- Remschijfdikte [mm]
- 32,0
- Type remschijf
- geperforeerd/geventileerd
- Verwerking
- Gelegeerd/Hoog-koolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 126,0
- Centreringsdiameter [mm]
- 107,0
- Binnendiameter [mm]
- 172,0
- Bordiameter [mm]
- 8,4
- Minimale dikte [mm]
- 30,6
Specifieke referenties
- ean13
- 4006633221528
- MPN
- 2401320140102
ATE 24.0132-0140.1
(240132-01401)
- Buitendiameter [mm]: 304,0
- Binnendiameter [mm]: 172,0
- Remschijfdikte [mm]: 32,0
- Aantal bolt holes: 5
- Handelsnummer: 432140
