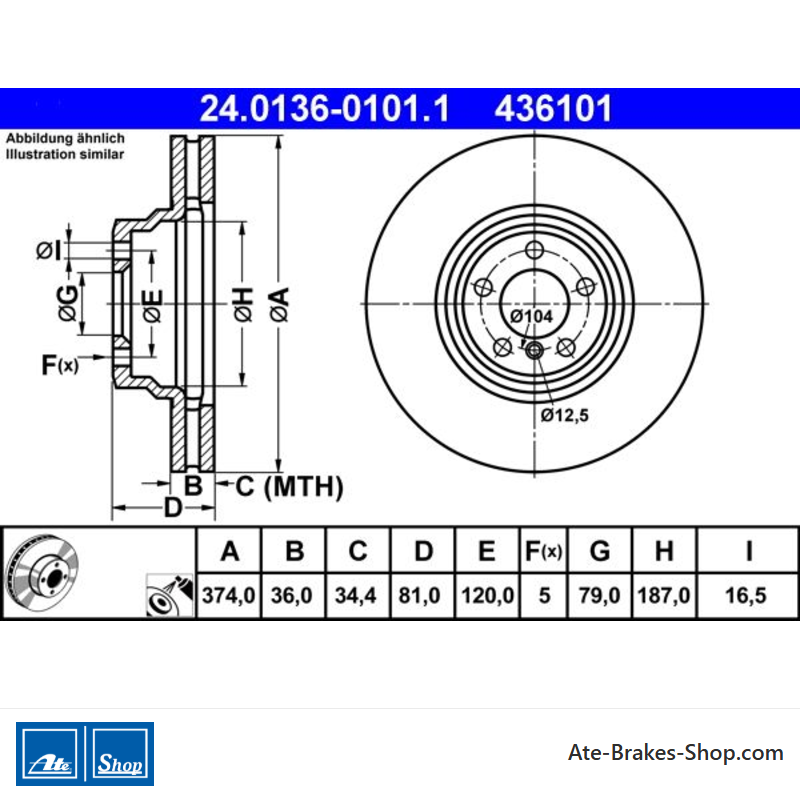

ATE Originele remschijf (24013601011) voor BMW
€ 254,10
(incl. btw)
€ 210,00 belastingexcl.
Onderdeelnummer:
ATE 24.0136-0101.1
(240136-01011)
- Buitendiameter [mm]: 374,0
- Binnendiameter [mm]: 187,0
- Remschijfdikte [mm]: 36,0
- Aantal bolt holes: 5
- Handelsnummer: 436101
Logistieke informatie:
- Ean Code: 4006633219990
- Gewicht: 15.41kg
Specification of ATE 24.0136-0101.1 / 240136-01011 / 24013601011:
| OE Number | Reference info |
| BMW 34 11 6 753 091 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34116753091 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 11 6 766 107 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34116766107 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 7 (E65, E66, E67) Construction Year from 200303 Fitting Position Front Axle Country Specific Design Europe | 2003-01 - 2008-08 | 327 | 445 | 5972 | Saloon |
| BMW 7 (E65, E66, E67) Fitting Position Front Axle | 2005-03 - 2005-08 | 220 | 300 | 4423 | Saloon |
| BMW 7 (E65, E66, E67) Fitting Position Front Axle | 2005-07 - 2008-07 | 242 | 329 | 4423 | Saloon |
24.0136-0101.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 436101
- Land van Herkomst
- China
- Hoogte
- 81,0
- Buitendiameter [mm]
- 374,0
- Remschijfdikte [mm]
- 36,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 79,0
- Binnendiameter [mm]
- 187,0
- Bordiameter [mm]
- 16,5
- Minimale dikte [mm]
- 34,4
Specifieke referenties
- ean13
- 4006633219990
- MPN
- 2401360101102
ATE 24.0136-0101.1
(240136-01011)
- Buitendiameter [mm]: 374,0
- Binnendiameter [mm]: 187,0
- Remschijfdikte [mm]: 36,0
- Aantal bolt holes: 5
- Handelsnummer: 436101
