ATE Originele remschijf (24013601041) voor BMW
€ 217,80
(incl. btw)
€ 180,00 belastingexcl.
Onderdeelnummer:
ATE 24.0136-0104.1
(240136-01041)
- Buitendiameter [mm]: 356,0
- Binnendiameter [mm]: 158,0
- Remschijfdikte [mm]: 36,0
- Aantal bolt holes: 5
- Handelsnummer: 436104
Logistieke informatie:
- Ean Code: 4006633235495
- Gewicht: 14.14kg
Specification of ATE 24.0136-0104.1 / 240136-01041 / 24013601041:
| OE Number | Reference info |
| BMW 34 11 6 756 847 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34116756847 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW X5 (E53) Special Purpose Vehicle for special-purpose vehicles Fitting Position Front Axle | 2003-10 - 2006-10 | 235 | 320 | 4398 | SUV |
| BMW X5 (E53) Fitting Position Front Axle | 2001-10 - 2003-09 | 255 | 347 | 4619 | SUV |
| BMW X5 (E53) Fitting Position Front Axle | 2004-04 - 2006-09 | 265 | 360 | 4799 | SUV |

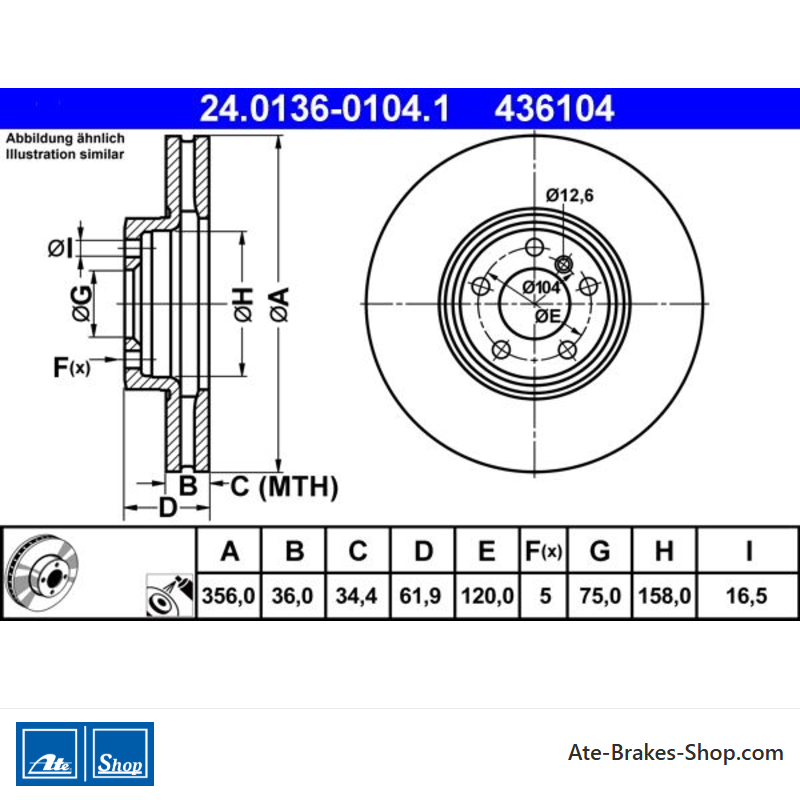

24.0136-0104.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 436104
- Land van Herkomst
- QU
- Hoogte
- 61,9
- Buitendiameter [mm]
- 356,0
- Remschijfdikte [mm]
- 36,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 75,0
- Binnendiameter [mm]
- 158,0
- Bordiameter [mm]
- 16,5
- Minimale dikte [mm]
- 34,4
Specifieke referenties
- ean13
- 4006633235495
- MPN
- 2401360104102
ATE 24.0136-0104.1
(240136-01041)
- Buitendiameter [mm]: 356,0
- Binnendiameter [mm]: 158,0
- Remschijfdikte [mm]: 36,0
- Aantal bolt holes: 5
- Handelsnummer: 436104
