ATE Originele remschijf (24013601071) voor Audi
€ 373,89
(incl. btw)
€ 309,00 belastingexcl.
Onderdeelnummer:
ATE 24.0136-0107.1
(240136-01071)
- Buitendiameter [mm]: 385,0
- Binnendiameter [mm]: 135,0
- Remschijfdikte [mm]: 36,0
- Aantal bolt holes: 5
- Handelsnummer: 436107
Logistieke informatie:
- Ean Code: 4006633308830
- Gewicht: 18.06kg

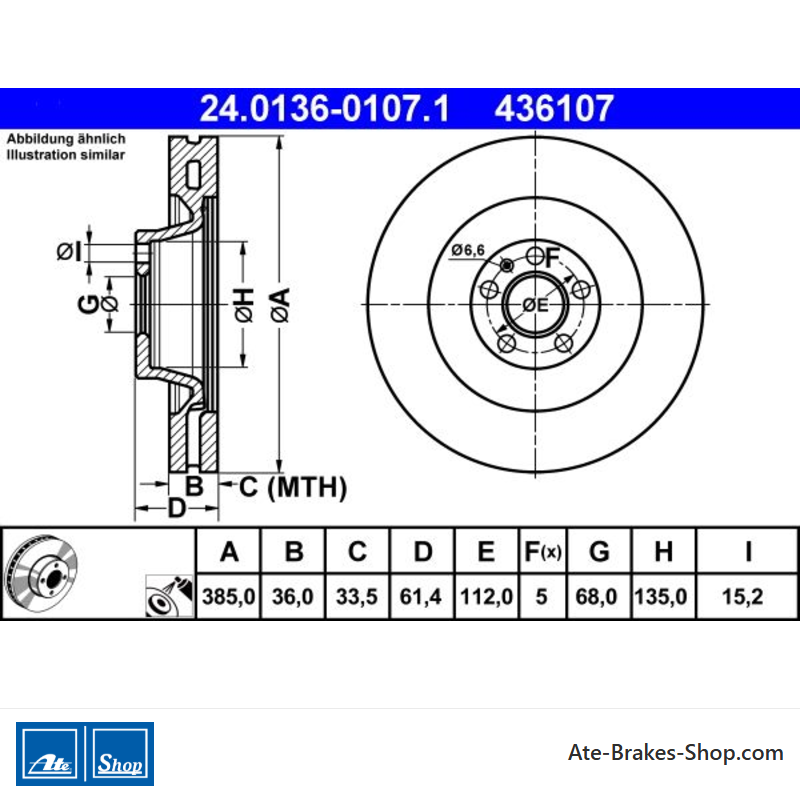

Specification of ATE 24.0136-0107.1 / 240136-01071 / 24013601071:
| OE Number | Reference info |
| VAG 4F0 615 301 J | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4F0615301J | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI A6 C6 (4F2) Fitting Position Front Axle | 2006-03 - 2011-03 | 320 | 435 | 5204 | Saloon |
| AUDI A6 C6 Avant (4F5) Fitting Position Front Axle | 2006-03 - 2011-08 | 320 | 435 | 5204 | Estate |
24.0136-0107.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Audi
- Handelsnummer
- 436107
- Land van Herkomst
- Duitsland
- Hoogte
- 61,4
- Buitendiameter [mm]
- 385,0
- Remschijfdikte [mm]
- 36,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 68,0
- Binnendiameter [mm]
- 135,0
- Bordiameter [mm]
- 15,2
- Minimale dikte [mm]
- 33,5
Specifieke referenties
- ean13
- 4006633308830
- MPN
- 2401360107102
ATE 24.0136-0107.1
(240136-01071)
- Buitendiameter [mm]: 385,0
- Binnendiameter [mm]: 135,0
- Remschijfdikte [mm]: 36,0
- Aantal bolt holes: 5
- Handelsnummer: 436107
