ATE Originale zweiteilige Bremsscheibe (24011601091) für Volkswagen (VW)
112,53 €
(inkl. MwSt.)
93,00 € Steuerexzl.
Teilenummer:
ATE 24.0116-0109.1
(240116-01091)
- Außendurchmesser [mm]: 258,0
- Innendurchmesser [mm]: 135,0
- Bremsscheibendicke [mm]: 16,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 416109
Logistische Informationen:
- Ean-Code: 4006633138888
- Gewicht: 11.14kg
Specification of ATE 24.0116-0109.1 / 240116-01091 / 24011601091:
| OE Number | Reference info |
| VAG 251 407 615 Q | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407615Q | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 615 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407615B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1984-11 - 1992-07 | 57 | 78 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 82 | 112 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 69 | 1588 | Van |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-02 - 1992-07 | 57 | 78 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-01 - 1992-07 | 82 | 112 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 70 | 1588 | Bus |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1984-12 - 1992-07 | 57 | 78 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 82 | 112 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 69 | 1588 | Platform/Chassis |

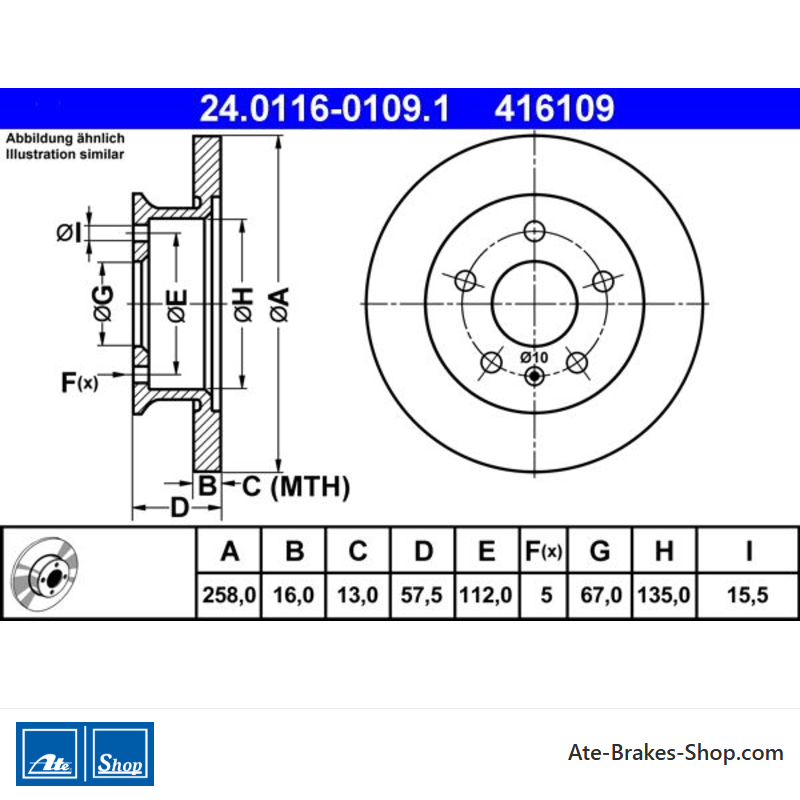

24.0116-0109.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Volkswagen (VW)
- Handelsnummer
- 416109
- Herkunftsland
- Tschechien
- Höhe
- 57,5
- Außendurchmesser [mm]
- 258,0
- Bremsscheibendicke [mm]
- 16,0
- Bremsscheibentyp
- Solide
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 112,0
- Zentrierungsdurchmesser [mm]
- 67,0
- Innendurchmesser [mm]
- 135,0
- Bohrdurchmesser [mm]
- 15,5
- Mindestdicke [mm]
- 13,0
Spezifische Referenzen
- ean13
- 4006633138888
- Hersteller-Teilenummer (MPN)
- 2401160109101
ATE 24.0116-0109.1
(240116-01091)
- Außendurchmesser [mm]: 258,0
- Innendurchmesser [mm]: 135,0
- Bremsscheibendicke [mm]: 16,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 416109
