ATE Originele 2-delige remschijf (24011601091) voor Volkswagen (VW)
€ 112,53
(incl. btw)
€ 93,00 belastingexcl.
Onderdeelnummer:
ATE 24.0116-0109.1
(240116-01091)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 135,0
- Remschijfdikte [mm]: 16,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 416109
Logistieke informatie:
- Ean Code: 4006633138888
- Gewicht: 11.14kg
Specification of ATE 24.0116-0109.1 / 240116-01091 / 24011601091:
| OE Number | Reference info |
| VAG 251 407 615 Q | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407615Q | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 615 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407615B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1984-11 - 1992-07 | 57 | 78 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 82 | 112 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 69 | 1588 | Van |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-02 - 1992-07 | 57 | 78 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-01 - 1992-07 | 82 | 112 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 70 | 1588 | Bus |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1984-12 - 1992-07 | 57 | 78 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 82 | 112 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 69 | 1588 | Platform/Chassis |

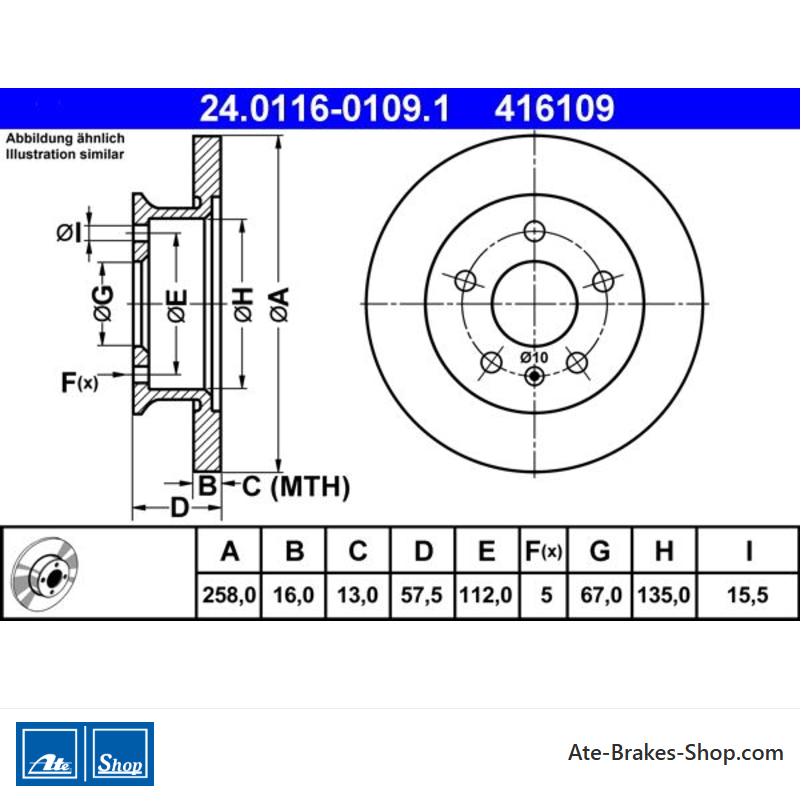

24.0116-0109.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 416109
- Land van Herkomst
- Tsjechië
- Hoogte
- 57,5
- Buitendiameter [mm]
- 258,0
- Remschijfdikte [mm]
- 16,0
- Type remschijf
- Solide
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 67,0
- Binnendiameter [mm]
- 135,0
- Bordiameter [mm]
- 15,5
- Minimale dikte [mm]
- 13,0
Specifieke referenties
- ean13
- 4006633138888
- MPN
- 2401160109101
ATE 24.0116-0109.1
(240116-01091)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 135,0
- Remschijfdikte [mm]: 16,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 416109
