ATE Disco de freno original de 2 piezas (24011601091) para Volkswagen (VW)
112,53 €
(impuestos inc.)
93,00 € fiscales excl.
Número de parte:
ATE 24.0116-0109.1
(240116-01091)
- Diámetro exterior [mm]: 258,0
- Diámetro interior [mm]: 135,0
- Grosor del disco de freno [mm]: 16,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 416109
Información logística:
- Código Ean: 4006633138888
- Peso: 11.14kg
Specification of ATE 24.0116-0109.1 / 240116-01091 / 24011601091:
| OE Number | Reference info |
| VAG 251 407 615 Q | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407615Q | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 615 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407615B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1984-11 - 1992-07 | 57 | 78 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 82 | 112 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 69 | 1588 | Van |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-02 - 1992-07 | 57 | 78 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-01 - 1992-07 | 82 | 112 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 70 | 1588 | Bus |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1984-12 - 1992-07 | 57 | 78 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 82 | 112 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 69 | 1588 | Platform/Chassis |

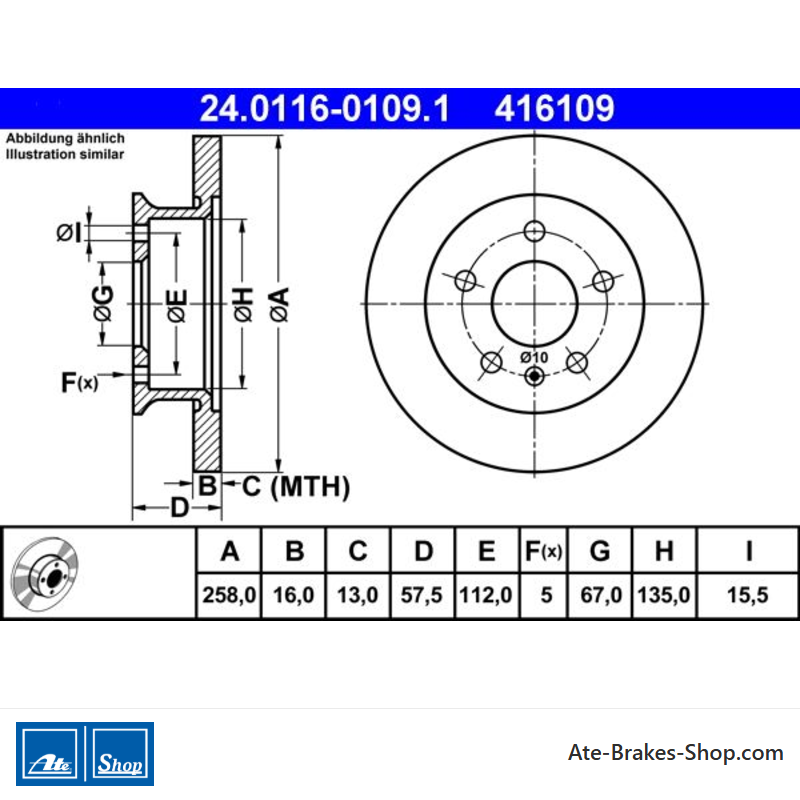

24.0116-0109.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Volkswagen (VW)
- Número de Comercio
- 416109
- País de origen
- Chequia
- Altura
- 57,5
- Diámetro exterior [mm]
- 258,0
- Grosor del disco de freno [mm]
- 16,0
- Tipo de disco de freno
- sólido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 112,0
- Diámetro de centrado [mm]
- 67,0
- Diámetro interior [mm]
- 135,0
- Diámetro del diámetro del diámetro [mm]
- 15,5
- Espesor mínimo [mm]
- 13,0
Referencias específicas
- ean13
- 4006633138888
- MPN
- 2401160109101
ATE 24.0116-0109.1
(240116-01091)
- Diámetro exterior [mm]: 258,0
- Diámetro interior [mm]: 135,0
- Grosor del disco de freno [mm]: 16,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 416109
