ATE Originale zweiteilige Bremsscheibe (24012801891) für Toyota
search
  • ATE Originale zweiteilige Bremsscheibe (24012801891) für Toyota
  • ATE Originale zweiteilige Bremsscheibe (24012801891) für Toyota
  • ATE Originale zweiteilige Bremsscheibe (24012801891) für Toyota

ATE Originale zweiteilige Bremsscheibe (24012801891) für Toyota

116,16 € (inkl. MwSt.)

96,00 € Steuerexzl.

Teilenummer:

ATE 24.0128-0189.1
(240128-01891)

  • Außendurchmesser [mm]: 285,0
  • Innendurchmesser [mm]: 149,0
  • Bremsscheibendicke [mm]: 28,0
  • Anzahl der Bolzenlöcher: 6
  • 2 Teile Bremsscheiben
  • Handelsnummer: 428189
Logistische Informationen:
84,0Klicken Sie hier für detaillierte Informationen.
  • Ean-Code: 4006633292726
  • Gewicht: 15.39kg
Menge

Specification of ATE 24.0128-0189.1 / 240128-01891 / 24012801891:

OE NumberReference info
TOYOTA 43512-26140Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
TOYOTA 43512-26160Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
TOYOTA HIACE IV Bus (_H1_)

Construction Year from 199508

Fitting Position Front Axle		1989-08 - 1998-04741011998Bus
TOYOTA HIACE IV Van (_H1_)

Fitting Position Front Axle		1989-08 - 1998-07851162438Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2003-11851162438Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Construction Year to 199804

Fitting Position Front Axle		1995-08 - 2004-08881202438Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		1998-04 - 2005-061051432694Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0855752446Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0858792446Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0866902446Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		2001-08 - 2006-0865882494Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		2006-09 - 2012-1270952494Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		2001-08 - 2006-08751022494Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		2006-09 - 2012-12861172494Van
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 1998-04851152438Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		1998-04 - 2001-111051432694Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Construction Year to 200606

Fitting Position Front Axle		1998-07 - 2006-121061442694Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0855752446Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0858792446Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0866902446Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		2001-08 - 2006-0865882494Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		2006-09 - 2012-1270952494Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		2001-08 - 2006-08751022494Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		2001-11 - 2006-08751022494Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Construction Year from 200609

Fitting Position Front Axle		2006-08 - 2012-12861172494Bus
TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)

Fitting Position Front Axle		2006-09 -70952494Van
TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)

Fitting Position Front Axle		2004-06 -751022494Van
TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)

Fitting Position Front Axle		2006-09 -861172494Van
TOYOTA HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)

Fitting Position Front Axle		2006-09 -751022494Bus

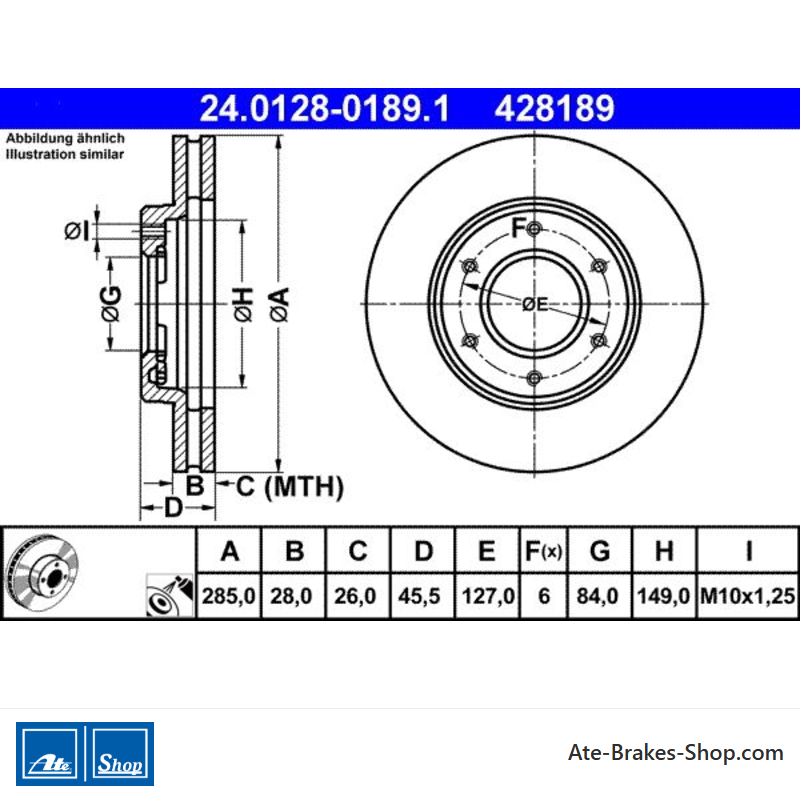

24.0128-0189.1

Datenblatt

Artikelstatus
Bestellbar
Automarke
Toyota
Handelsnummer
428189
Herkunftsland
Italien
Höhe
45,5
Außendurchmesser [mm]
285,0
Bremsscheibendicke [mm]
28,0
Bremsscheibentyp
Entlüftet
Oberfläche
Coated
Anzahl der Schraublöcher
6
Bolzenlochdurchmesser [mm]
127,0
Zentrierungsdurchmesser [mm]
84,0
Innendurchmesser [mm]
149,0
Gewindegröße
M10x1,25
Mindestdicke [mm]
26,0

Spezifische Referenzen

ean13
4006633292726
Hersteller-Teilenummer (MPN)
2401280189102
