ATE Originele 2-delige remschijf (24012801891) voor Toyota
search
  • ATE Originele 2-delige remschijf (24012801891) voor Toyota
  • ATE Originele 2-delige remschijf (24012801891) voor Toyota
  • ATE Originele 2-delige remschijf (24012801891) voor Toyota

ATE Originele 2-delige remschijf (24012801891) voor Toyota

€ 116,16 (incl. btw)

€ 96,00 belastingexcl.

Onderdeelnummer:

ATE 24.0128-0189.1
(240128-01891)

  • Buitendiameter [mm]: 285,0
  • Binnendiameter [mm]: 149,0
  • Remschijfdikte [mm]: 28,0
  • Aantal bolt holes: 6
  • 2 stukken remschijf
  • Handelsnummer: 428189
Logistieke informatie:
84,0Klik hier voor gedetailleerde informatie.
  • Ean Code: 4006633292726
  • Gewicht: 15.39kg
Aantal

Specification of ATE 24.0128-0189.1 / 240128-01891 / 24012801891:

OE NumberReference info
TOYOTA 43512-26140Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
TOYOTA 43512-26160Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
TOYOTA HIACE IV Bus (_H1_)

Construction Year from 199508

Fitting Position Front Axle		1989-08 - 1998-04741011998Bus
TOYOTA HIACE IV Van (_H1_)

Fitting Position Front Axle		1989-08 - 1998-07851162438Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2003-11851162438Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Construction Year to 199804

Fitting Position Front Axle		1995-08 - 2004-08881202438Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		1998-04 - 2005-061051432694Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0855752446Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0858792446Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0866902446Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		2001-08 - 2006-0865882494Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		2006-09 - 2012-1270952494Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		2001-08 - 2006-08751022494Van
TOYOTA HIACE IV Van (__H1_, __H2_)

Fitting Position Front Axle		2006-09 - 2012-12861172494Van
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 1998-04851152438Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		1998-04 - 2001-111051432694Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Construction Year to 200606

Fitting Position Front Axle		1998-07 - 2006-121061442694Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0855752446Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0858792446Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		1995-08 - 2001-0866902446Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		2001-08 - 2006-0865882494Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		2006-09 - 2012-1270952494Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		2001-08 - 2006-08751022494Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Fitting Position Front Axle		2001-11 - 2006-08751022494Bus
TOYOTA HIACE IV Bus (__H1_, __H2_)

Construction Year from 200609

Fitting Position Front Axle		2006-08 - 2012-12861172494Bus
TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)

Fitting Position Front Axle		2006-09 -70952494Van
TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)

Fitting Position Front Axle		2004-06 -751022494Van
TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)

Fitting Position Front Axle		2006-09 -861172494Van
TOYOTA HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)

Fitting Position Front Axle		2006-09 -751022494Bus

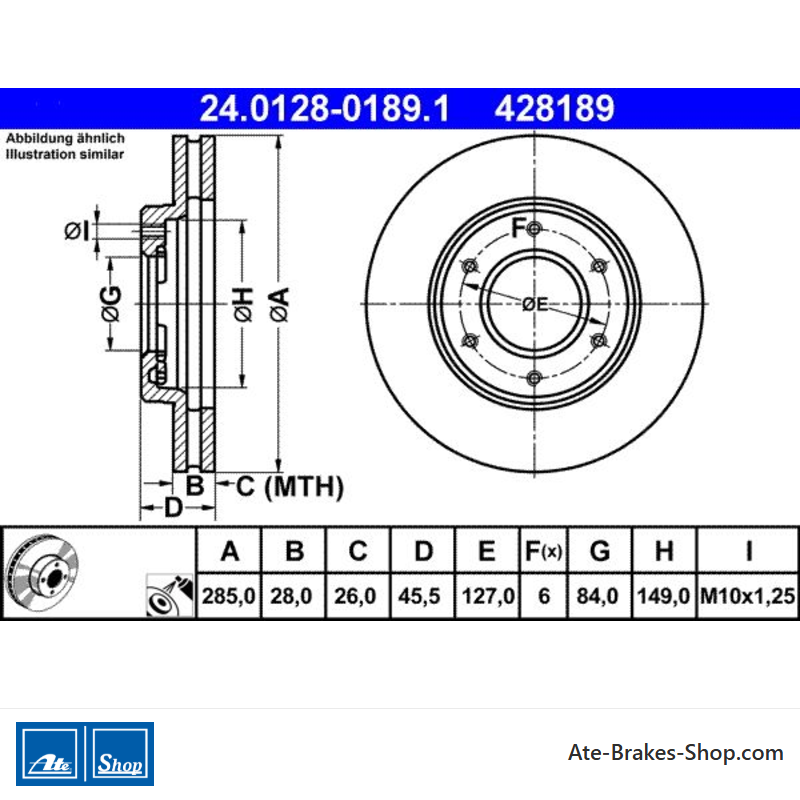

24.0128-0189.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Toyota
Handelsnummer
428189
Land van Herkomst
Italië
Hoogte
45,5
Buitendiameter [mm]
285,0
Remschijfdikte [mm]
28,0
Type remschijf
Geventileerd
Oppervlakte
Gecoate
Aantal boltgaten
6
Diameter van het schroefgat [mm]
127,0
Centreringsdiameter [mm]
84,0
Binnendiameter [mm]
149,0
Draadmaat
M10x1,25
Minimale dikte [mm]
26,0

Specifieke referenties

ean13
4006633292726
MPN
2401280189102
