ATE Disque de frein original en 2 pièces (24012801891) pour Toyota
116,16 €
TTC
96,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0128-0189.1
(240128-01891)
- Diamètre extérieur [mm] : 285,0
- Diamètre intérieur [mm] : 149,0
- Épaisseur du disque de frein [mm] : 28,0
- Nombre de trous de boulon : 6
- 2 pièces de disque de frein
- Numéro de trade : 428189
Informations logistiques :
- Code Ean : 4006633292726
- Poids : 15.39kg
Specification of ATE 24.0128-0189.1 / 240128-01891 / 24012801891:
| OE Number | Reference info |
| TOYOTA 43512-26140 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-26160 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA HIACE IV Bus (_H1_) Construction Year from 199508 Fitting Position Front Axle | 1989-08 - 1998-04 | 74 | 101 | 1998 | Bus |
| TOYOTA HIACE IV Van (_H1_) Fitting Position Front Axle | 1989-08 - 1998-07 | 85 | 116 | 2438 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2003-11 | 85 | 116 | 2438 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Construction Year to 199804 Fitting Position Front Axle | 1995-08 - 2004-08 | 88 | 120 | 2438 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1998-04 - 2005-06 | 105 | 143 | 2694 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 55 | 75 | 2446 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 58 | 79 | 2446 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 66 | 90 | 2446 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 65 | 88 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 70 | 95 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 75 | 102 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 86 | 117 | 2494 | Van |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 1998-04 | 85 | 115 | 2438 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1998-04 - 2001-11 | 105 | 143 | 2694 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Construction Year to 200606 Fitting Position Front Axle | 1998-07 - 2006-12 | 106 | 144 | 2694 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 55 | 75 | 2446 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 58 | 79 | 2446 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 66 | 90 | 2446 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 65 | 88 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 70 | 95 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 75 | 102 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2001-11 - 2006-08 | 75 | 102 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Construction Year from 200609 Fitting Position Front Axle | 2006-08 - 2012-12 | 86 | 117 | 2494 | Bus |
| TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2006-09 - | 70 | 95 | 2494 | Van |
| TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2004-06 - | 75 | 102 | 2494 | Van |
| TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2006-09 - | 86 | 117 | 2494 | Van |
| TOYOTA HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2006-09 - | 75 | 102 | 2494 | Bus |

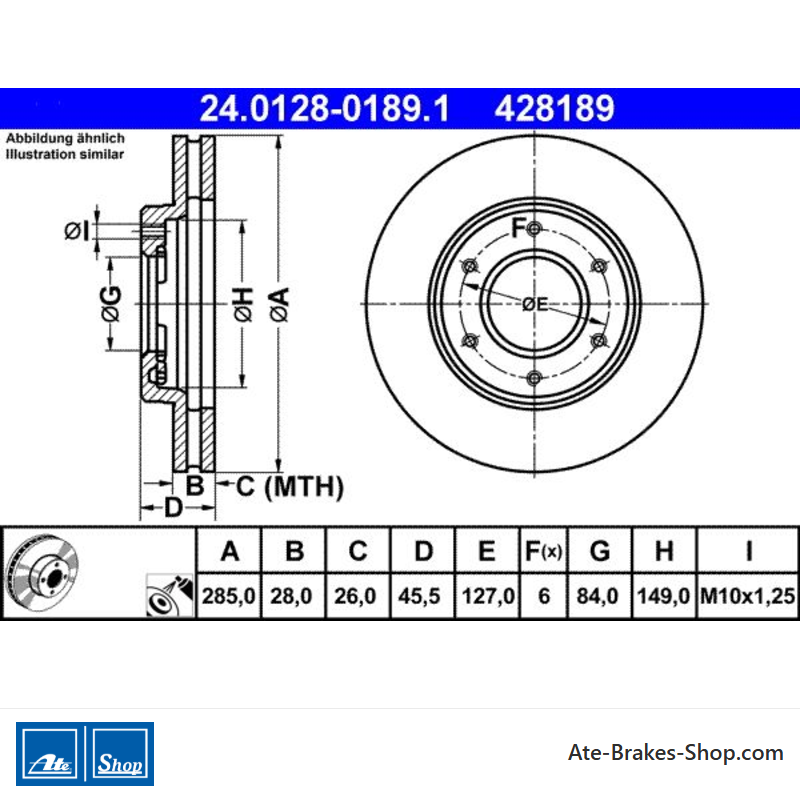

24.0128-0189.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Toyota
- Numéro de trade
- 428189
- Pays d’origine
- Italie
- Hauteur
- 45,5
- Diamètre extérieur [mm]
- 285,0
- Épaisseur du disque de frein [mm]
- 28,0
- Type à disque de frein
- Ventilé
- Surface
- Enduit
- Nombre de trous de boulons
- 6
- Diamètre du trou de boulon [mm]
- 127,0
- Diamètre de centrage [mm]
- 84,0
- Diamètre intérieur [mm]
- 149,0
- Taille du filetage
- M10x1,25
- Épaisseur minimale [mm]
- 26,0
Références spécifiques
- EAN-13
- 4006633292726
- MPN
- 2401280189102
ATE 24.0128-0189.1
(240128-01891)
- Diamètre extérieur [mm] : 285,0
- Diamètre intérieur [mm] : 149,0
- Épaisseur du disque de frein [mm] : 28,0
- Nombre de trous de boulon : 6
- 2 pièces de disque de frein
- Numéro de trade : 428189
