ATE Disco de freno original de 2 piezas (24012801891) para Toyota
116,16 €
(impuestos inc.)
96,00 € fiscales excl.
Número de parte:
ATE 24.0128-0189.1
(240128-01891)
- Diámetro exterior [mm]: 285,0
- Diámetro interior [mm]: 149,0
- Grosor del disco de freno [mm]: 28,0
- Número de agujeros de perno: 6
- 2 piezas de disco de freno
- Número de intercambio: 428189
Información logística:
- Código Ean: 4006633292726
- Peso: 15.39kg
Specification of ATE 24.0128-0189.1 / 240128-01891 / 24012801891:
| OE Number | Reference info |
| TOYOTA 43512-26140 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-26160 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA HIACE IV Bus (_H1_) Construction Year from 199508 Fitting Position Front Axle | 1989-08 - 1998-04 | 74 | 101 | 1998 | Bus |
| TOYOTA HIACE IV Van (_H1_) Fitting Position Front Axle | 1989-08 - 1998-07 | 85 | 116 | 2438 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2003-11 | 85 | 116 | 2438 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Construction Year to 199804 Fitting Position Front Axle | 1995-08 - 2004-08 | 88 | 120 | 2438 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1998-04 - 2005-06 | 105 | 143 | 2694 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 55 | 75 | 2446 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 58 | 79 | 2446 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 66 | 90 | 2446 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 65 | 88 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 70 | 95 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 75 | 102 | 2494 | Van |
| TOYOTA HIACE IV Van (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 86 | 117 | 2494 | Van |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 1998-04 | 85 | 115 | 2438 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1998-04 - 2001-11 | 105 | 143 | 2694 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Construction Year to 200606 Fitting Position Front Axle | 1998-07 - 2006-12 | 106 | 144 | 2694 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 55 | 75 | 2446 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 58 | 79 | 2446 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 1995-08 - 2001-08 | 66 | 90 | 2446 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 65 | 88 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2006-09 - 2012-12 | 70 | 95 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2001-08 - 2006-08 | 75 | 102 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Fitting Position Front Axle | 2001-11 - 2006-08 | 75 | 102 | 2494 | Bus |
| TOYOTA HIACE IV Bus (__H1_, __H2_) Construction Year from 200609 Fitting Position Front Axle | 2006-08 - 2012-12 | 86 | 117 | 2494 | Bus |
| TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2006-09 - | 70 | 95 | 2494 | Van |
| TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2004-06 - | 75 | 102 | 2494 | Van |
| TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2006-09 - | 86 | 117 | 2494 | Van |
| TOYOTA HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) Fitting Position Front Axle | 2006-09 - | 75 | 102 | 2494 | Bus |

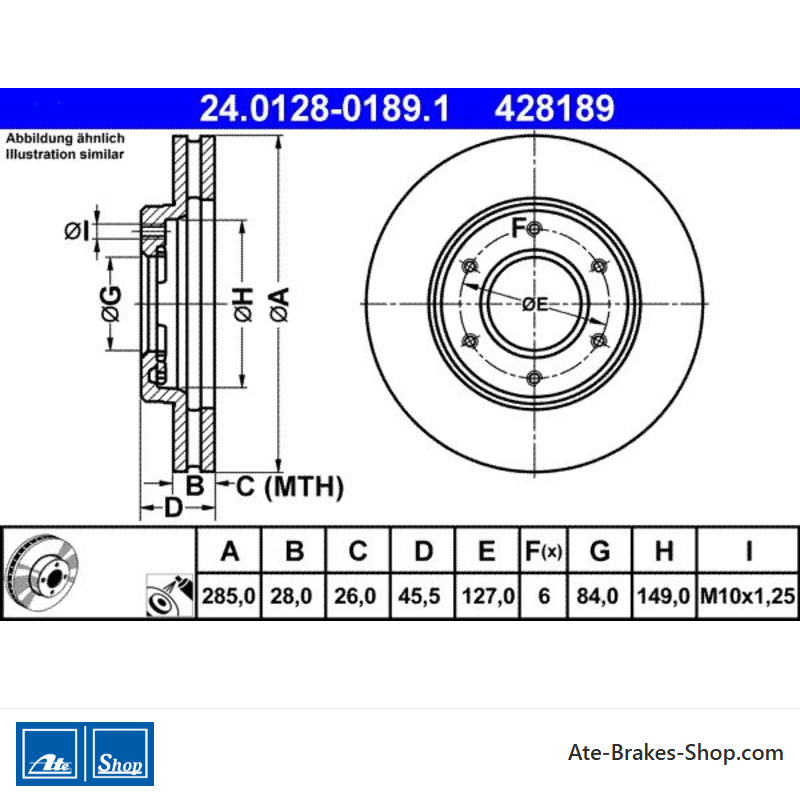

24.0128-0189.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Toyota
- Número de Comercio
- 428189
- País de origen
- Italia
- Altura
- 45,5
- Diámetro exterior [mm]
- 285,0
- Grosor del disco de freno [mm]
- 28,0
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 6
- Diámetro del agujero del perno [mm]
- 127,0
- Diámetro de centrado [mm]
- 84,0
- Diámetro interior [mm]
- 149,0
- Tamaño del hilo
- M10x1,25
- Espesor mínimo [mm]
- 26,0
Referencias específicas
- ean13
- 4006633292726
- MPN
- 2401280189102
ATE 24.0128-0189.1
(240128-01891)
- Diámetro exterior [mm]: 285,0
- Diámetro interior [mm]: 149,0
- Grosor del disco de freno [mm]: 28,0
- Número de agujeros de perno: 6
- 2 piezas de disco de freno
- Número de intercambio: 428189
