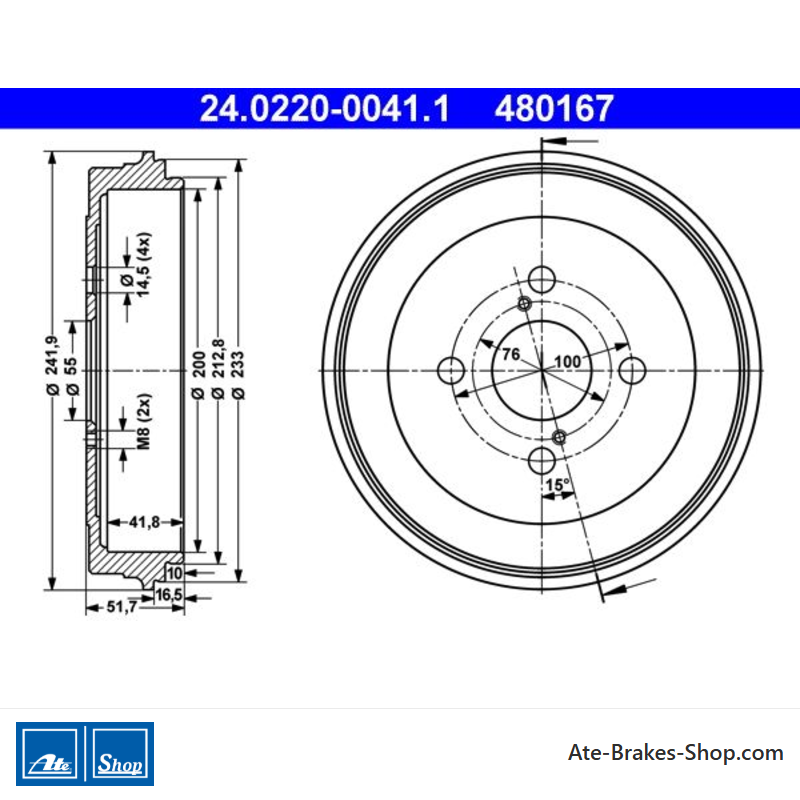

ATE Tambor de freno original de 2 piezas (24022000411) para Toyota
83,49 €
(impuestos inc.)
69,00 € fiscales excl.
Número de parte:
ATE 24.0220-0041.1
(240220-00411)
- Diámetro exterior [mm]: 242,0
- Diámetro interior [mm]: 200,0
- Diámetro de la placa de soporte [mm]: 55,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480167
- Código Ean: 4006633126199
- Peso: 8.78kg
Specification of ATE 24.0220-0041.1 / 240220-00411 / 24022000411:
| OE Number | Reference info |
| TOYOTA 42431-52021 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-52020 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA YARIS (_P1_) Construction Year from 200304 Construction Year to 200508 Vehicle Production Country Japan Fitting Position Rear Axle | 2003-03 - 2005-09 | 48 | 65 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200303 Vehicle Production Country Japan Fitting Position Rear Axle | 1999-04 - 2005-09 | 50 | 68 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200410 Vehicle Production Country Japan Fitting Position Rear Axle | 1999-08 - 2005-11 | 63 | 86 | 1299 | Hatchback |
| TOYOTA YARIS VERSO (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2002-11 - 2005-09 | 62 | 84 | 1299 | MPV |
| TOYOTA YARIS VERSO (_P2_) Construction Year from 199911 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-08 - 2002-10 | 63 | 86 | 1299 | MPV |
| TOYOTA YARIS VERSO (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-03 - 2005-09 | 77 | 105 | 1497 | MPV |
| TOYOTA YARIS VERSO (_P2_) Construction Year to 200303 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-03 - 2005-09 | 78 | 106 | 1497 | MPV |
| TOYOTA YARIS VERSO (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-09 - 2005-09 | 55 | 75 | 1364 | MPV |
| TOYOTA YARIS VERSO VAN (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2003-04 - 2005-09 | 62 | 84 | 1299 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-03 - 2005-09 | 63 | 86 | 1299 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-03 - 2003-03 | 78 | 106 | 1497 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2001-10 - 2005-09 | 55 | 75 | 1364 | Hatchback Van |
24.0220-0041.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Toyota
- Número de Comercio
- 480167
- País de origen
- China
- Altura
- 51,7
- Diámetro exterior [mm]
- 242,0
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 55,0
- Diámetro interior [mm]
- 200,0
- Diámetro del diámetro del diámetro [mm]
- 14,5
- Max. Dimensión de perforación [mm]
- 201,0
- Altura interior del tambor de freno [mm]
- 41,8
Referencias específicas
- ean13
- 4006633126199
- MPN
- 2402200041102
ATE 24.0220-0041.1
(240220-00411)
- Diámetro exterior [mm]: 242,0
- Diámetro interior [mm]: 200,0
- Diámetro de la placa de soporte [mm]: 55,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480167
