ATE Originele 2-delige remtrommel (24022000411) voor Toyota
€ 83,49
(incl. btw)
€ 69,00 belastingexcl.
Onderdeelnummer:
ATE 24.0220-0041.1
(240220-00411)
- Buitendiameter [mm]: 242,0
- Binnendiameter [mm]: 200,0
- Draagplaatdiameter [mm]: 55,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480167
- Ean Code: 4006633126199
- Gewicht: 8.78kg
Specification of ATE 24.0220-0041.1 / 240220-00411 / 24022000411:
| OE Number | Reference info |
| TOYOTA 42431-52021 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-52020 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA YARIS (_P1_) Construction Year from 200304 Construction Year to 200508 Vehicle Production Country Japan Fitting Position Rear Axle | 2003-03 - 2005-09 | 48 | 65 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200303 Vehicle Production Country Japan Fitting Position Rear Axle | 1999-04 - 2005-09 | 50 | 68 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200410 Vehicle Production Country Japan Fitting Position Rear Axle | 1999-08 - 2005-11 | 63 | 86 | 1299 | Hatchback |
| TOYOTA YARIS VERSO (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2002-11 - 2005-09 | 62 | 84 | 1299 | MPV |
| TOYOTA YARIS VERSO (_P2_) Construction Year from 199911 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1999-08 - 2002-10 | 63 | 86 | 1299 | MPV |
| TOYOTA YARIS VERSO (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-03 - 2005-09 | 77 | 105 | 1497 | MPV |
| TOYOTA YARIS VERSO (_P2_) Construction Year to 200303 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-03 - 2005-09 | 78 | 106 | 1497 | MPV |
| TOYOTA YARIS VERSO (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-09 - 2005-09 | 55 | 75 | 1364 | MPV |
| TOYOTA YARIS VERSO VAN (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2003-04 - 2005-09 | 62 | 84 | 1299 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-03 - 2005-09 | 63 | 86 | 1299 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-03 - 2003-03 | 78 | 106 | 1497 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2001-10 - 2005-09 | 55 | 75 | 1364 | Hatchback Van |

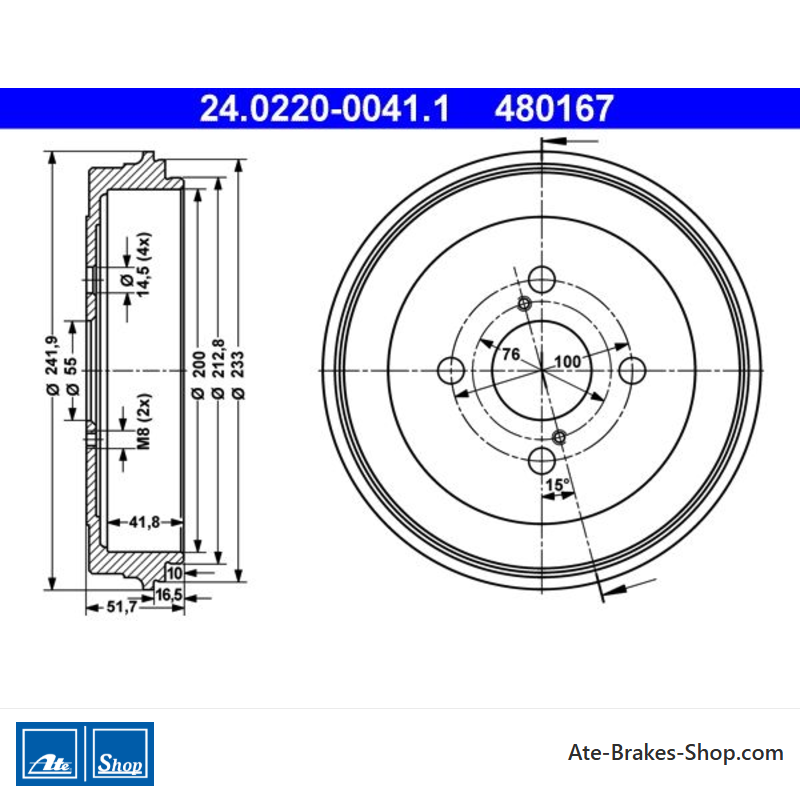

24.0220-0041.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
- Handelsnummer
- 480167
- Land van Herkomst
- China
- Hoogte
- 51,7
- Buitendiameter [mm]
- 242,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 55,0
- Binnendiameter [mm]
- 200,0
- Bordiameter [mm]
- 14,5
- Max. Afborende Dimensie [mm]
- 201,0
- Binnenhoogte van de remtrommel [mm]
- 41,8
Specifieke referenties
- ean13
- 4006633126199
- MPN
- 2402200041102
ATE 24.0220-0041.1
(240220-00411)
- Buitendiameter [mm]: 242,0
- Binnendiameter [mm]: 200,0
- Draagplaatdiameter [mm]: 55,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480167
