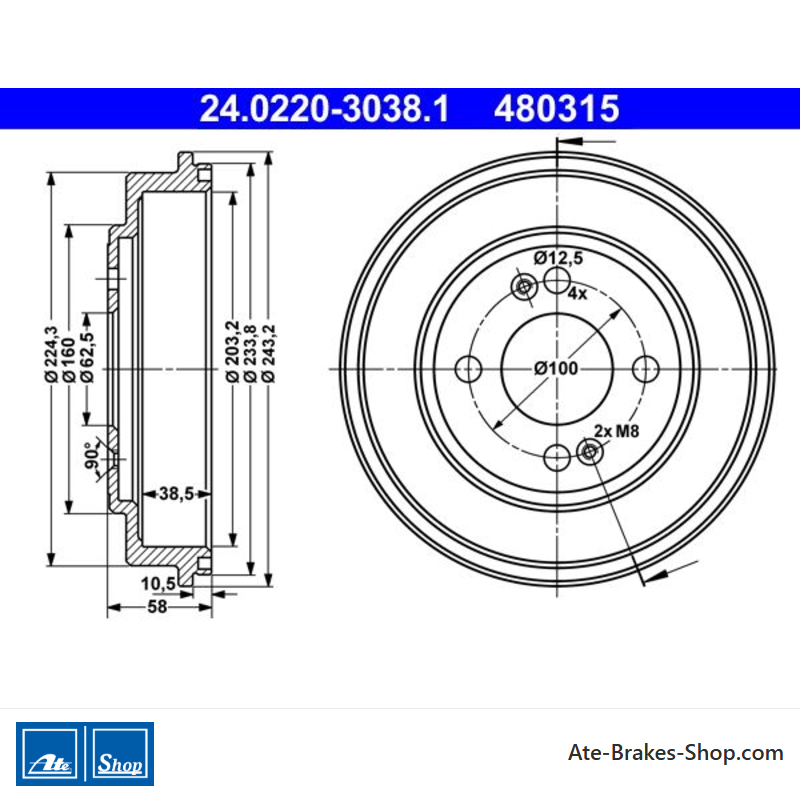

ATE Tambor de freno original de 2 piezas (24022030381) para Hyundai
108,90 €
(impuestos inc.)
90,00 € fiscales excl.
Número de parte:
ATE 24.0220-3038.1
(240220-30381)
- Diámetro exterior [mm]: 243,2
- Diámetro interior [mm]: 203,0
- Diámetro de la placa de soporte [mm]: 62,5
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480315
- Código Ean: 4006633386494
- Peso: 9.15kg
Specification of ATE 24.0220-3038.1 / 240220-30381 / 24022030381:
| OE Number | Reference info |
| HYUNDAI 58411-1C300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI GETZ (TB) Construction Year to 200507 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2002-09 - 2005-09 | 46 | 63 | 1086 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2005-09 - 2009-06 | 49 | 67 | 1086 | Hatchback |
| HYUNDAI GETZ (TB) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2002-09 - 2004-03 | 60 | 82 | 1341 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200504 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2003-09 - 2005-09 | 63 | 85 | 1341 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2005-08 - 2010-12 | 71 | 97 | 1399 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200507 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2002-09 - 2005-09 | 77 | 106 | 1599 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year from 200508 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2005-06 - 2009-06 | 78 | 106 | 1599 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200504 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2003-03 - 2005-09 | 60 | 82 | 1493 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2005-08 - 2009-06 | 65 | 88 | 1493 | Hatchback |
24.0220-3038.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Hyundai
- Número de Comercio
- 480315
- País de origen
- China
- Altura
- 58,0
- Diámetro exterior [mm]
- 243,2
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 62,5
- Diámetro interior [mm]
- 203,0
- Diámetro del diámetro del diámetro [mm]
- 12,5
- Max. Dimensión de perforación [mm]
- 205,2
- Altura interior del tambor de freno [mm]
- 38,5
Referencias específicas
- ean13
- 4006633386494
- MPN
- 2402203038102
ATE 24.0220-3038.1
(240220-30381)
- Diámetro exterior [mm]: 243,2
- Diámetro interior [mm]: 203,0
- Diámetro de la placa de soporte [mm]: 62,5
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480315
