ATE Originele 2-delige remtrommel (24022030381) voor Hyundai
€ 108,90
(incl. btw)
€ 90,00 belastingexcl.
Onderdeelnummer:
ATE 24.0220-3038.1
(240220-30381)
- Buitendiameter [mm]: 243,2
- Binnendiameter [mm]: 203,0
- Draagplaatdiameter [mm]: 62,5
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480315
- Ean Code: 4006633386494
- Gewicht: 9.15kg

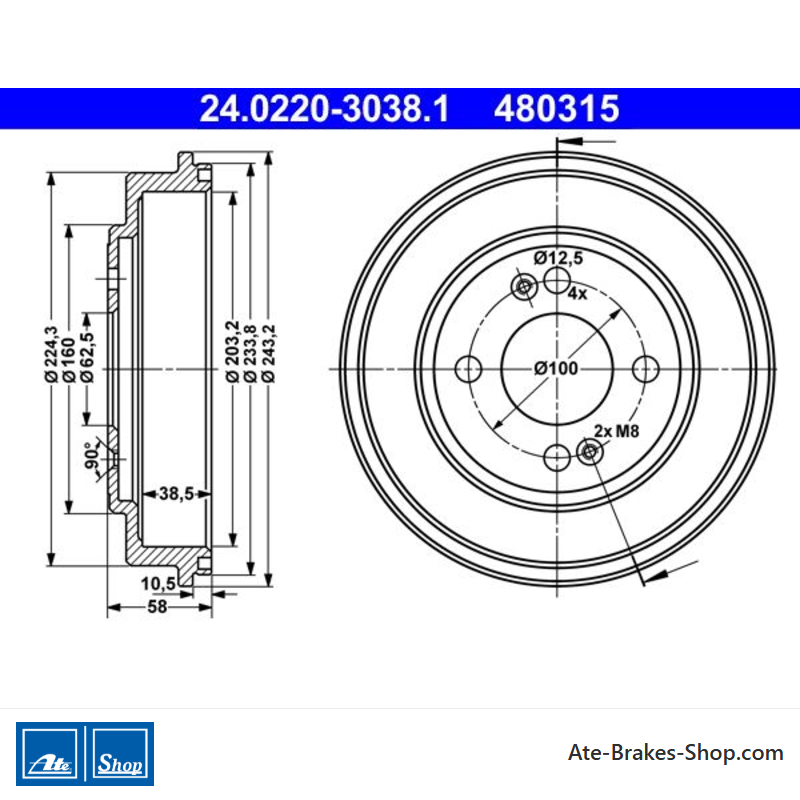

Specification of ATE 24.0220-3038.1 / 240220-30381 / 24022030381:
| OE Number | Reference info |
| HYUNDAI 58411-1C300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI GETZ (TB) Construction Year to 200507 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2002-09 - 2005-09 | 46 | 63 | 1086 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2005-09 - 2009-06 | 49 | 67 | 1086 | Hatchback |
| HYUNDAI GETZ (TB) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2002-09 - 2004-03 | 60 | 82 | 1341 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200504 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2003-09 - 2005-09 | 63 | 85 | 1341 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2005-08 - 2010-12 | 71 | 97 | 1399 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200507 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2002-09 - 2005-09 | 77 | 106 | 1599 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year from 200508 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2005-06 - 2009-06 | 78 | 106 | 1599 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200504 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2003-03 - 2005-09 | 60 | 82 | 1493 | Hatchback |
| HYUNDAI GETZ (TB) Construction Year to 200902 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2005-08 - 2009-06 | 65 | 88 | 1493 | Hatchback |
24.0220-3038.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
- Handelsnummer
- 480315
- Land van Herkomst
- China
- Hoogte
- 58,0
- Buitendiameter [mm]
- 243,2
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 62,5
- Binnendiameter [mm]
- 203,0
- Bordiameter [mm]
- 12,5
- Max. Afborende Dimensie [mm]
- 205,2
- Binnenhoogte van de remtrommel [mm]
- 38,5
Specifieke referenties
- ean13
- 4006633386494
- MPN
- 2402203038102
ATE 24.0220-3038.1
(240220-30381)
- Buitendiameter [mm]: 243,2
- Binnendiameter [mm]: 203,0
- Draagplaatdiameter [mm]: 62,5
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480315
