ATE Tambor de freno original de 2 piezas (24022300121) para Volkswagen (VW)
101,64 €
(impuestos inc.)
84,00 € fiscales excl.
Número de parte:
ATE 24.0223-0012.1
(240223-00121)

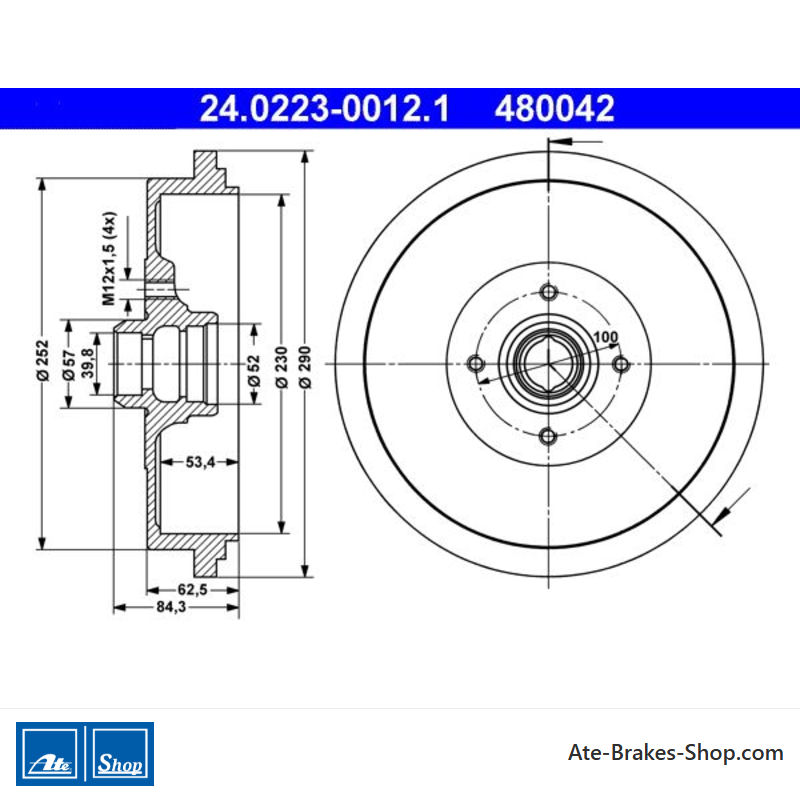

- Diámetro exterior [mm]: 290,0
- Diámetro interior [mm]: 230,0
- Diámetro de la placa de soporte [mm]: 52,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480042
- Código Ean: 4006633144650
- Peso: 18.17kg
Specification of ATE 24.0223-0012.1 / 240223-00121 / 24022300121:
| OE Number | Reference info |
| VAG 357 501 615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 357501615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) from 31-L-085001 Fitting Position Rear Axle | 1988-04 - 1989-07 | 53 | 72 | 1595 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) from 31-L-085001 Fitting Position Rear Axle | 1988-04 - 1992-07 | 55 | 75 | 1595 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1994-10 - 1996-08 | 74 | 101 | 1595 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1990-08 - 1996-08 | 55 | 75 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Rear Axle | 1990-08 - 1996-08 | 55 | 75 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 198804 Construction Year to 199310 Fitting Position Rear Axle | 1988-02 - 1996-08 | 66 | 90 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Rear Axle | 1988-02 - 1996-08 | 66 | 90 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1988-08 - 1993-09 | 59 | 80 | 1588 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1989-05 - 1993-10 | 50 | 68 | 1896 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1991-03 - 1996-08 | 55 | 75 | 1896 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Rear Axle | 1991-03 - 1996-08 | 55 | 75 | 1896 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) to 3A-S-300000 Fitting Position Rear Axle | 1993-10 - 1996-08 | 66 | 90 | 1896 | Saloon |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199410 Fitting Position Rear Axle | 1994-07 - 1995-12 | 74 | 101 | 1595 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1990-08 - 1997-05 | 55 | 75 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Rear Axle | 1990-08 - 1997-05 | 55 | 75 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 198804 Construction Year to 199310 Fitting Position Rear Axle | 1988-02 - 1997-05 | 66 | 90 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Rear Axle | 1988-02 - 1997-05 | 66 | 90 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Rear Axle | 1988-08 - 1993-10 | 59 | 80 | 1588 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Rear Axle | 1989-05 - 1993-10 | 50 | 68 | 1896 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Rear Axle | 1991-03 - 1997-05 | 55 | 75 | 1896 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1991-03 - 1997-05 | 55 | 75 | 1896 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Vehicle Identification Number (VIN) to 3A-S-300000 Fitting Position Rear Axle | 1993-10 - 1997-05 | 66 | 90 | 1896 | Estate |
24.0223-0012.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Volkswagen (VW)
- Número de Comercio
- 480042
- País de origen
- China
- Información adicional
- sin anillo sensor ABS
sin rodamientos de rueda - Altura
- 84,3
- Diámetro exterior [mm]
- 290,0
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 52,0
- Diámetro interior [mm]
- 230,0
- Tamaño del hilo
- M12x1,5
- Max. Dimensión de perforación [mm]
- 231,5
- Altura interior del tambor de freno [mm]
- 53,4
- Diámetro interior del tambor de freno [mm]
- 39,8
Referencias específicas
- ean13
- 4006633144650
- MPN
- 2402230012102
ATE 24.0223-0012.1
(240223-00121)
- Diámetro exterior [mm]: 290,0
- Diámetro interior [mm]: 230,0
- Diámetro de la placa de soporte [mm]: 52,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480042
