ATE Originele 2-delige remtrommel (24022300121) voor Volkswagen (VW)
€ 101,64
(incl. btw)
€ 84,00 belastingexcl.
Onderdeelnummer:
ATE 24.0223-0012.1
(240223-00121)
- Buitendiameter [mm]: 290,0
- Binnendiameter [mm]: 230,0
- Draagplaat diameter [mm]: 52,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480042
- Ean Code: 4006633144650
- Gewicht: 18.17kg
Specification of ATE 24.0223-0012.1 / 240223-00121 / 24022300121:
| OE Number | Reference info |
| VAG 357 501 615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 357501615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) from 31-L-085001 Fitting Position Rear Axle | 1988-04 - 1989-07 | 53 | 72 | 1595 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) from 31-L-085001 Fitting Position Rear Axle | 1988-04 - 1992-07 | 55 | 75 | 1595 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1994-10 - 1996-08 | 74 | 101 | 1595 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1990-08 - 1996-08 | 55 | 75 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Rear Axle | 1990-08 - 1996-08 | 55 | 75 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 198804 Construction Year to 199310 Fitting Position Rear Axle | 1988-02 - 1996-08 | 66 | 90 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Rear Axle | 1988-02 - 1996-08 | 66 | 90 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1988-08 - 1993-09 | 59 | 80 | 1588 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1989-05 - 1993-10 | 50 | 68 | 1896 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1991-03 - 1996-08 | 55 | 75 | 1896 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Rear Axle | 1991-03 - 1996-08 | 55 | 75 | 1896 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) to 3A-S-300000 Fitting Position Rear Axle | 1993-10 - 1996-08 | 66 | 90 | 1896 | Saloon |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199410 Fitting Position Rear Axle | 1994-07 - 1995-12 | 74 | 101 | 1595 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1990-08 - 1997-05 | 55 | 75 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Rear Axle | 1990-08 - 1997-05 | 55 | 75 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 198804 Construction Year to 199310 Fitting Position Rear Axle | 1988-02 - 1997-05 | 66 | 90 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Rear Axle | 1988-02 - 1997-05 | 66 | 90 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Rear Axle | 1988-08 - 1993-10 | 59 | 80 | 1588 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Rear Axle | 1989-05 - 1993-10 | 50 | 68 | 1896 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Rear Axle | 1991-03 - 1997-05 | 55 | 75 | 1896 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1991-03 - 1997-05 | 55 | 75 | 1896 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Vehicle Identification Number (VIN) to 3A-S-300000 Fitting Position Rear Axle | 1993-10 - 1997-05 | 66 | 90 | 1896 | Estate |

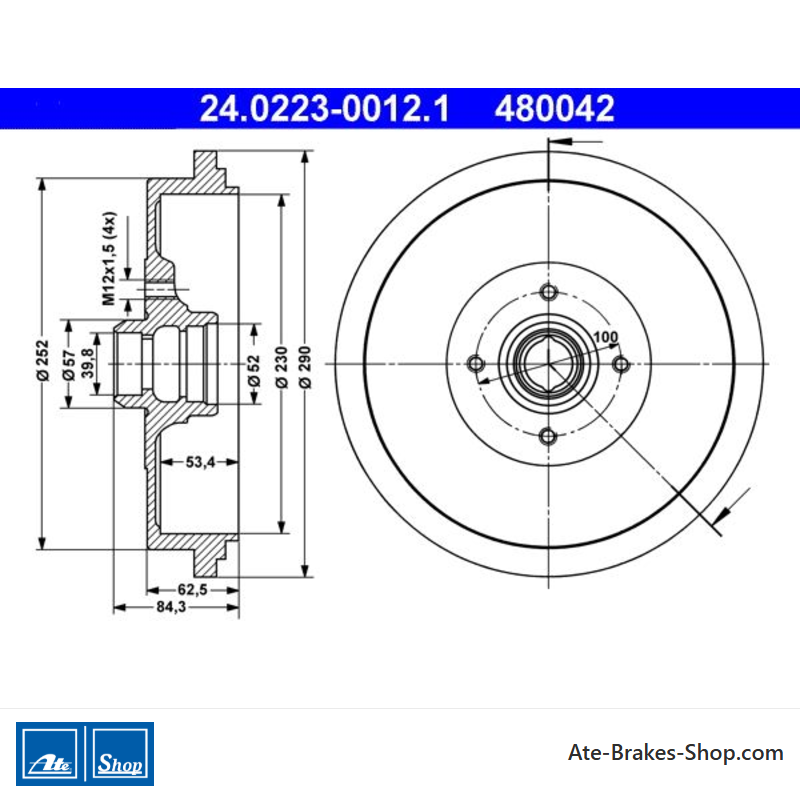

24.0223-0012.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 480042
- Land van Herkomst
- China
- Aanvullende informatie
- zonder ABS-sensorring
zonder wiellager - Hoogte
- 84,3
- Buitendiameter [mm]
- 290,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 52,0
- Binnendiameter [mm]
- 230,0
- Draadmaat
- M12x1,5
- Max. Afborende Dimensie [mm]
- 231,5
- Binnenhoogte van de remtrommel [mm]
- 53,4
- Remtrommel binnendiameter [mm]
- 39,8
Specifieke referenties
- ean13
- 4006633144650
- MPN
- 2402230012102
ATE 24.0223-0012.1
(240223-00121)
- Buitendiameter [mm]: 290,0
- Binnendiameter [mm]: 230,0
- Draagplaat diameter [mm]: 52,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480042
