ATE Disco de freno original de 2 piezas (24010901212) para Citroën
87,12 €
(impuestos inc.)
72,00 € fiscales excl.
Número de parte:
ATE 24.0109-0121.2
(240109-01212)
- Diámetro exterior [mm]: 224,0
- Diámetro interior [mm]: 135,0
- Grosor del disco de freno [mm]: 9,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 409121
Información logística:
- Código Ean: 4006633147309
- Peso: 5.46kg
Specification of ATE 24.0109-0121.2 / 240109-01212 / 24010901212:
| OE Number | Reference info |
| CITROËN 95 661 814 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 95661814 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 95 030 547 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 95030547 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246 T3 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246T3 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-06 | 89 | 121 | 1998 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-06 | 94 | 128 | 1998 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1992-09 - 1994-06 | 104 | 141 | 1998 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-06 | 123 | 167 | 2963 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1990-07 - 1994-06 | 147 | 200 | 2963 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-05 | 123 | 167 | 2975 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-06 | 60 | 82 | 2138 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-06 | 80 | 109 | 2088 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 97 | 132 | 1998 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 108 | 147 | 1998 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1997-04 - 2000-10 | 140 | 190 | 2946 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 123 | 167 | 2963 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 147 | 200 | 2963 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 80 | 109 | 2088 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 95 | 129 | 2446 | Hatchback |

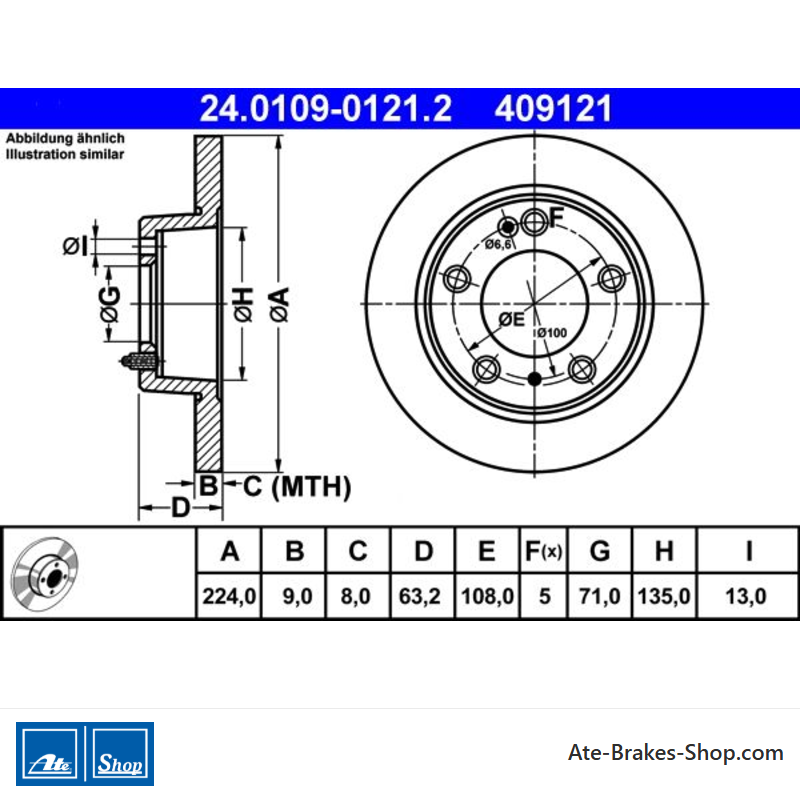

24.0109-0121.2
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Citroën
- Número de Comercio
- 409121
- País de origen
- Italia
- Altura
- 63,2
- Diámetro exterior [mm]
- 224,0
- Grosor del disco de freno [mm]
- 9,0
- Tipo de disco de freno
- sólido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 108,0
- Diámetro de centrado [mm]
- 71,0
- Diámetro interior [mm]
- 135,0
- Diámetro del diámetro del diámetro [mm]
- 13,0
- Espesor mínimo [mm]
- 8,0
Referencias específicas
- ean13
- 4006633147309
- MPN
- 2401090121201
ATE 24.0109-0121.2
(240109-01212)
- Diámetro exterior [mm]: 224,0
- Diámetro interior [mm]: 135,0
- Grosor del disco de freno [mm]: 9,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 409121
