ATE Originele 2-delige remschijf (24010901212) voor Citroën
€ 87,12
(incl. btw)
€ 72,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0121.2
(240109-01212)
- Buitendiameter [mm]: 224,0
- Binnendiameter [mm]: 135,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409121
Logistieke informatie:
- Ean Code: 4006633147309
- Gewicht: 5.46kg
Specification of ATE 24.0109-0121.2 / 240109-01212 / 24010901212:
| OE Number | Reference info |
| CITROËN 95 661 814 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 95661814 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 95 030 547 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 95030547 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246 T3 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246T3 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-06 | 89 | 121 | 1998 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-06 | 94 | 128 | 1998 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1992-09 - 1994-06 | 104 | 141 | 1998 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-06 | 123 | 167 | 2963 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1990-07 - 1994-06 | 147 | 200 | 2963 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-05 | 123 | 167 | 2975 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-06 | 60 | 82 | 2138 | Hatchback |
| CITROËN XM (Y3) Fitting Position Rear Axle | 1989-05 - 1994-06 | 80 | 109 | 2088 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 97 | 132 | 1998 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 108 | 147 | 1998 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1997-04 - 2000-10 | 140 | 190 | 2946 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 123 | 167 | 2963 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 147 | 200 | 2963 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 80 | 109 | 2088 | Hatchback |
| CITROËN XM (Y4) Fitting Position Rear Axle | 1994-05 - 2000-10 | 95 | 129 | 2446 | Hatchback |

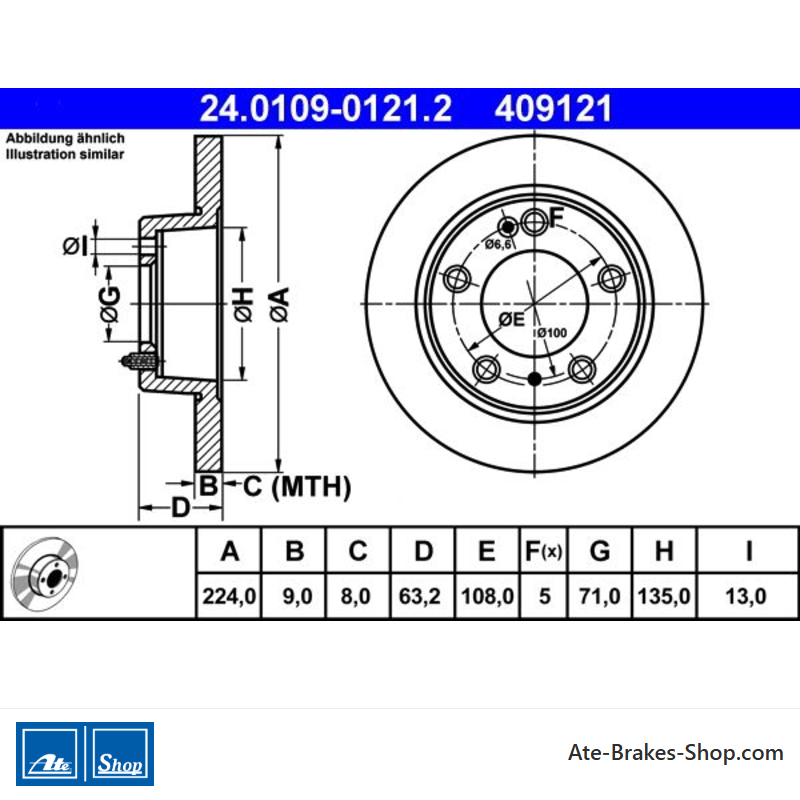

24.0109-0121.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Citroën
- Handelsnummer
- 409121
- Land van Herkomst
- Italië
- Hoogte
- 63,2
- Buitendiameter [mm]
- 224,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 71,0
- Binnendiameter [mm]
- 135,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633147309
- MPN
- 2401090121201
ATE 24.0109-0121.2
(240109-01212)
- Buitendiameter [mm]: 224,0
- Binnendiameter [mm]: 135,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409121
