ATE Disco de freno original (24011101002) para Renault
228,69 €
(impuestos inc.)
189,00 € fiscales excl.
Número de parte:
ATE 24.0111-0100.2
(240111-01002)
- Diámetro exterior [mm]: 300,0
- Diámetro interior [mm]: 52,3
- Grosor del disco de freno [mm]: 11,0
- Número de agujeros de perno: 5
- Número comercial: 411100
Información logística:
- Código Ean: 4006633322874
- Peso: 8.81kg
Specification of ATE 24.0111-0100.2 / 240111-01002 / 24011101002:
| OE Number | Reference info |
| RENAULT 82 00 244 108 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200244108 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 649 353 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200649353 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 002 874 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200002874 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 86 71 018 264 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8671018264 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 40 20 216 51R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 402021651R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 43 20 290 79R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 432029079R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 43 20 259 45R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 432025945R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 86 60 001 816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8660001816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2015-12 | 98 | 133 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2015-01 | 100 | 136 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2006-02 | 120 | 163 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-04 - 2015-12 | 125 | 170 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2015-12 | 177 | 241 | 3498 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2003-04 - 2005-02 | 85 | 116 | 1870 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2015-01 | 88 | 120 | 1870 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-01 - 2015-12 | 96 | 131 | 1995 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-01 - 2015-12 | 110 | 150 | 1995 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-01 - 2015-12 | 127 | 173 | 1995 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-02 - 2015-12 | 102 | 139 | 2188 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2006-08 | 110 | 150 | 2188 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-09 - 2015-01 | 120 | 163 | 2958 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2006-08 | 130 | 177 | 2958 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-01 - 2015-01 | 133 | 181 | 2958 | MPV |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle Construction Year from 200209 | 2002-06 - 2009-08 | 120 | 163 | 1998 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2009-08 | 125 | 170 | 1998 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-10 - 2009-08 | 170 | 231 | 3498 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-06 - 2009-08 | 177 | 241 | 3498 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-08 - 2009-08 | 110 | 150 | 1995 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-01 - 2009-08 | 127 | 173 | 1995 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-12 - 2009-08 | 83 | 113 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-06 - 2005-09 | 85 | 116 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Construction Year to 200912 Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-09 - 2009-08 | 102 | 140 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle Construction Year from 200209 | 2002-06 - 2009-08 | 110 | 150 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle Construction Year from 200209 | 2002-06 - 2006-06 | 130 | 177 | 2958 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2009-08 | 133 | 181 | 2958 | Hatchback |

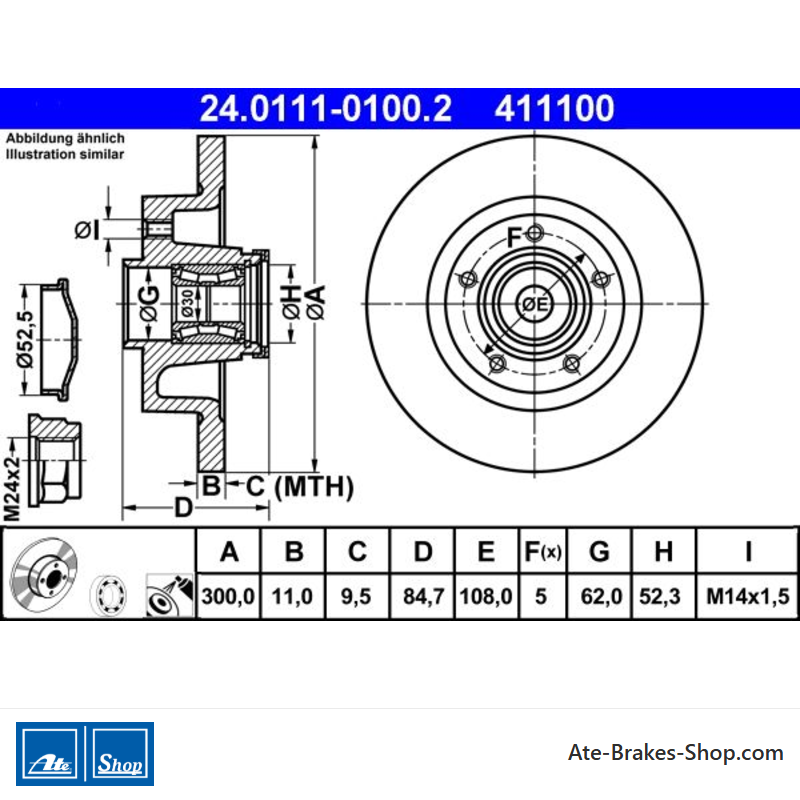

24.0111-0100.2
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Renault
- Número de Comercio
- 411100
- País de origen
- Italia
- Información adicional
- con anillo sensor ABS
con rodamiento de rueda - Altura
- 84,7
- Diámetro exterior [mm]
- 300,0
- Grosor del disco de freno [mm]
- 11,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 108,0
- Diámetro de la placa de soporte [mm]
- 30
- Diámetro de centrado [mm]
- 62,0
- Diámetro interior [mm]
- 52,3
- Tamaño del hilo
- M14x1,5
- Espesor mínimo [mm]
- 9,5
Referencias específicas
- ean13
- 4006633322874
- MPN
- 2401110100202
ATE 24.0111-0100.2
(240111-01002)
- Diámetro exterior [mm]: 300,0
- Diámetro interior [mm]: 52,3
- Grosor del disco de freno [mm]: 11,0
- Número de agujeros de perno: 5
- Número comercial: 411100
