ATE Originele remschijf (24011101002) voor Renault
€ 228,69
(incl. btw)
€ 189,00 belastingexcl.
Onderdeelnummer:
ATE 24.0111-0100.2
(240111-01002)
- Buitendiameter [mm]: 300,0
- Binnendiameter [mm]: 52,3
- Remschijfdikte [mm]: 11,0
- Aantal bolt holes: 5
- Handelsnummer: 411100
Logistieke informatie:
- Ean Code: 4006633322874
- Gewicht: 8.81kg
Specification of ATE 24.0111-0100.2 / 240111-01002 / 24011101002:
| OE Number | Reference info |
| RENAULT 82 00 244 108 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200244108 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 649 353 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200649353 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 002 874 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200002874 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 86 71 018 264 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8671018264 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 40 20 216 51R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 402021651R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 43 20 290 79R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 432029079R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 43 20 259 45R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 432025945R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 86 60 001 816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8660001816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2015-12 | 98 | 133 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2015-01 | 100 | 136 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2006-02 | 120 | 163 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-04 - 2015-12 | 125 | 170 | 1998 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2015-12 | 177 | 241 | 3498 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2003-04 - 2005-02 | 85 | 116 | 1870 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2015-01 | 88 | 120 | 1870 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-01 - 2015-12 | 96 | 131 | 1995 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-01 - 2015-12 | 110 | 150 | 1995 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-01 - 2015-12 | 127 | 173 | 1995 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-02 - 2015-12 | 102 | 139 | 2188 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2006-08 | 110 | 150 | 2188 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-09 - 2015-01 | 120 | 163 | 2958 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-11 - 2006-08 | 130 | 177 | 2958 | MPV |
| RENAULT ESPACE IV (JK0/1_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-01 - 2015-01 | 133 | 181 | 2958 | MPV |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle Construction Year from 200209 | 2002-06 - 2009-08 | 120 | 163 | 1998 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-04 - 2009-08 | 125 | 170 | 1998 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-10 - 2009-08 | 170 | 231 | 3498 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-06 - 2009-08 | 177 | 241 | 3498 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2005-08 - 2009-08 | 110 | 150 | 1995 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-01 - 2009-08 | 127 | 173 | 1995 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-12 - 2009-08 | 83 | 113 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2002-06 - 2005-09 | 85 | 116 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Construction Year to 200912 Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2004-09 - 2009-08 | 102 | 140 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle Construction Year from 200209 | 2002-06 - 2009-08 | 110 | 150 | 2188 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle Construction Year from 200209 | 2002-06 - 2006-06 | 130 | 177 | 2958 | Hatchback |
| RENAULT VEL SATIS (BJ0_) Stub Axle Diameter [mm] 30 mm Fitting Position Rear Axle | 2006-06 - 2009-08 | 133 | 181 | 2958 | Hatchback |

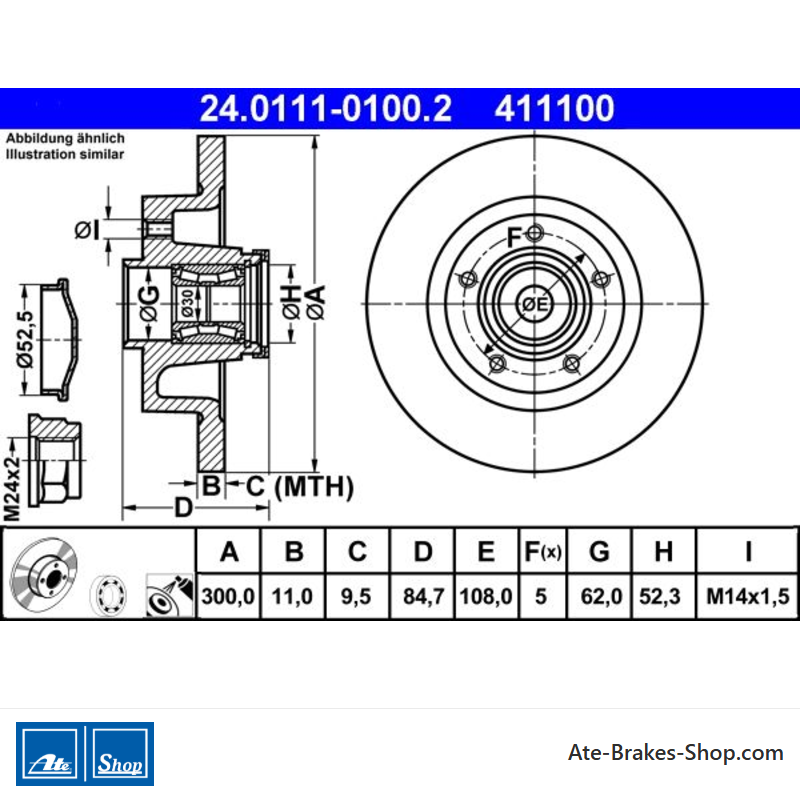

24.0111-0100.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Renault
- Handelsnummer
- 411100
- Land van Herkomst
- Italië
- Aanvullende informatie
- met ABS-sensorring
met wiellager - Hoogte
- 84,7
- Buitendiameter [mm]
- 300,0
- Remschijfdikte [mm]
- 11,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 108,0
- Diameter van de ondersteuningsplaat [mm]
- 30
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 52,3
- Draadmaat
- M14x1,5
- Minimale dikte [mm]
- 9,5
Specifieke referenties
- ean13
- 4006633322874
- MPN
- 2401110100202
ATE 24.0111-0100.2
(240111-01002)
- Buitendiameter [mm]: 300,0
- Binnendiameter [mm]: 52,3
- Remschijfdikte [mm]: 11,0
- Aantal bolt holes: 5
- Handelsnummer: 411100
